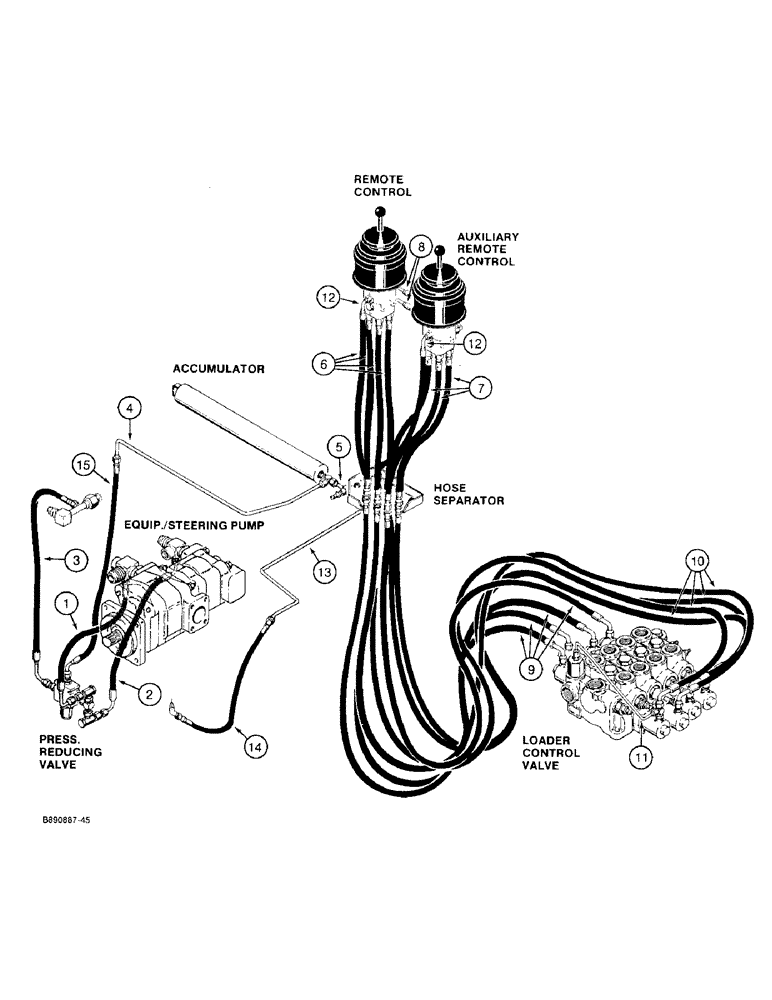

Запчасти Case 721 (1-22) - PICTORIAL INDEX, HYDRAULIC CIRCUIT - FOUR SPOOL VALVE,STEERING PUMP TO LOADER CONTROL VALVE (00) - PICTORIAL INDEX

1

Hose, tee at steering pump to pressure reducing valve, Page 8-69

1шт.

2

Hose, fitting at steering pump to pressure reducing valve, Page 8-69

1шт.

3

Hose, pressure reducing valve to return tube, Page 8-69

1шт.

4

Tube, hose at pressure reducing valve to tee at accumulator, Page 8-69

1шт.

5

Formed tube, accumulator to hose separator, Page 8-69

1шт.

6

Hose, remote control to hose separator ports 1A, 1B, 2A, and 2B, Page 8-65

1шт.

7

Hose, auxiliary remote control to hose separator port 3A, 3B, 4A, and 4B, Page 8-65

1шт.

8

Hose, auxiliary remote control to remote control, Page 8-65

1шт.

9

Hose, hose separator to ports 1B, 2A, 3B, and 4B, Page 8-67

1шт.

10

Hose, hose separator to ports 1A, 2B, 3A, and 4A, Page 8-67

1шт.

11

Formed tube, inlet and outlet section to tee at port 1A, Page 8-67

1шт.

12

Hose, remote control to hose separator, hydraulic reservoir and pressure reducing valve ports, Page 8-65

1шт.

13

Formed tube, hose separator to hose at hydraulic reservoir, Page 8-69

1шт.

14

Hose, formed tube to hydraulic reservoir, Page 8-69

1шт.

15

Hose, pressure reducing valve to tube at accumulator, Page 8-69

1шт.
