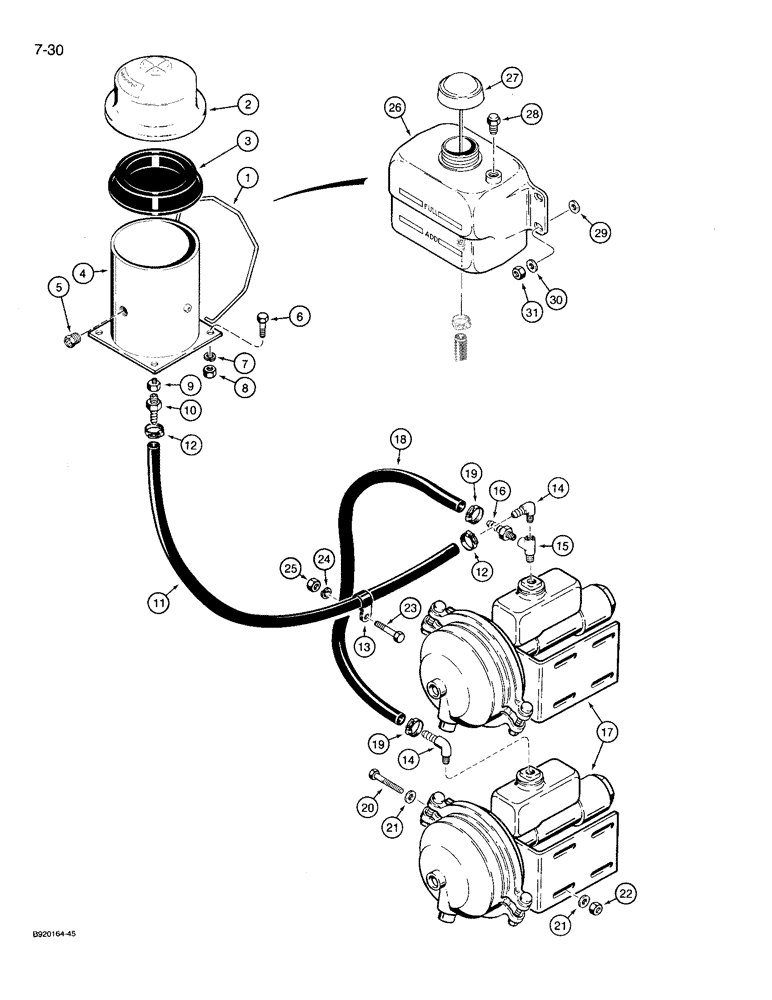

Запчасти Case 721 (7-30) - BRAKE FLUID RESERVOIR TO BRAKE ACTUATORS (07) - BRAKES

L124318

RESERVOIR

ASSEMBLY - brake fluid, if used, Includes: Ref. 1 - 5

1шт.

1

S300004

RETAINER

- cover, wire

1шт.

2

S300003

COVER

- reservoir

1шт.

3

S300002

DIAPHRAGM

- reservoir

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - reservoir

1шт.

5

S300005

DIPSTICK

FITTING - indicator, fluid level

1шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, Used with Ref. 4, body

2шт.

7

492-11038

LOCK WASHER,3/8"

used with Ref. 4, body 3/8"

2шт.

8

425-106

NUT,3/8"-16, Cl 5

Used with Ref. 4, body 3/8"-16, G5

2шт.

9

221-1086

REDUCER,3/8" NPT x 1/4" NPT

- 3/8 x 1/4 inch PT, used with Ref. 4, body

1шт.

10

217-119

FITTING,1/4" Hose x 1/4" NPTF, Barbed

ADAPTER - straight, 1/4 inch barb end x 1/4 inch PT, used with Ref. 4, body

1шт.

11

L128937

HOSE,6.4 mm ID x 960.00 mm, SAE J1403

Actuator Supply 6.4 mm ID x 960.00 mm, SAE J1403

1шт.

12

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

2шт.

13

49838

CLAMP

- mounting, hose

1шт.

14

217-294

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/4" Male NPTF

ELBOW - 90 degree, 1/4 inch barb end x 1/4 inch PT

2шт.

15

217-1062

TEE,1/8" - 18 Female x 1/4" - 18 Male Run

- 1/4 inch PT female branch x male run x female run

1шт.

16

217-119

FITTING,1/4" Hose x 1/4" NPTF, Barbed

ADAPTER - straight, 1/4 inch barb end x 1/4 inch PT

1шт.

17

L125170

CYLINDER

ACTUATOR ASSEMBLY - brake, parts list Figure 7-48

2шт.

18

L129088

HOSE,6.4 mm ID x 394.00 mm, SAE J1403A

1шт.

19

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

2шт.

20

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

21

D41740

WASHER

- flat, 25/64 x 1 x 7/64 inch, hardened

8шт.

22

425-106

NUT,3/8"-16, Cl 5

4шт.

23

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

24

492-11038

LOCK WASHER,3/8"

1шт.

25

425-106

NUT,3/8"-16, Cl 5

1шт.

26

L127739

RESERVOIR

- brake fluid, if used

1шт.

27

L127742

CAP

- reservoir, with tether, used with Ref. 26, reservoir

1шт.

28

L129154

FITTING

BREATHER - reservoir, used with Ref. 26, reservoir

1шт.

29

S95569

WASHER

- flat, special, hardened, used with Ref. 26, reservoir

4шт.

30

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64"), Used with Ref. 26, reservoir 5/16"

4шт.

31

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC, used with Ref. 26, reservoir

4шт.
