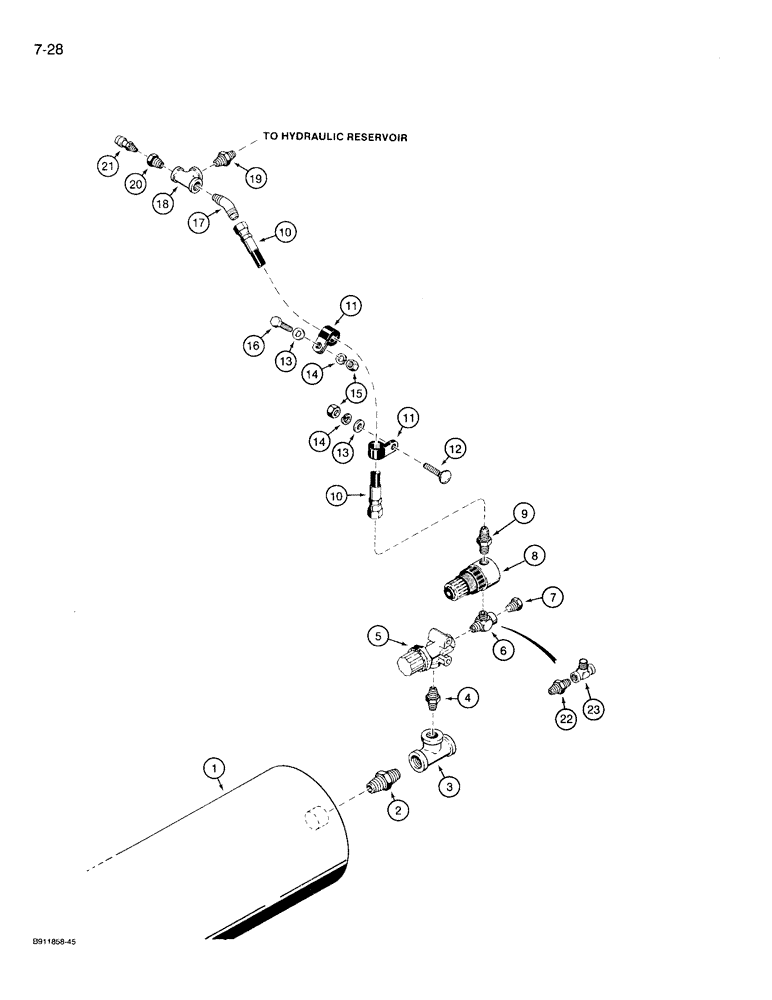

Запчасти Case 721 (7-28) - AIR RESERVOIR TO HYDRAULIC RESERVOIR (07) - BRAKES

1

L14823

TANK

RESERVOIR - air, brake system

1шт.

2

217-196

FITTING,1/2" - 14 Male NPTF x 1/2" - 14 Male NPTF

NIPPLE - straight, 1/2 PT x 1-7/8 inch

1шт.

3

217-14

TEE,1/2"-14 NPTF Fem

- pipe, 1/2 inch

1шт.

4

217-63

REDUCER,1/2"-14 NPTF x 1/4"-18 NPTF

NIPPLE - 1/2 PT x 1/4 inch PT

1шт.

5

L13530

VALVE

ASSEMBLY - pressure protection, parts list Figure 7-46

1шт.

6

217-1175

TEE,1/8"-27 Male x 1/8"-27 Female Run

- 1/4 inch PT branch x male PT x fem PT, if used

1шт.

7

217-86

PLUG,Hex Hd, 1/4"-18, Brass

- hex, 1/4 inch PT

1шт.

8

L112300

VALVE

ASSEMBLY - pressure reducing, brake, parts list Figure 7-46

1шт.

9

218-865

HYD CONNECTOR,1/4", Tube x 1/4" NPTF, 37 Degree, Brass

ADAPTER - straight, 7/16-20 flare x 1/4 inch PT

1шт.

10

L103355

HOSE,0.25" ID x 50.00", SAE J1402C Type A

to Hydraulic Reservoir 0.25" ID x 50.00", SAE J1402C Type A

1шт.

11

49885

CLAMP

- mounting, hose

2шт.

12

111-320

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

1шт.

13

495-21044

WASHER,3/8"

(flat, 7/16) 3/8"

2шт.

14

492-11038

LOCK WASHER,3/8"

2шт.

15

425-106

NUT,3/8"-16, Cl 5

2шт.

16

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

1шт.

17

218-898

ELBOW,45 Degree, 1/4" NPTF x 7/16", 37 Degree

- 45 degree, 7/16-20 flare x 1/4 inch PT

1шт.

18

217-11

TEE,1/4"-18 NPTF Fem

- pipe, 1/4 inch

1шт.

19

217-201

PIPE,Nipple, 1/4" NPT x 15/16"

NIPPLE - straight, 1/4 PT x 15/16 inch

1шт.

20

217-40

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

- 1/4 PT x 1/8 inch PT

1шт.

21

D38663

VENT

VALVE - relief, hydraulic reservoir

1шт.

22

217-195

FITTING,1/4" - 18 Male NPTF x 1/4" - 18 Male NPTF

NIPPLE - hex, 1/4 inch PT, if used

1шт.

23

217-56

TEE,1/4"-18 NPTF Fem Run x 1/4"-18 NPTF Male Br

- 1/4 inch PT branch x female PT x female PT, if used

1шт.
