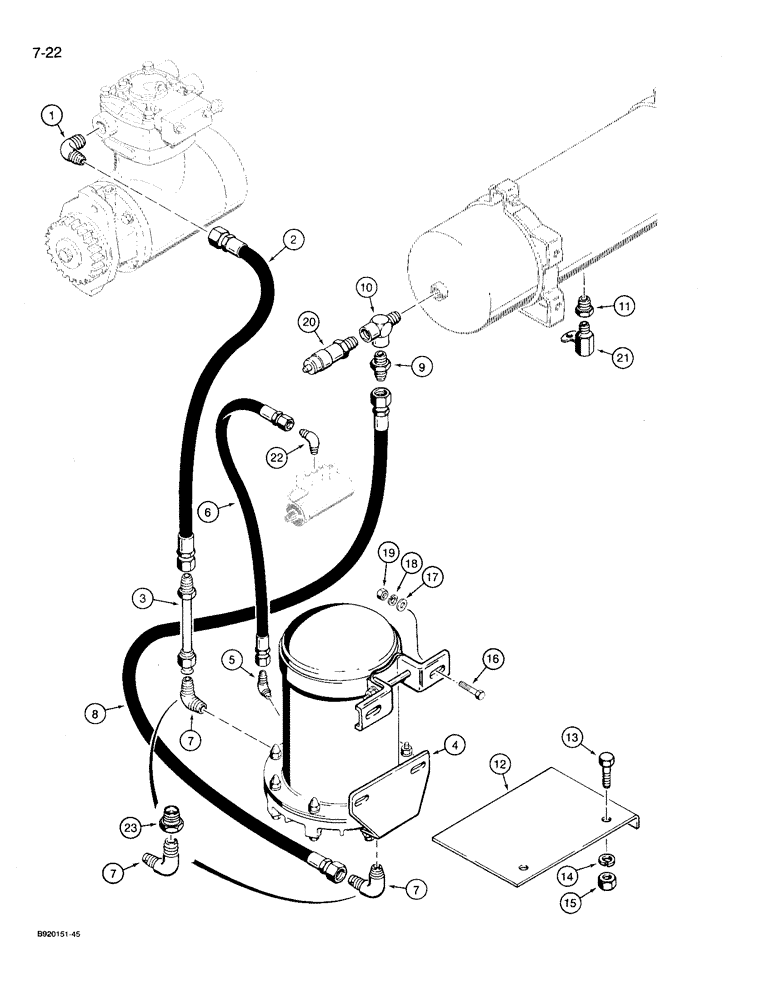

Запчасти Case 721 (7-22) - AIR DRYER SYSTEM, WITH AIR DRYER MOUNTED ON REAR FRAME (07) - BRAKES

1

218-884

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/2", NPTF, Brass

- 90 degree, 3/4-16 flare x 1/2 inch PT

1шт.

2

L125668

HOSE ASSY.

HOSE - 700 mm long, supply, air dryer

1шт.

3

L125711

TUBE,12.7 mm OD x 139.7 mm L

- supply hose to air dryer

1шт.

4

L128082

ACCESSORIES

DRYER ASSEMBLY - air, brake, production, for service order S301048

1шт.

4

S301048

ACCESSORIES

DRYER ASSEMBLY - air, brake, service, parts list Figures 7-40 and 7-42

1шт.

5

218-881

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/4", NPTF, Brass

- 90 degree, 9/16-18 flare x 1/4 inch PT, brass

1шт.

6

L125667

HOSE

- 600 mm long, air, Serial Range: dryer-governor

1шт.

7

218-884

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/2", NPTF, Brass

- 90 degree, 3/4-16 flare x 1/2 inch PT

2шт.

8

L127055

HOSE,12.7 mm ID x 770.00 mm, SAE 1402-A

Air Dryer to Air Reservoir 12.7 mm ID x 770.00 mm, SAE 1402-A

1шт.

9

218-864

HYD CONNECTOR,1/2", Tube x 1/2" NPTF, 37 Degree, Brass

ADAPTER - straight, 3/4-16 flare x 1/2 inch PT

1шт.

10

217-54

TEE,1/2"-14 NPTF Fem x 1/2"-14 NPTF Male Run

- 1/2 inch female PT branch x female PT x PT

1шт.

11

217-42

REDUCER,3/8" - 18 NPT x 1/4" - 18 NPT

- 3/8 PT x 1/4 inch PT

1шт.

12

L126370

LARGE PLATE

GUARD - air dryer

1шт.

13

413-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5

- hex, 1/2 NC x 1-3/8 inch

2шт.

14

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

15

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

16

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

17

495-21044

WASHER,3/8"

(flat, 7/16) 3/8"

4шт.

18

492-11038

LOCK WASHER,3/8"

4шт.

19

425-106

NUT,3/8"-16, Cl 5

4шт.

20

L48992

VALVE,1/4"

- check, air reservoir

1шт.

21

L112624

LOCK VALVE

VALVE - drain, air reservoir, if used

1шт.

22

218-888

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8", NPTF, Brass

- 90 degree, 9/16-18 flare x 1/8 inch PT, brass

1шт.

23

217-45

REDUCER,3/4" - 14 NPTF x 1/2" - 18 Fem NPTF

2шт.
