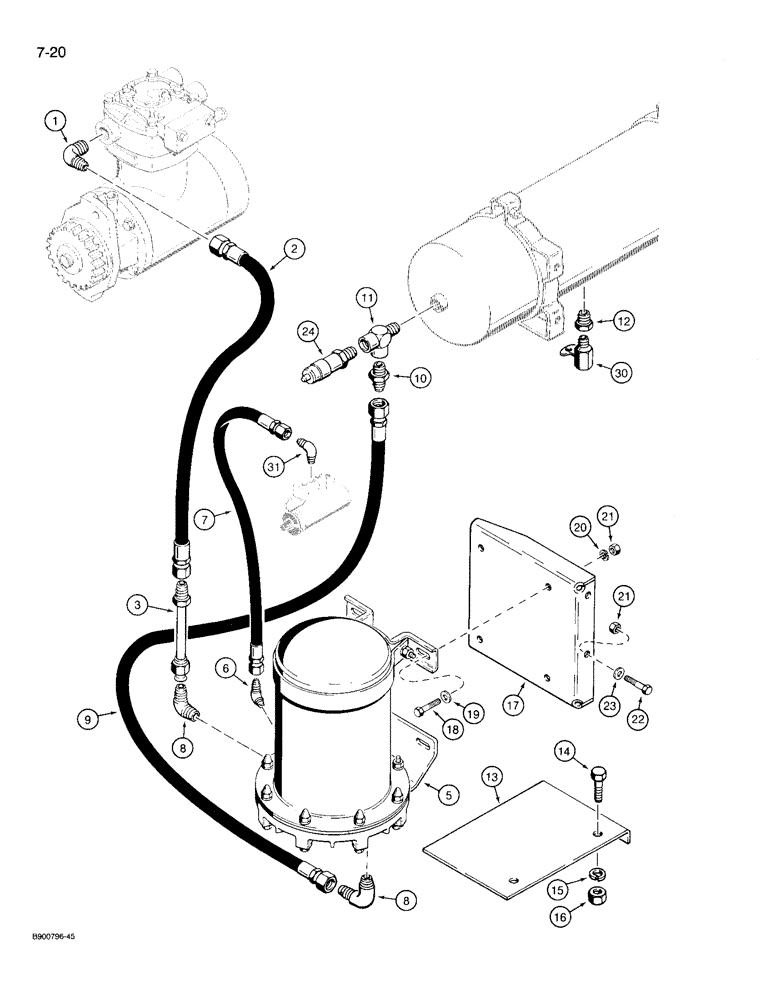

Запчасти Case 721 (7-20) - AIR DRYER SYSTEM, WITH AIR DRYER MOUNTED ON BRACKET (07) - BRAKES

1

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 3/4-16 flare x 1/2 inch PT

1шт.

2

L125668

HOSE ASSY.

HOSE - 700 mm long, supply, air dryer

1шт.

3

L125711

TUBE,12.7 mm OD x 139.7 mm L

- supply hose to air dryer

1шт.

5

L124681

AIR CONDITIONER

DRYER ASSEMBLY - air, brake, parts list Figures 7-40 and 7-42

1шт.

6

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, 9/16-18 flare x 1/4 inch PT

1шт.

7

L125667

HOSE

- 600 mm long, air, Serial Range: dryer-governor

1шт.

8

218-1056

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, NPTF

- 90 degree, 3/4-16 flare x 3/4 inch PT

2шт.

9

L127055

HOSE,12.7 mm ID x 770.00 mm, SAE 1402-A

Air Dryer to Air Reservoir 12.7 mm ID x 770.00 mm, SAE 1402-A

1шт.

10

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, 3/4-16 flare x 1/2 inch PT

1шт.

11

217-1064

TEE,1/2" - 14 Female x 1/2" - 14 Male Run

- pipe, 1/2 inch PT

1шт.

12

221-1086

REDUCER,3/8" NPT x 1/4" NPT

- 3/8 x 1/4 inch PT, if used

1шт.

13

L126370

LARGE PLATE

GUARD - air dryer

1шт.

14

413-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5

- hex, 1/2 NC x 1-3/8 inch

2шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

16

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

17

L124670

BRACKET

- mounting, air dryer

1шт.

18

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

19

495-21044

WASHER,3/8"

(flat, 7/16) 3/8"

4шт.

20

492-11038

LOCK WASHER,3/8"

4шт.

21

425-106

NUT,3/8"-16, Cl 5

6шт.

22

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

23

D41740

WASHER

- flat, 25/64 x 1 x 7/64, hardened

2шт.

24

L48992

VALVE,1/4"

- check, air reservoir

1шт.

30

L112624

LOCK VALVE

VALVE - drain, air reservoir, if used

1шт.

31

218-492

90 ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

- 90 degree, 9/16-18 flare x 1/8 inch PT

1шт.
