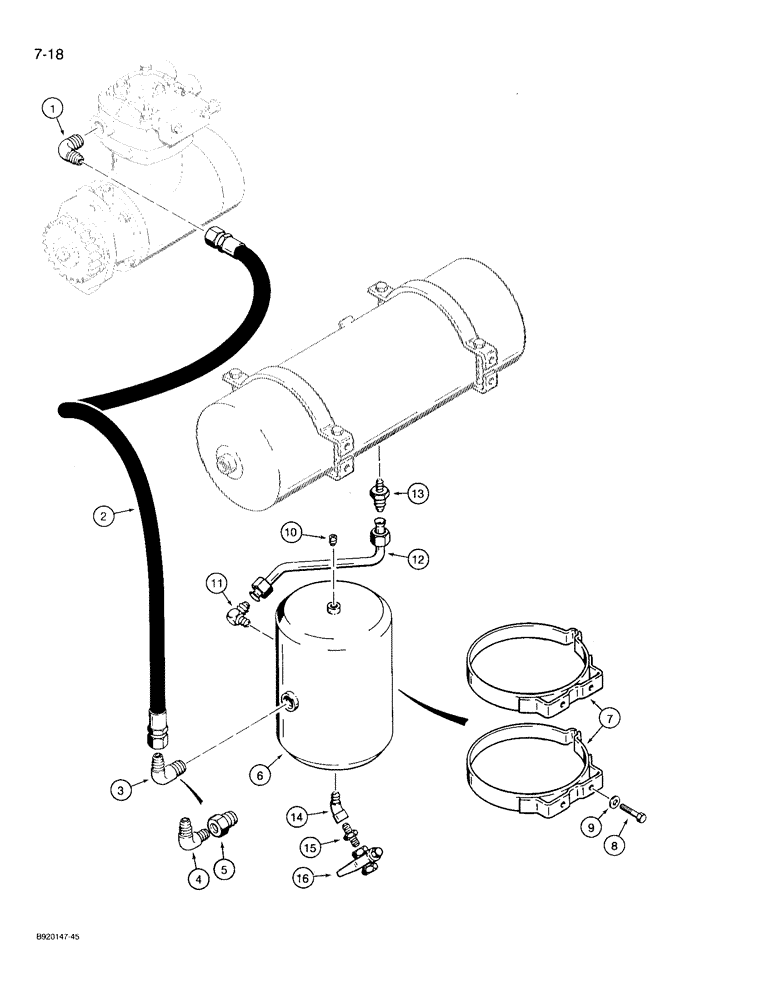

Запчасти Case 721 (7-18) - AIR COMPRESSOR SYSTEM, COMPRESSOR TO LOWER RESERVOIR (07) - BRAKES

1

218-884

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/2", NPTF, Brass

- 90 degree, 3/4-16 flare x 1/2 inch PT

1шт.

2

L125668

HOSE ASSY.

HOSE - 700 mm long, air compressor to lower reservoir

1шт.

3

218-1056

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, NPTF

- 90 degree, 3/4-16 flare x 3/4 inch PT, if used

1шт.

4

218-884

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/2", NPTF, Brass

- 90 degree, 3/4-16 flare x 1/2 inch PT, replaced Ref. 3, elbow, used with Ref. 5, reducer

1шт.

5

217-45

REDUCER,3/4" - 14 NPTF x 1/2" - 18 Fem NPTF

1шт.

6

L123951

RESERVOIR

- brake, lower

1шт.

7

L110438

SUPPORT

BRACKET - reservoir, lower

2шт.

8

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

9

D41740

WASHER

- flat, 25/64 x 1 x 7/64, hardened

4шт.

10

217-77

PLUG

- square, 3/8 inch PT

1шт.

11

218-889

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/8", NPTF, Brass

- 90 degree, 3/4-16 flare x 3/8 inch PT

1шт.

12

101218A1

TUBE,181, 124 mm Length

- lower reservoir to upper air reservoir, replaced L118768

1шт.

13

218-863

HYD CONNECTOR,1/2", Tube x 3/8" NPTF, 37 Degree, Brass

ADAPTER - straight, 3/4-16 flare x 3/8 inch PT

1шт.

14

217-18

ELBOW,45 Degree, 3/8"-18 NPTF, Fem x 3/8"-18 NPTF Male

- street, 45 degree, 3/8 inch PT x female PT

1шт.

15

217-197

FITTING,3/8" - 18 Male NPTF x 3/8" - 18 Male NPTF

NIPPLE - hex, 3/8 PT x 1-7/16 inch

1шт.

16

L119050

DRAIN VALVE

VALVE - drain, air

1шт.
