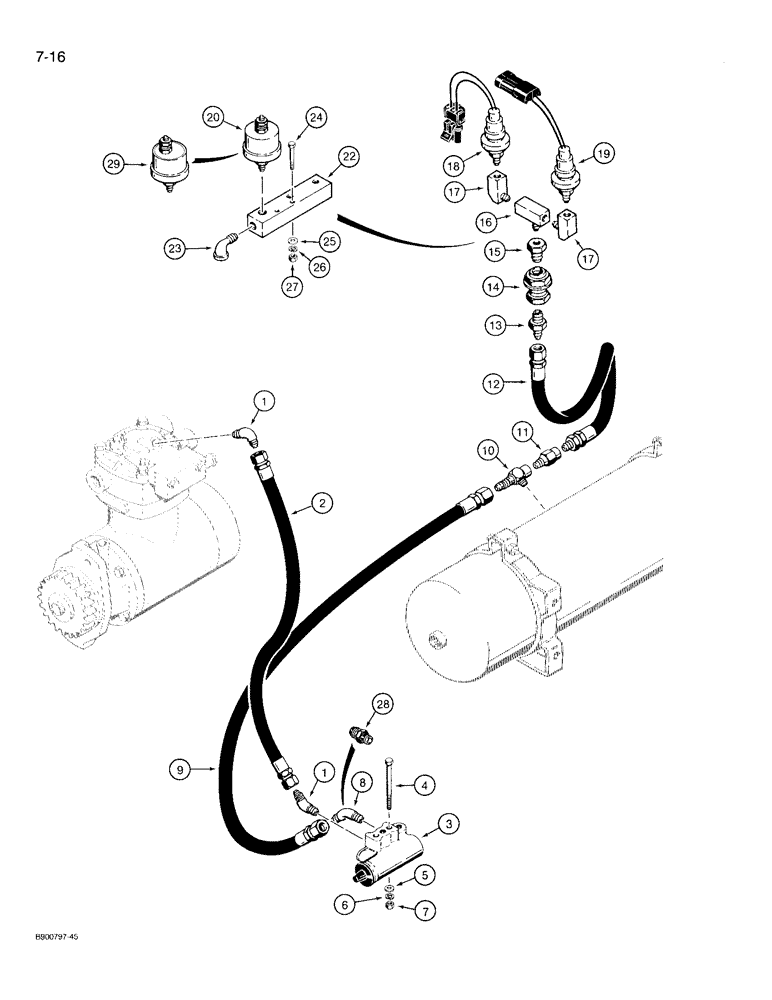

Запчасти Case 721 (7-16) - AIR COMPRESSOR SYSTEM, COMPRESSOR TO UPPER RESERVOIR (07) - BRAKES

1

218-890

ELBOW,45 Degree, 3/8" NPTF x 1/8", NPTF, Brass

- 45 degree, 9/16-18 flare x 1/8 inch PT, brass

2шт.

2

L128054

HOSE

- 650 mm long, Serial Range: compressor-governor

1шт.

3

D72831

GOVERNOR

ASSEMBLY - brake, parts list Figure 7-38

1шт.

4

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

- hex, 5/16 NC x 3-1/2 inch

2шт.

5

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

2шт.

6

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

7

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

8

218-1094

ELBOW,45 Degree, 9/16-18" NPTF x 1/8"-27 37 Degree

- 45 degree, 3/8-24 x 1/8 inch PT, replace with Ref. 28, 218-453 adapter

1шт.

9

L125649

HOSE

- 435 mm long, governor to air reservoir

1шт.

10

L126259

TEE

- hose to air reservoir

1шт.

11

L124443

FITTING

SNUBBER - air, air reservoir to air hose

1шт.

12

L124434

AIR HOSE,10.30 mm ID x 650.00 mm, SAE J1402 A

Snubber to Low Air Switch 10.30 mm ID x 650.00 mm, SAE J1402 A

1шт.

13

218-861

HYD CONNECTOR,3/8", Tube x 1/4" NPTF, 37 Degree, Brass

ADAPTER - straight, 9/16-18 x 1/4 inch PT

1шт.

14

217-228

FITTING

ADAPTER - bulkhead, 1/4 inch fem PT x 3/4 inch straight thread

1шт.

15

217-40

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

- 1/4 x 1/8 inch, if used

1шт.

16

217-55

TEE,1/8"-27 NPTF Fem Run x 1/8"-27 NPTF Male Br

- 1/8 inch PT

1шт.

17

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

Street 90º, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

2шт.

18

A187770

IGNITION SWITCH

SWITCH - declutch, low air

1шт.

19

A187531

SWITCH

- pressure, low air

1шт.

20

A187532

PROBE

SENDER - air pressure, brake, use with Ref. 4, A187539 gauge shown on Figure 4-18

1шт.

22

L126565

MANIFOLD

- mounting, air switches and air pressure sender, use on models with optional gauges

1шт.

23

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- 90 degree street, 1/4 inch PT

1шт.

24

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex, 1/4 NC x 1-3/4 inch

2шт.

25

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x .065 inch

2шт.

26

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

27

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

28

218-866

HYD CONNECTOR,3/8", Tube x 1/8" NPTF, 37 Degree, Brass

ADAPTER - straight, 9/16-18 flare x 1/8 inch PT, brass

1шт.

29

L128324

SENDER UNIT

SENDER - air pressure, brake, use with item 4, L125855 gauge shown on Figure 4-20

1шт.
