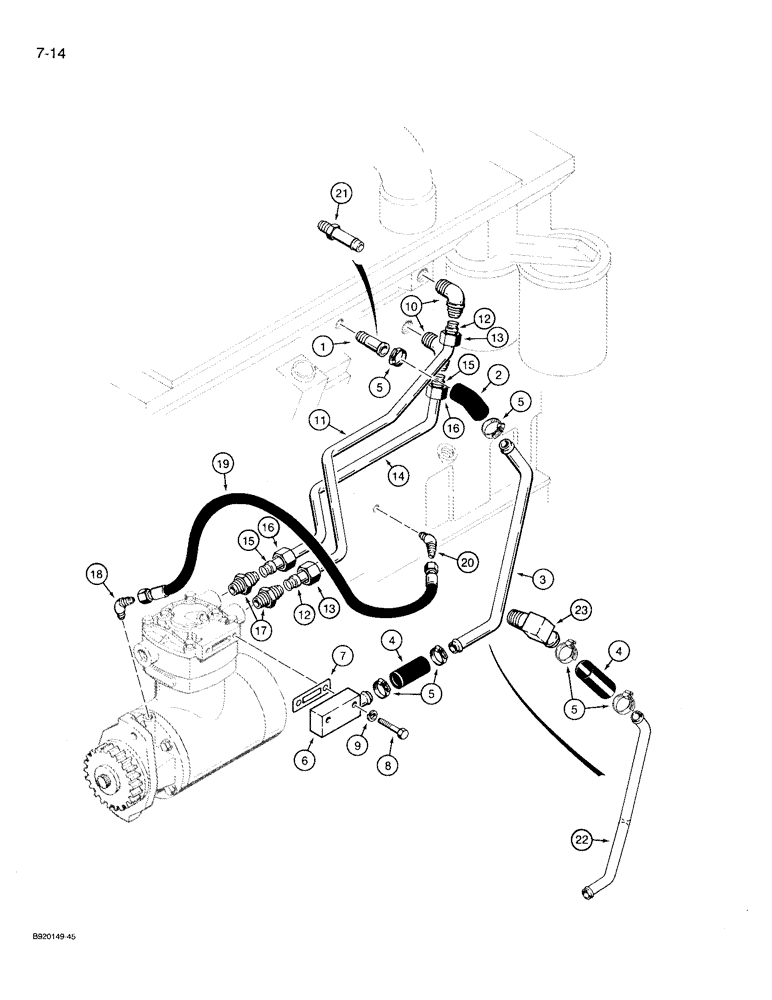

Запчасти Case 721 (7-14) - AIR COMPRESSOR SYSTEM, ENGINE TO COMPRESSOR (07) - BRAKES
№
Артикул
Название
Примечание
Количество
1
217-160
FITTING,3/4" Hose Barb x 1/2" Male NPTF
- stem, straight, 3/4 hose ID x 1/2 inch PT, was J907167, if used
1шт.
2
J911935
AIR HOSE,19.05 mm ID x 44.00 mm
90 Degree, Formed 19.05 mm ID x 44.00 mm
1шт.
3
L125675
TUBE
- inlet, air compressor, used with Ref. 1, stem fitting, and Ref. 2, 90 degree formed hose, at engine, if used
1шт.
4
J911936
AIR HOSE,19.05 mm ID x 51.00 mm
Tube To Connector 19.05 mm ID x 51.00 mm
1-2шт.
5
214-253
HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm
CLAMP - hose, No. 10, Type F
4шт.
6
J911533
PIPE
CONNECTOR - air inlet
1шт.
7
A77657
GASKET
- inlet, Serial Range: connector-compressor
1шт.
8
413-528
BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5
2шт.
10
A77517
UNION
ELBOW - 90 degree, Serial Range: tube-engine
2шт.
11
J911937
TUBE,12.7 mm OD x 498.4 mm L
- water inlet, Includes: Ref. 12 and 13
1шт.
12
A77515
GASKET
SLEEVE - tube
2шт.
13
NSS
NOT SOLD SEPARAT
NUT - tube
2шт.
Ref. 13 is threaded fitting
1шт.
14
J911456
TUBE,12.7 mm OD x 398.2 mm L
- water outlet, Includes: Ref. 15 and 16
1шт.
15
A77515
GASKET
SLEEVE - tube
2шт.
16
NSS
NOT SOLD SEPARAT
NUT - tube
2шт.
17
222-4029
HYD CONNECTOR,13/16"-18 x 3/8" NPTF
ADAPTER - straight, 13/16-18 flare x 3/8 inch PT
2шт.
18
222-762
ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT
1шт.
19
J906747
HOSE,6.35mm ID x 508mm L
Air Compressor to Engine 508.00 mm, SAE 45
1шт.
20
222-1704
ELBOW,45 Degree, 7/16"-24, 45 Degree Fl x 1/4 NPT
- 45 degree, 7/16-20 flare x 1/8 inch PT
1шт.
21
217-160
FITTING,3/4" Hose Barb x 1/2" Male NPTF
ADAPTER - straight, 3/4 stem end x 1/2 inch PT, if used
1шт.
22
J917773
AIR INTAKE TUBE,19.05 mm OD x 377.3 mm L
TUBE - inlet, air compressor, used with Ref. 23, 90 degree fitting, and Ref. 4, straight hose, at engine
1шт.
23
J912625
ELBOW
FITTING - 90 degree, if used, included with engine
1шт.
Ref. 23 is a press fit (no threads)
1шт.
Выбрано товаров: 25
