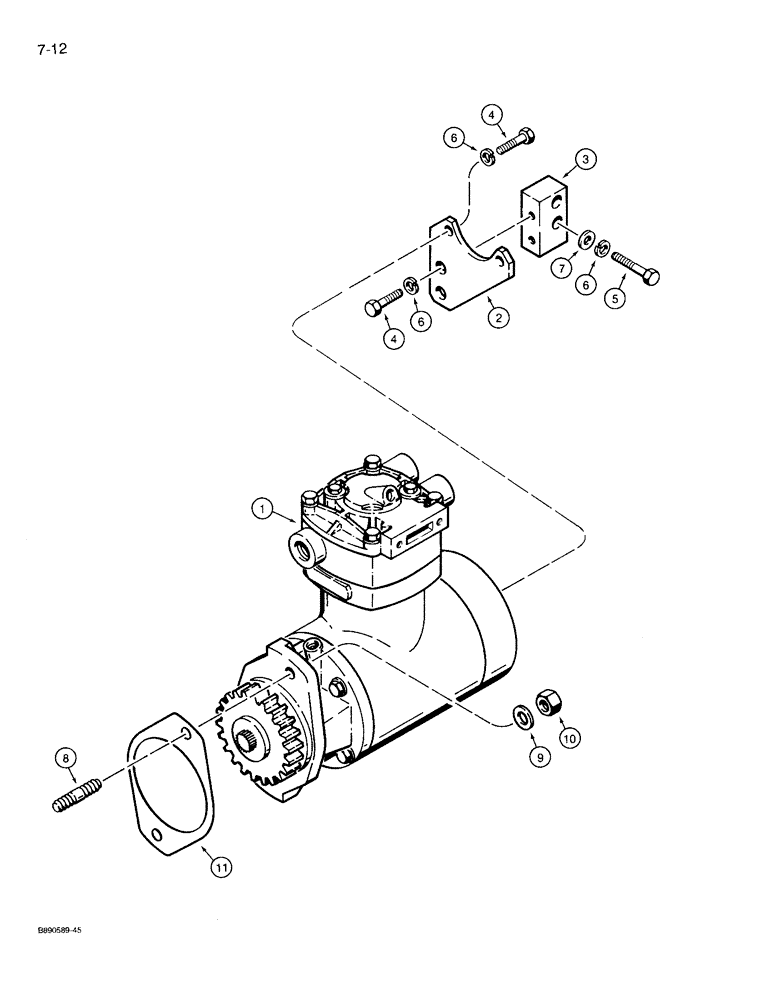

Запчасти Case 721 (7-12) - AIR COMPRESSOR MOUNTING (07) - BRAKES

1

A77656

COMPRESSOR

ASSEMBLY - air, see parts list Figures 7-34 and 7-34

1шт.

1

L125678R

REMAN-COMPRESSOR

721

1шт.

1

L125678C

CORE-COMPRESSOR

Return Number

1шт.

2

J914722

BRACE

BRACKET - mounting, compressor

1шт.

3

J914723

SPACER

BLOCK - support, mounting bracket

1шт.

4

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

5

828-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

2шт.

6

892-11010

LOCK WASHER,M10

6шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

2шт.

8

J913370

STUD

- mounting, air compressor to gear pump

2шт.

9

L125688

WASHER

- flat, special

2шт.

10

L125687

NUT

- hex, self-locking, special

2шт.

11

J913287

GASKET,1.05mm Thk

- air compressor to gear pump

1шт.
