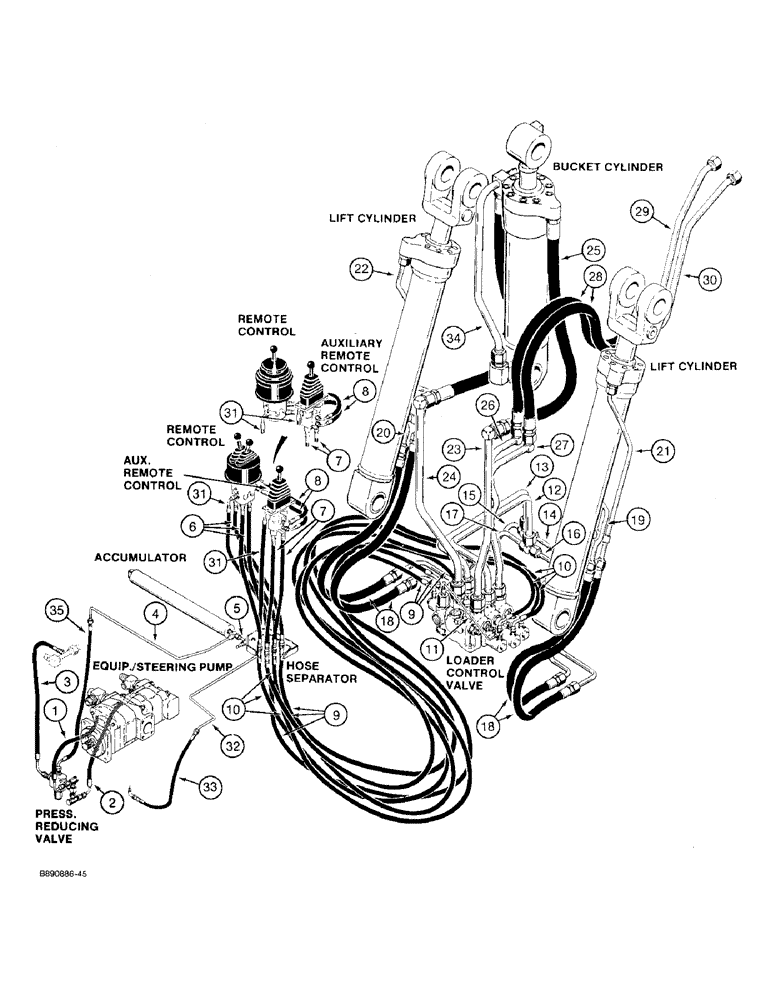

Запчасти Case 721 (1-20) - PICTORIAL INDEX, HYDRAULIC CIRCUIT - THREE SPOOL VALVE, STEERING PUMP TO CYLINDERS (00) - PICTORIAL INDEX

1

Hose, tee at steering pump to pressure reducing valve, Page 8-69

1шт.

2

Hose, fitting at steering pump to pressure reducing valve, Page 8-69

1шт.

3

Hose, pressure reducing valve to return tube, Page 8-69

1шт.

4

Tube, hose at pressure reducing valve to tee at accumulator, Page 8-69

1шт.

5

Formed tube, accumulator to hose separator, Page 8-69

1шт.

6

Hose, remote control to hose separator ports 1A, 1B, 2A, and 2B, Page 8-59, 8-61

1шт.

7

Hose, auxiliary remote control to hose separator ports 3A and 3B, Page 8-59, 8-61

1шт.

8

Hose, auxiliary remote control to remote control, Page 8-59, 8-61

1шт.

9

Hose, hose separator to ports 1B, 2A, and 3B, Page 8-63

1шт.

10

Hose, hose separator to ports 1A, 2B, and 3A, Page 8-63

1шт.

11

Formed tube, inlet and outlet section to tee at port 1A, Page 8-63

1шт.

12

Supply tube, right-hand, at valve to cylinders, Page 8-11

1шт.

13

Supply tube, left-hand, at valve to cylinders, Page 8-11

1шт.

14

Supply tube, right-hand rod end, Page 8-11

1шт.

15

Lift tube, left-hand rod end, Page 8-11

1шт.

16

Lift tube, right-hand closed end, Page 8-11

1шт.

17

Lift tube, left-hand closed end, Page 8-11

1шт.

18

Hose, at cylinders, Page 8-11

1шт.

19

Formed tube, right-hand, cylinder closed end, Page 8-11

1шт.

20

Formed tube, left-hand, cylinder closed end, Page 8-11

1шт.

21

Formed tube, right-hand, cylinder rod end, Page 8-11

1шт.

22

Formed tube, left-hand, cylinder rod end, Page 8-11

1шт.

23

Supply tube, right-hand, Page 8-13

1шт.

24

Supply tube, left-hand, Page 8-13

1шт.

25

Hose, tube to cylinder, Page 8-13

1шт.

26

Formed tube, left-hand, auxiliary to hose, Page 8-15

1шт.

27

Formed tube, right-hand, auxiliary to hose, Page 8-15

1шт.

28

Hose, tube at loader valve to tube on lift arm, Page 8-15

1шт.

29

Formed tube, left-hand, at loader arm, Page 8-15

1шт.

30

Formed tube, right-hand, at loader arm, Page 8-15

1шт.

31

Hose, remote controls to hose separator, hydraulic reservoir and pressure reducing valve ports, Page 8-59, 8-61

1шт.

32

Formed tube, hose separator to hose at hydraulic reservoir, Page 8-69

1шт.

33

Hose, formed tube to hydraulic reservoir, Page 8-69

1шт.

34

Formed tube, bucket cylinder, closed end, Page 8-13

1шт.

35

Hose, pressure reducing valve to tube at accumulator, Page 8-69

1шт.
