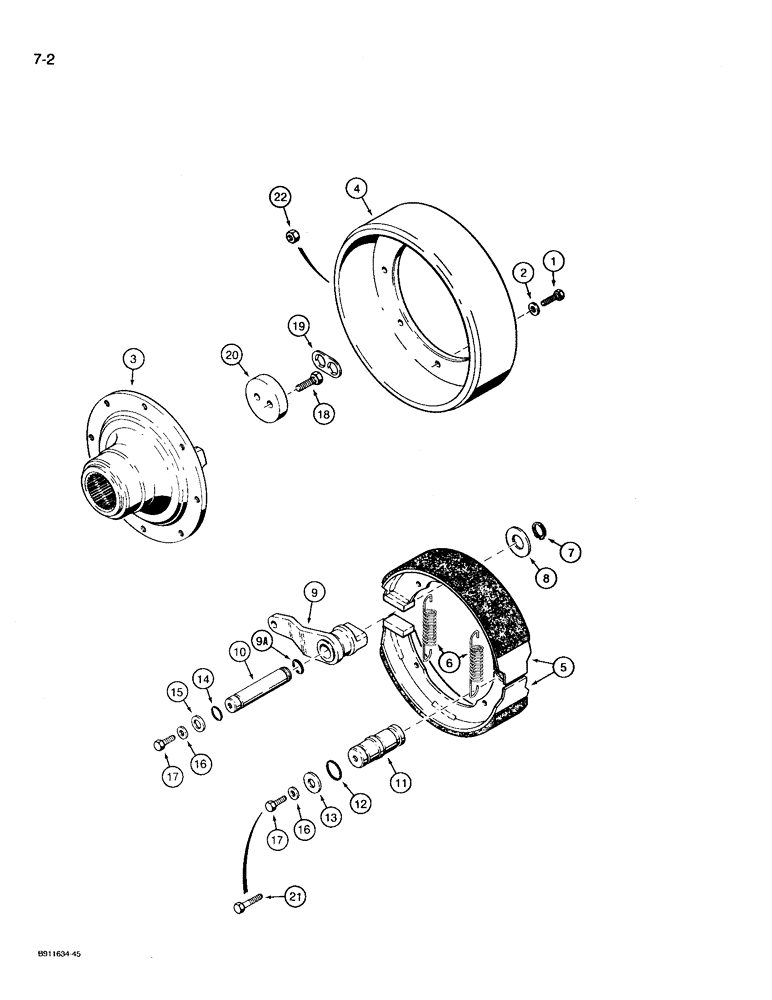

Запчасти Case 721 (7-02) - PARKING BRAKE ASSEMBLY, PRIOR TO P.I.N. JAK0022758 (07) - BRAKES

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - see Figure 6-8 for correct transmission and parts information, Includes: Ref. 1 - 22

1шт.

1

626-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

6-8шт.

2

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6-8шт.

3

S300580

SHIN

FLANGE - output, parking brake, front

1шт.

4

S300478

BRAKE DRUM

DRUM - parking brake

1шт.

S300579

BRAKE, PARKING

BRAKE ASSEMBLY - parking, Includes: Ref. 6 - 11, Serial Range: -JAK0022534

1шт.

S301584

BRAKE, PARKING

BRAKE ASSEMBLY - parking, Includes: Ref. 6 - 11, Serial Range: JAK0022534-JAK0022757

1шт.

5

S300590

BRAKE PAD

SHOE AND LINING ASSEMBLY - parking brake, components are not serviced separately

2шт.

6

3141953R1

SPRING

- shoe return

2шт.

7

933105R1

SNAP RING,M22, Ext

RING - snap, pin

1шт.

8

S300515

WASHER

- flat, pin

1шт.

9

S300516

BRAKE CAM

LEVER - includes cam, parking brake, S300579 brake

1шт.

9

S301588

BRAKE CAM

LEVER - includes cam, parking brake, S301584 brake

1шт.

9a

716582R1

O-RING

- lever, S301584 brake

1шт.

10

S300514

PIN

- lever mounting

1шт.

11

S300513

PIN

Spacer - brake shoe

1шт.

12

S300481

O-RING,25.3mm ID x 2.4mm Width

O-RING - large, spacer

1шт.

Part of seal and gasket kit, P/N S300588 and Figure 6-2 -6-42 and 7-2

1шт.

13

S300480

WASHER

- flat, special, Serial Range: -JAK0022534

1шт.

13

S301956

WASHER

- flat, special, Serial Range: JAK0022534-JAK0022757

1шт.

14

3140876R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- small, lever mounting pin

1шт.

Part of seal and gasket kit, P/N S300588 and Figure 6-2 -6-42 and 7-2

1шт.

15

3134279R1

WASHER

- flat, lever mounting pin, Serial Range: -JAK0022534

1шт.

15

S301623

WASHER

- flat, lever mounting pin, Serial Range: JAK0022534-JAK0022757

1шт.

16

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1-2шт.

17

626-10022

BOLT,Hex, M10 x 1.5 x 22mm, Cl 10.9, Full Thd

- hex, 10 - 1.5 x 22, class 10.9

2шт.

18

826-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

- hex, 10 - 1.5 x 30 mm

4шт.

19

E135165

PLATE

PLATE - locking

2шт.

20

E135181

WASHER

RETAINER - flange

2шт.

21

828-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

- hex, 10 - 1.5 x 40 mm, class 10.9, Serial Range: JAK0022534-JAK0022757

1шт.

22

825-1010

NUT,M10, Cl 8

- hex, 10 - 1.5, if used

2шт.

S300588

SEAL PACKAGE

KIT - seal and gasket, Includes Refs. 12 and 14 this Figure and Figures 6-2 - 6-42

1шт.
