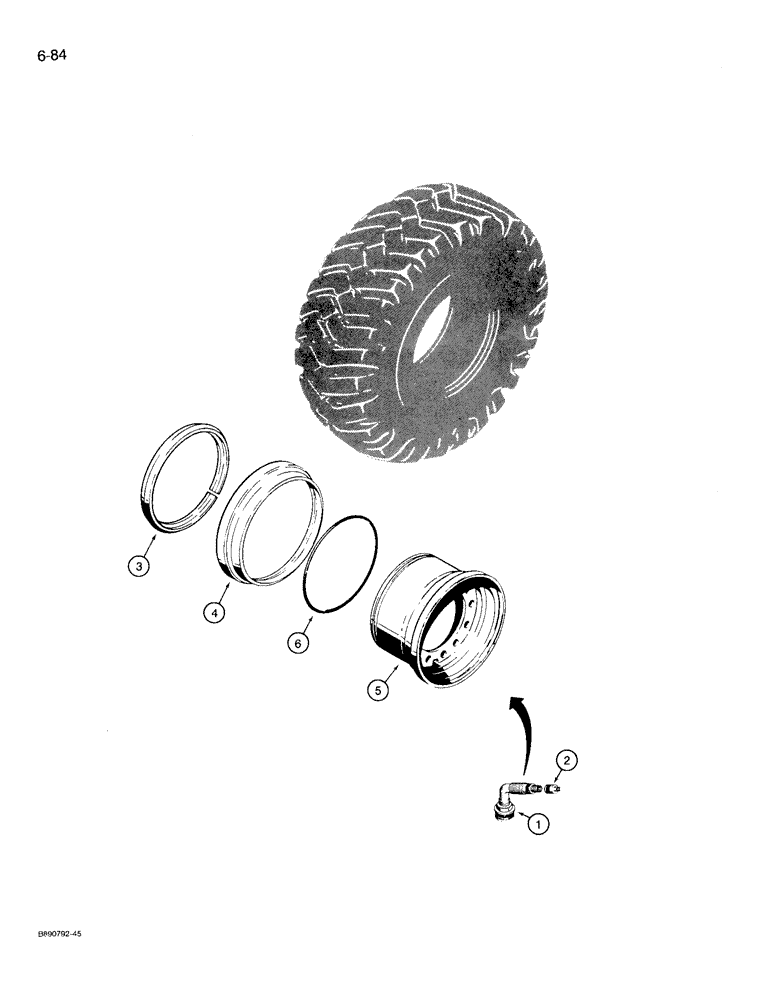

Запчасти Case 721 (6-84) - WHEELS, FOR 17.5 X 25 TIRES - THREE PIECE WHEEL (06) - POWER TRAIN

1

L48133

VALVE STEM

- Tubeless tire, Includes: Ref. 2

4шт.

2

L19664

VALVE STEM

CAP - valve

1шт.

L119200

RIM

WHEEL ASSEMBLY - rim, three piece, Includes: Ref. 3 - 5

4шт.

3

N8338

RING

- locking, for wheels stamped with No. 0111571900

1шт.

3

A19100

LOCKING RING

RING - locking, for wheels stamped with No. 51474750395 or 51482950399

1шт.

4

D87103

RIM

RING - side, for wheels stamped with No. 0111571900

1шт.

4

S300702

RING

- side, for wheels stamped with No. 51474750395 or 51482950399

1шт.

5

NSS

NOT SOLD SEPARAT

RIM - wheel

1шт.

6

A19101

O-RING,6.6mm Thk x 590.55mm ID

- seal

4шт.

1

L48133

VALVE STEM

- Tubeless tire, for 20.5 x 25 tires - 3 piece wheel, Includes: Ref. 2

4шт.

2

L19664

VALVE STEM

CAP - valve, for 20.5 x 25 tires - 3 piece wheel

1шт.

L119191

RIM

WHEEL ASSEMBLY - rim, three piece, for 20.5 x 25 tires, Includes: Ref. 3 - 5

4шт.

3

N8338

RING

- locking, for wheels stamped with No. 0111551101, for 20.5 x 25 tires - 3 piece

1шт.

3

A19100

LOCKING RING

RING - locking, for wheels stamped with No. 51474750395 or 51482950399, for 20.5 x 25 tires - 3 piece

1шт.

4

N8337

RING

- side, for wheels stamped with No. 0111551101, for 20.5 x 25 tires - 3 piece

1шт.

4

S300701

RING

- side, for wheels stamped with No. 51474750395 or 51482950399, for 20.5 x 25 tires - 3 piece

1шт.

5

NSS

NOT SOLD SEPARAT

RIM - for 20.5 x 25 tires - 3 piece wheel

1шт.

6

A19101

O-RING,6.6mm Thk x 590.55mm ID

- seal, for 20.5 x 25 tires - 3 piece wheel

4шт.
