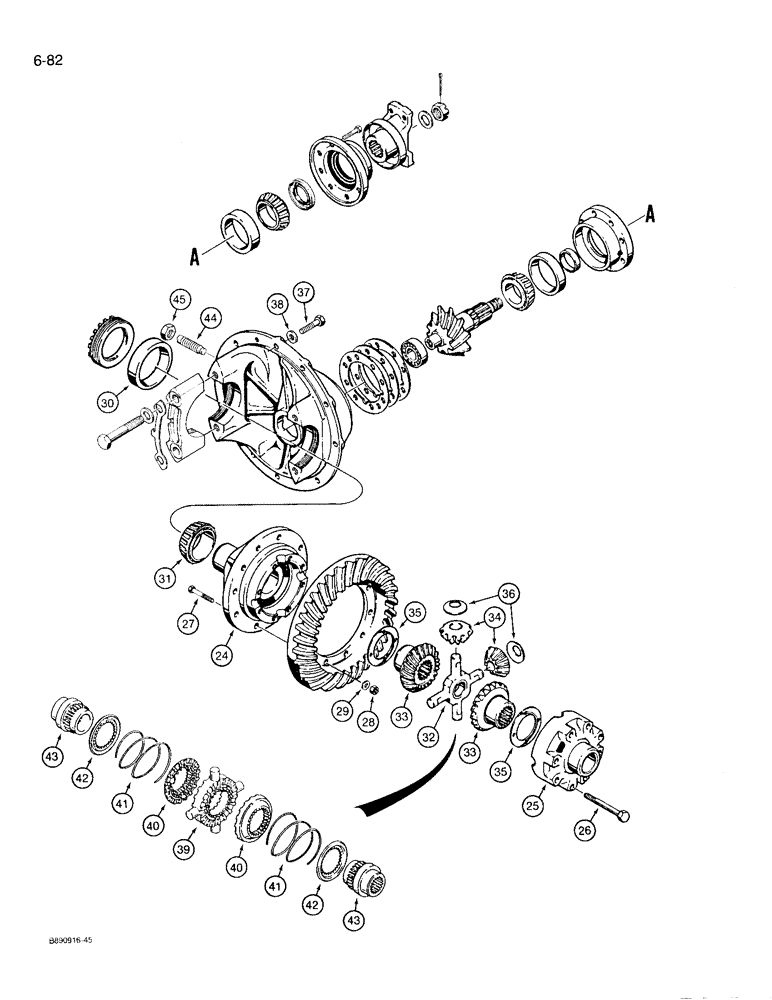

Запчасти Case 721 (6-82) - FRONT AND REAR AXLE DIFFERENTIAL (CONTD) (06) - POWER TRAIN

REF

INSTRUCTION

AXLE ASSEMBLY - front and rear, parts list Figures 6-76 - 6-82, continued, see Figure 6-74 for correct axle assembly, Includes: Ref. 24 - 45 and 1 - 23 on Figure 6-80

2шт.

REF

INSTRUCTION

AXLE ASSEMBLY - rear, with no-spin differential, if used, parts list Figures 6-76 - 6-82, continued from previous page, see Figure 6-74 for correct axle assembly, Includes: Ref. 24 - 45 and 1 - 23 on Figure 6-80

1шт.

S300278

DIFFERENTIAL

ASSEMBLY - front and rear axle, without no-spin, Includes: Ref. 24 - 36

1шт.

S300278 differential assembly does not include Refs. 39 - 43 shown on this Figure.

1шт.

S300777

DIFFERENTIAL

ASSEMBLY - rear axle, with no-spin, Includes: Ref. 24 - 36

1шт.

S300777 no-spin differential assembly does not include Refs. 32 - 36 shown on this Figure.

1шт.

S300283

DIFFERENTIAL

CASE ASSEMBLY - differential, Includes: Ref. 24 and 25

1шт.

24

NSS

NOT SOLD SEPARAT

CASE - flange half

1шт.

25

NSS

NOT SOLD SEPARAT

CASE - plain half

1шт.

26

514-807

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

- hex, self-locking, 12 - 1.75 x 100 mm, Class 10.9

12шт.

27

S300310

WHEEL BOLT

BOLT - ring, Serial Range: gear-case

12шт.

28

S300311

NUT

- hex, lock

12шт.

29

S300312

WASHER

- flat, hardened

12шт.

30

S300294

BEARING CAP

CUP - bearing, gear

2шт.

31

S300295

BALL RACE

BEARING - tapered roller

2шт.

32

S300293

TOGGLE

SPIDER - S300278 differential

1шт.

33

S300289

PINION

GEAR - side, S300278 differential

2шт.

34

S300290

PINION

GEAR - pinion, S300278 differential

4шт.

35

S300291

WASHER

- thrust, side gear, S300278 differential

2шт.

36

S300292

CONE WASHER

WASHER - thrust, pinion, used with S300293 spider, S300278 differential

4шт.

37

628-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

- hex, 12 mm - 1.75 x 40 mm, class 10.9

12шт.

38

D74508

WASHER

- flat, 13 x 22 x 2.5 mm, hardened, Includes: Ref. 39 - 43

12шт.

S510321

SHAFT

SPIDER AND GEAR ASSEMBLY - no-spin, S300777 differential, Includes: Ref. 39 - 43

1шт.

39

S229286

TOGGLE

SPIDER - differential

1шт.

40

S229287

CLUTCH

GEAR - side, inner

2шт.

41

S106225

SPRING

- spider

2шт.

42

S106226

SPRING SEAT

RETAINER - spring

2шт.

43

S106227

GEAR

- side, outer

2шт.

44

N6213

SCREW,M22 x 2.5 x 2.5mm

- thrust

1шт.

45

825-1422

NUT,M22 x 2.5, Cl 8

- hex, 22 mm

1шт.
