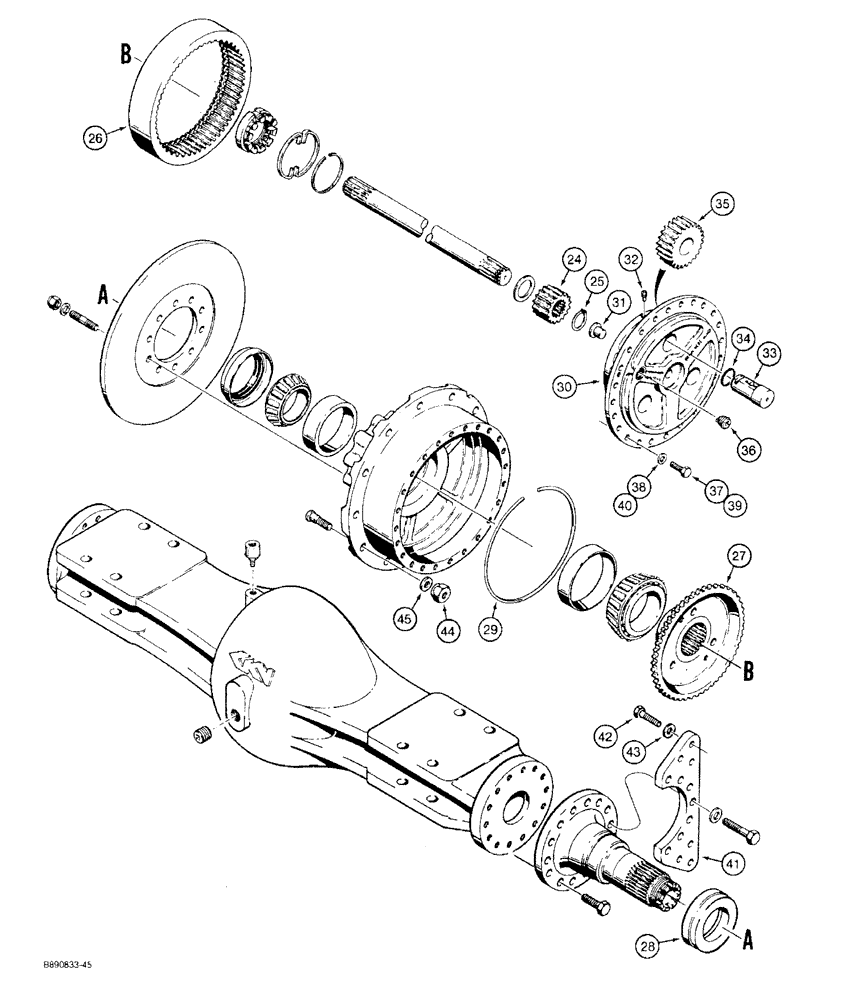

Запчасти Case 721 (6-78) - AXLE HOUSING AND PLANETARY (CONTD) (06) - POWER TRAIN

REF

INSTRUCTION

AXLE ASSEMBLY - front and rear, see Figure 6-74 for correct axle assembly, Includes: Ref. 24 - 41 and 1 - 23 on Figure 6-76

2шт.

REF

INSTRUCTION

AXLE ASSEMBLY - rear with no-spin differential if used, see Figure 6-74 for correct axle assembly, Includes: Ref. 24 - 41 and 1 - 23 on Figure 6-76

1шт.

24

N9839

SUN GEAR

GEAR - sun, planetary

2шт.

25

K12922

RING, SNAP

RING SNAP RING - snap, sun gear

2шт.

26

N9835

SLEWING RING

GEAR - ring, planetary

2шт.

27

N9836

RING, FLYWHEEL

HUB - ring gear

2шт.

28

S300013

SPACER

SPACER - hub

2шт.

29

D74456

RING

RING - retaining, ring gear

2шт.

30

D74451

COVER

COVER - planetary

2шт.

31

D74467

PLUG

PLUG - thrust

2шт.

32

D74502

SET SCREW,M10 x 1.5 x 1.50mm, Gr 8.8

SCREW - set, cover

6шт.

33

D74453

SHAFT

SHAFT - pinion

6шт.

34

D80559

O-RING,41.6 mm ID

O-RING - shaft seal

6шт.

35

N9837

GEAR

GEAR - pinion, planetary

6шт.

36

D74516

PLUG

PLUG - cover

2шт.

37

804-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9

BOLT - hex, 12 mm - 1.75 x 35 mm, class 10.9, self-locking

46шт.

38

D74508

WASHER

WASHER - flat, 13 mm x 22 mm x 2.5 mm, hardened

46шт.

39

804-14035

BOLT,Hex, M14 x 2 x 35mm, Cl 10.9

BOLT - hex, 14 mm - 2 x 35 mm, class 10.9, self-locking, oil drain

2шт.

40

D74509

WASHER

WASHER - flat, 15 mm x 24 mm x 2.5 mm

2шт.

41

D74463

PLATE ASSY.

PLATE - caliper mount, Serial Range: -JAK0022628

2шт.

41

S300816

SUPPORT

PLATE - caliper mount, Start Serial: JAK0022628

2шт.

42

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

BOLT - hex, 3/4 NC x 2-1/2 inch, grade 8

24шт.

43

L79179

WASHER

WASHER - flat, 13/16 x 1-15/32 x 1/8 inch

24шт.

44

29-1712

NUT,3/4"-16, G8, Hvy

NUT - hex, 3/4 inch NF 9Replaced 25-1712)

64шт.

45

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

WASHER - flat, 19.84 mm x 44.5 mm x 5.56 mm, hardened

64шт.
