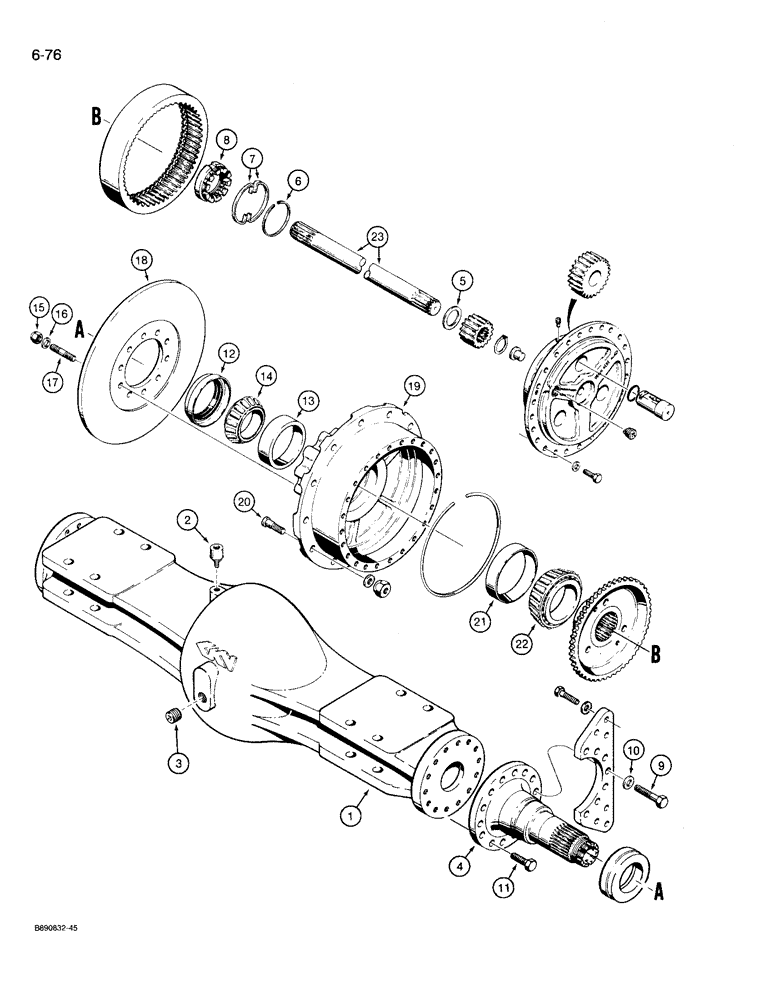

Запчасти Case 721 (6-76) - AXLE HOUSING AND PLANETARY (06) - POWER TRAIN

REF

INSTRUCTION

AXLE ASSEMBLY - front and rear, see Figure 6-74 for correct axle assembly, Includes: Ref. 1 - 23 and 24 - 41 on Figure 6-78

2шт.

REF

INSTRUCTION

AXLE ASSEMBLY - rear, with no-spin differential, if used, see Figure 6-74 for correct axle assembly, Includes: Ref. 1 - 23 and 24 - 41 on Figure 6-78

2шт.

1

S300277

HOUSING

- axle

1шт.

2

S301626

PLUG

BREATHER - axle (Replaced D74469)

1шт.

3

K12362

PLUG

- housing

1шт.

4

S300014

SHAFT

SPINDLE - front axle

2шт.

5

D77572

WASHER

- flat, 45.5 mm x 70 mm x 10 mm, hardened

2шт.

6

D77571

VALVE SPRING

RING - spring

2шт.

7

D77570

RING

- retaining, spring

4шт.

8

D77568

LOCK NUT

- locking

2шт.

9

804-20080

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

- hex, self-locking, 20 - 2.5 x 80 mm, Class 10.9

14шт.

10

D80556

WASHER

- flat

14шт.

11

804-20055

BOLT,Hex, M20 x 2.5 x 55mm, Cl 10.9

- hex, self-locking, 20 - 2.5 x 55 mm, Class 10.9

14шт.

12

S300015

OIL SEAL

SEAL - hub

2шт.

13

ST982

BEARING CUP

CUP - bearing

2шт.

14

A52289

ROLLER BEARING,3.8125" ID x 1.1406"

CONE - bearing

2шт.

15

D74505

NUT

- lock

20шт.

16

D74504

WASHER

- flat

20шт.

17

D74503

STUD

- hub

20шт.

18

S300016

BRAKE DISC

DISC - brake, Serial Range: -JAK0022628

2шт.

18

S301973

DISC

- brake, Start Serial: JAK0022628

2шт.

19

S300274

HUB

- wheel

2шт.

20

D80560

STUD

BOLT - press in

32шт.

21

L30842

BEARING CUP,159.99mm OD x 26.99mm W

CUP - bearing

2шт.

22

L35045

ROLLER BEARING

CONE - bearing

2шт.

23

S300276

SHAFT

- axle, left-hand front and right-hand rear, short

1шт.

23

S300275

SHAFT

- axle, right-hand front and left-hand rear, long

1шт.
