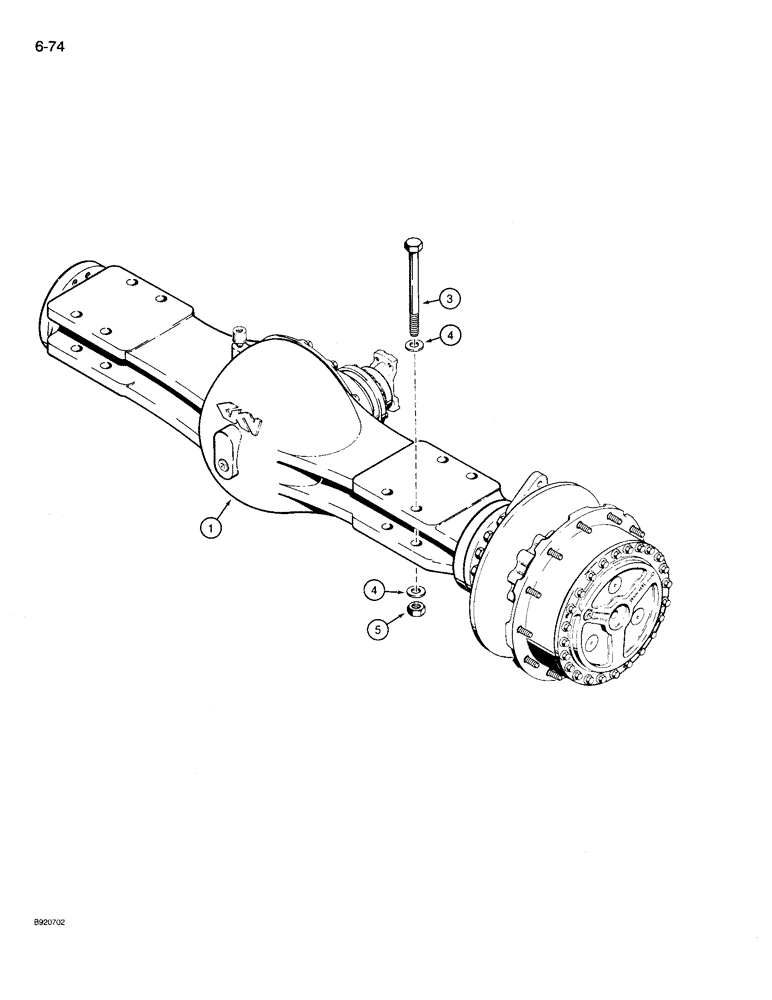

Запчасти Case 721 (6-74) - AXLE ASSEMBLIES AND MOUNTING, PRIOR TO P.I.N. JAK0022628 (06) - POWER TRAIN

1

L118648

AXLE HOUSING

AXLE ASSEMBLY - front and rear, parts list Figures 6-76 - 6-82

2шт.

2

L127016

AXLE HOUSING

AXLE ASSEMBLY - rear with no-spin differential, if used, not shown, parts list Figures 6-76 - 6-82

1шт.

3

116-904

BOLT,Hex, 1" - 14 x 10", Gr 8

- hex, 1 NF x 10 inch, grade 8

16шт.

4

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- flat, 1-1/16 x 1-7/8 x 9/64 inch, hardened

32шт.

5

131-188

LOCK NUT,1"-14, GB

NUT - hex, self-locking, 1 inch NF

16шт.

1

L129568

AXLE HOUSING

AXLE ASSEMBLY - front and rear, parts list Figures 6-76 - 6-82, Start Serial: JAK0022628

2шт.

2

L129569

AXLE HOUSING

AXLE ASSEMBLY - rear with no-spin differential, if used, not shown, parts list Figures 6-76 - 6-82, Start Serial: JAK0022628

1шт.

3

116-904

BOLT,Hex, 1" - 14 x 10", Gr 8

- hex, 1 NF x 10 inch, grade 8, Start Serial: JAK0022628

16шт.

4

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- flat, 1-1/16 x 1-7/8 x 9/64 inch, hardened, Start Serial: JAK0022628

32шт.

5

131-188

LOCK NUT,1"-14, GB

NUT - hex, self-locking, 1 inch NF, Start Serial: JAK0022628

16шт.
