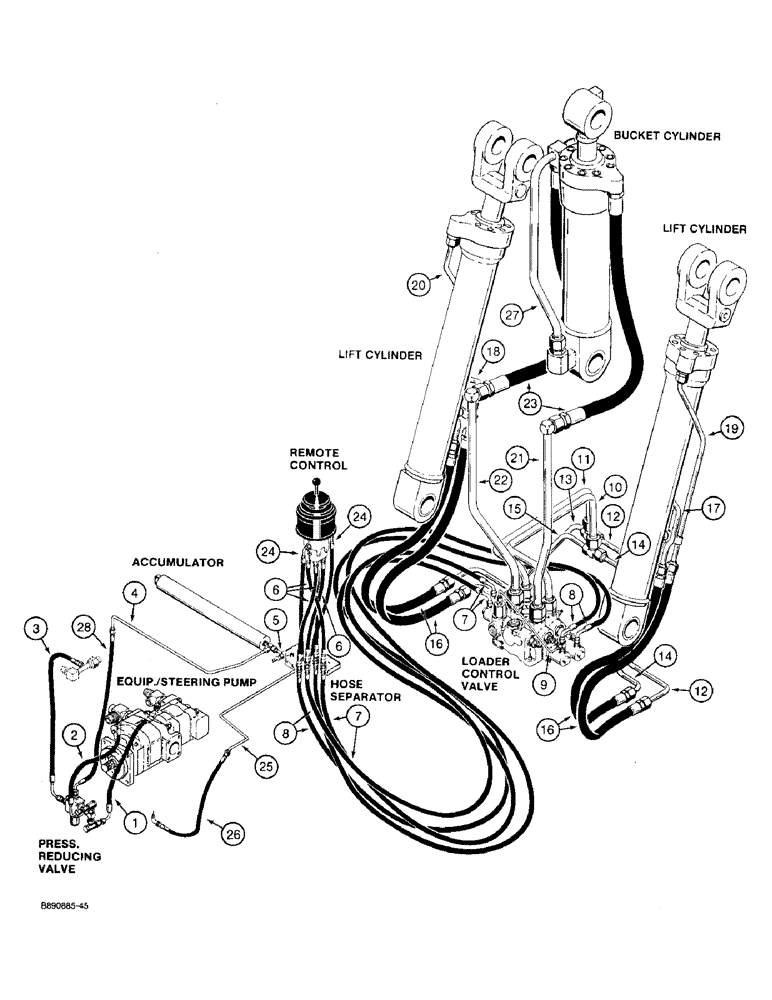

Запчасти Case 721 (1-18) - PICTORIAL INDEX, HYDRAULIC CIRCUIT - TWO SPOOL VALVE, STEERING PUMP TO CYLINDERS (00) - PICTORIAL INDEX

1

Hose, tee at steering pump to pressure reducing valve, Page 8-69

1шт.

2

Hose, fitting at steering pump to pressure reducing valve, Page 8-69

1шт.

3

Hose, pressure reducing valve to return tube, Page 8-69

1шт.

4

Tube, hose at pressure reducing valve to tee at accumulator, Page 8-69

1шт.

5

Formed tube, accumulator to hose separator, Page 8-69

1шт.

6

Hose, hose separator to remote control, Page 8-53, 8-55

1шт.

7

Hose, hose separator to ports 1B and 2A, Page 8-57

1шт.

8

Hose, hose separator to ports 1A and 2B, Page 8-57

1шт.

9

Formed tube, inlet and outlet section to tee at port 1A, Page 8-57

1шт.

10

Supply tube, right-hand, at valve to cylinders, Page 8-11

1шт.

11

Supply tube, left-hand, at valve to cylinders, Page 8-11

1шт.

12

Supply tube, right-hand rod end, Page 8-11

1шт.

13

Lift tube, left-hand rod end, Page 8-11

1шт.

14

Lift tube, right-hand closed end, Page 8-11

1шт.

15

Lift tube, left-hand closed end, Page 8-11

1шт.

16

Hose, at cylinders, Page 8-11

1шт.

17

Formed tube, right-hand, cylinder closed end, Page 8-11

1шт.

18

Formed tube, left-hand, cylinder closed end, Page 8-11

1шт.

19

Formed tube, right-hand, cylinder rod end, Page 8-11

1шт.

20

Formed tube, left-hand, cylinder rod end, Page 8-11

1шт.

21

Supply tube, right-hand, Page 8-13

1шт.

22

Supply tube, left-hand, Page 8-13

1шт.

23

Hose, tube to cylinder, Page 8-13

1шт.

24

Hose, remote control to hose separator, hydraulic reservoir and pressure reducing valve ports, Page 8-53, 8-55

1шт.

25

Formed tube, hose separator to hose at hydraulic reservoir, Page 8-69

1шт.

26

Hose, formed tube to hydraulic reservoir, Page 8-69

1шт.

27

Formed tube, bucket cylinder, closed end, Page 8-13

1шт.

28

Hose, pressure reducing valve to tube at accumulator, Page 8-69

1шт.
