Артикул
Название
Примечание
Количество
REF
INSTRUCTION

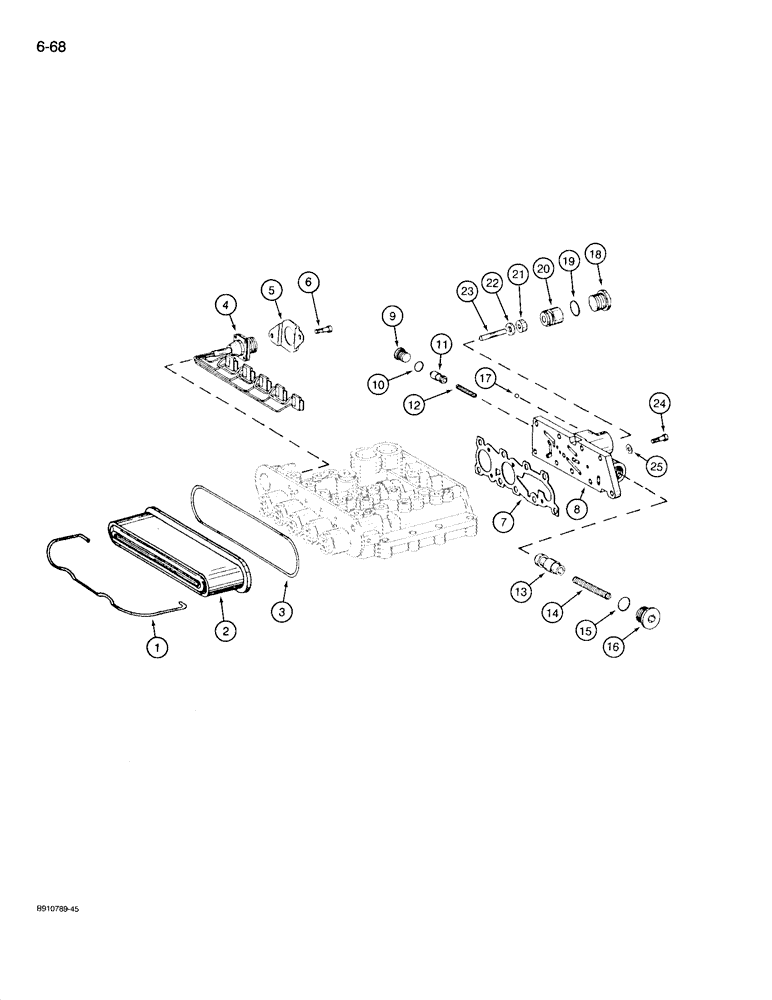

TRANSMISSION ASSEMBLY - see Figure 6-8 for correct transmission and parts list information, Includes: Ref. 1 - 25
1шт.
100333A1
VALVE
ASSEMBLY - transmission control, includes all Refs. on this Figure and Figure 6-66, Includes: Ref. 1 - 25
1шт.
1
100361A1
CLAMP
- wire, solenoid cover
1шт.
2
100360A1
COVER
- solenoid
1шт.
3
E135034
O-RING,5.7mm Thk x 164.2mm ID
SEAL - solenoid cover
1шт.
4
100357A1
HARNESS
- transmission control valve
1шт.
5
100359A1
LARGE PLATE
BRACKET - harness mounting
1шт.
6
100358A1
SCREW
- cap, special
2шт.
7
100351A1
GASKET
- cover
1шт.
8
100362A1
HOUSING
COVER - valve, front
1шт.
9
100367A1
PLUG
- hex socket, special
1шт.
10
100369A1
O-RING,9.5mm ID x 2mm Width
- plug
1шт.
11
100366A1
PISTON
SPOOL - small, relief
1шт.
12
100368A1
COMPRESSION SPRING
SPRING - small, relief spool
1шт.
13
100370A1
PISTON
SPOOL - large, relief
1шт.
14
N14721
SPRING
- large, relief spool
1шт.
15
S300495
O-RING,2mm Thk x 15mm ID
- plug
1шт.
16
934164R1
PLUG,Hex Soc, M18 x 1.5
- hex socket, 18 mm - 1.5
1шт.
17
S300552
BALL
- valve cover
4шт.
18
S301601
PLUG
- hex, special, if used
1шт.
19
S301602
O-RING,2mm Thk x 17mm ID
O-RING - plug, if used
1шт.
20
100364A1
PISTON
- 20.5, if used
1шт.
20
100365A1
PISTON
- 21.5, if used
1шт.
21
100342A1
PISTON
SHIM - piston
1шт.
Is not used for this application.
1шт.
22
S301604
SHIM
- 2.0 mm thick, if used
1шт.
22
S301605
SHIM
- 3.0 mm thick, if used
1шт.
22
S301606
SHIM
- 4.0 mm thick, if used
1шт.
22
S301607
SHIM
- 6.0 mm thick, if used
1шт.
22
S301608
SHIM
- 8.0 mm thick, if used
1шт.
23
S301603
NEEDLE
PLUNGER - valve
1шт.
24
100363A1
SCREW
BOLT - hex socket, 6 - 1 x 18 mm, special
9шт.
25
3078026R1
WASHER,M6.4
- flat, special
9шт.
Выбрано товаров: 33
