Запчасти Case 721 (6-66) - TRANSMISSION ASSEMBLY, CONTROL VALVE, P.I.N. JAK0022758 & AFTER (06) - POWER TRAIN

REF

INSTRUCTION

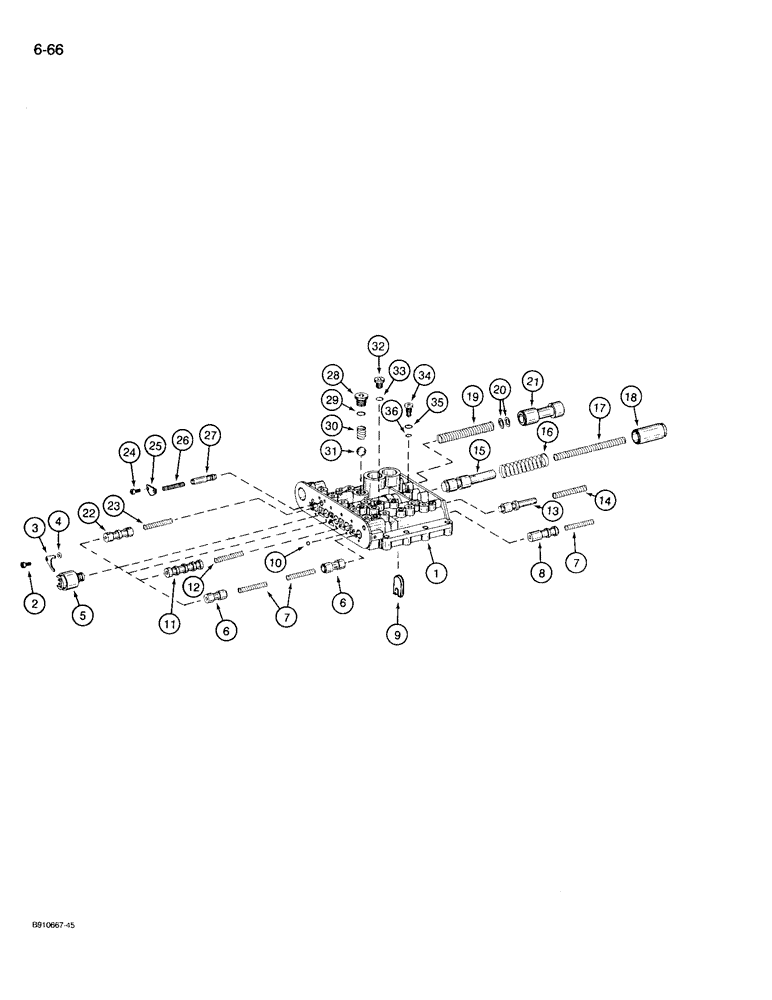

TRANSMISSION ASSEMBLY - see Figure 6-8 for correct transmission and parts list information, Includes: Ref. 1 - 36

1шт.

100333A1

VALVE

ASSEMBLY - transmission control, includes all Refs. on this Figure and Figure 6-68, Includes: Ref. 1 - 36

1шт.

1

100334A1

HOUSING

BODY - transmission control valve

1шт.

2

864-5012

HEX SOC SCREW,M5 x 12mm, Cl 8.8

SCREW - hex socket, 5 - .8 x 12 mm

5шт.

3

S300554

LARGE PLATE

PLATE - support, solenoid valve

5шт.

4

S300530

SHIM,5.5mm ID x 13mm OD x 2mm Thk

Washer - flat, special 2mm Thk

5шт.

5

100356A1

VALVE

- solenoid

5шт.

6

100349A1

PISTON

SPOOL - small, number 1 bore

2шт.

7

S300540

COMPRESSION SPRING

SPRING - valve, number 1 spool

3шт.

8

100350A1

PISTON

SPOOL - large, number 1 bore

1шт.

9

100348A1

LARGE PLATE

SEAT - spring

1шт.

10

S300552

BALL

- valve

10шт.

11

100352A1

PISTON

SPOOL - valve, number 2 bore

1шт.

12

S300540

COMPRESSION SPRING

SPRING - spool, number 2 bore

1шт.

13

100346A1

PISTON

PLUNGER - valve, number 2 bore

1шт.

14

100347A1

COMPRESSION SPRING

SPRING - plunger, number 2 bore

1шт.

15

100342A1

PISTON

PLUNGER - valve, number 3 bore

1шт.

16

100343A1

COMPRESSION SPRING

SPRING - number 3 bore, 77.1 mm long, 21.7 mm O.D.

1шт.

17

100344A1

COMPRESSION SPRING

SPRING - number 3 bore, 124.1 MM long, 10.9 mm O.D.

1шт.

18

100345A1

PISTON

- valve, number 3 bore

1шт.

19

100335A1

COMPRESSION SPRING

SPRING - spool, number 4 bore

1шт.

20

100337A1

SHIM

- spring tension

2шт.

21

100336A1

PISTON

SPOOL - valve, number 4 bore

1шт.

22

100353A1

PISTON

SPOOL - valve, number 5 bore

1шт.

23

S300540

COMPRESSION SPRING

SPRING - spool, number 5 bore

1шт.

24

864-5010

HEX SOC SCREW,M5 x 10mm, Cl 8.8

SCREW, Hex Soc Hd, M5 x 10, 8.8

2шт.

25

100355A1

LARGE PLATE

PLATE - support, reducing valve

1шт.

26

S300550

COMPRESSION SPRING

SPRING - compression, reducing valve

1шт.

27

100354A1

VALVE

- reducing

1шт.

28

934164R1

PLUG,Hex Soc, M18 x 1.5

- 18 mm, valve

2шт.

29

S300495

O-RING,2mm Thk x 15mm ID

- plug

2шт.

30

E135132

SPRING

- valve

2шт.

31

E135050

BALL

- check, 16 mm OD

2шт.

32

A52230

PLUG

- hex socket head, 10 mm

7шт.

33

S300491

O-RING,8mm ID x 1.5mm Width

- plug

7шт.

34

100338A1

PORT

PLUG - orifice, .6 mm, if used

1шт.

34

100339A1

PORT

PLUG - orifice, .7 mm, if used

1шт.

34

100340A1

PORT

PLUG - orifice, .8 mm, if used

1шт.

35

S300491

O-RING,8mm ID x 1.5mm Width

- large, plug

1шт.

36

100341A1

O-RING,6mm ID x 1.5mm Width

- small, plug

1шт.
