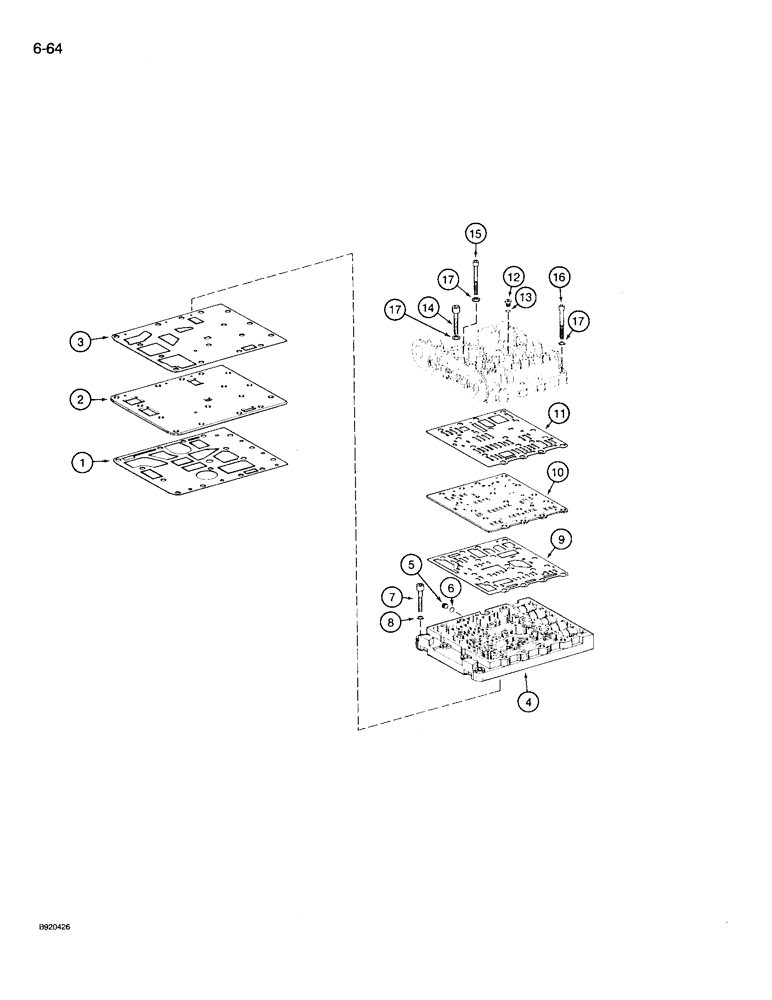

Запчасти Case 721 (6-64) - TRANSMISSION ASSEMBLY, VALVE PLATES AND HYDRAULICS, P.I.N. JAK0022758 & AFTER (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - see Figure 6-8 for correct transmission and parts list information, Includes: Ref. 1 - 17

1шт.

1

103610A1

GASKET,0.35mm Thk

- plate, at transmission housing

1шт.

2

106945A1

COVER

PLATE - valve, transmission housing to channel plate

1шт.

3

103612A1

GASKET,0.35mm Thk

- valve plate to channel plate

1шт.

4

103613A1

LARGE PLATE

PLATE - hydraulic, Serial Range: channel,-valve

1шт.

5

A52230

PLUG

- hex socket, 10 mm - 1

1шт.

6

S300491

O-RING,8mm ID x 1.5mm Width

- plug

1шт.

7

864-8035

HEX SOC SCREW,M8 x 35mm, Cl 8.8

11шт.

8

934033R1

WASHER,M8 x 15 x 2

- flat, special

11шт.

9

103614A1

GASKET

- at channel plate to valve plate

1шт.

10

103615A1

LARGE PLATE

PLATE - valve, channel plate to control valve

1шт.

11

103616A1

GASKET,0.35mm Thk

- at control valve to valve plate

1шт.

12

A52230

PLUG

- hex socket, 10 mm - 1

1шт.

13

S300491

O-RING,8mm ID x 1.5mm Width

- plug

1шт.

14

864-8035

HEX SOC SCREW,M8 x 35mm, Cl 8.8

11шт.

15

100332A1

SCREW

BOLT - hex socket, 8 - 1.25 x 60 mm

1шт.

16

100331A1

SCREW

BOLT - hex socket, 8 - 1.25 x 65 mm

5шт.

17

934033R1

WASHER,M8 x 15 x 2

- flat, special

17шт.
