Артикул
Название
Примечание
Количество
REF
INSTRUCTION

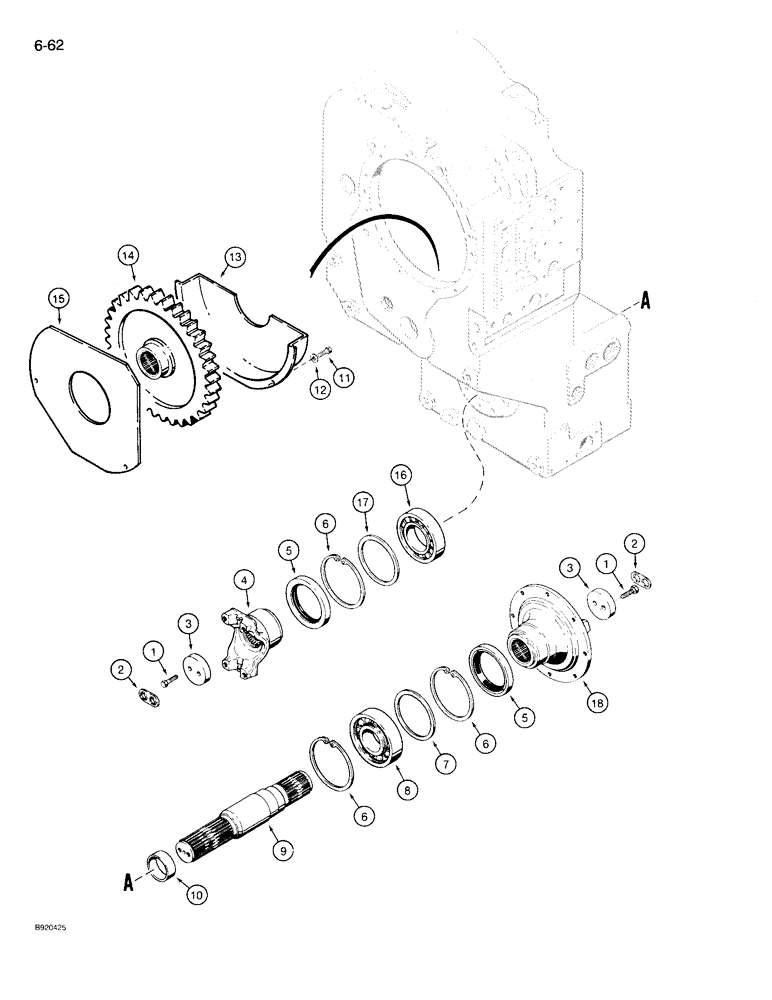

TRANSMISSION ASSEMBLY - see Figure 6-8 for correct transmission and parts list information, Includes: Ref. 1 - 18
1шт.
1
626-10030
BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd
- hex, 10 - 1.5 x 30 mm, class 10.9
4шт.
2
E135165
PLATE
PLATE - locking
2шт.
3
E135181
WASHER
RETAINER - flange
2шт.
4
107936A1
SHIN
FLANGE - output, rear
1шт.
5
E135151
OIL SEAL
- oil, flange
2шт.
6
S300472
CIRCLIP
RING - snap, internal
3шт.
7
E135260
NOTCHED DISK
SHIM - 0.2 mm thick, bearing
1шт.
7
S300473
SHIM,0.3mm Thk
Bearing 0.3mm Thk
1шт.
7
S300474
SHIM,0.5mm Thk
Bearing 0.5mm Thk
1шт.
7
E135096
SHIM,100mm ID x 119.8mm OD x 1.5mm Thk
Bearing 1.5mm Thk
1шт.
7
E135095
SHIM,1.6mm Thk
Bearing 1.6mm Thk
1шт.
7
E135094
SHIM,100mm ID x 119.8mm OD x 1.7mm Thk
Bearing 1.7mm Thk
1шт.
7
E135093
SHIM,100mm ID x 119.8mm OD x 1.8mm Thk
Bearing 1.8mm Thk
1шт.
8
L31494
BALL BEARING
- ball
1шт.
9
E135255
SHAFT
- output
1шт.
10
E135112
BUSHING
- output shaft
1шт.
11
613-8016
BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd
- hex, 8 - 1.25 x 16 mm
2шт.
12
895-10008
WASHER,M8 x 16 x 1.6
- flat, 9 x 17 x 1.6 mm
2шт.
13
S300451
COVER
- output gear
1шт.
14
E135256
PINION
GEAR - output
1шт.
15
E135245
PLATE
- output gear
1шт.
16
S300471
BEARING, ROLLER,65 mm ID x 120 mm OD x 23 mm
BEARING - roller
1шт.
17
E135164
RACE
- bearing
1шт.
18
107937A1
SHIN
FLANGE - output, parking brake, front
1шт.
Выбрано товаров: 25
