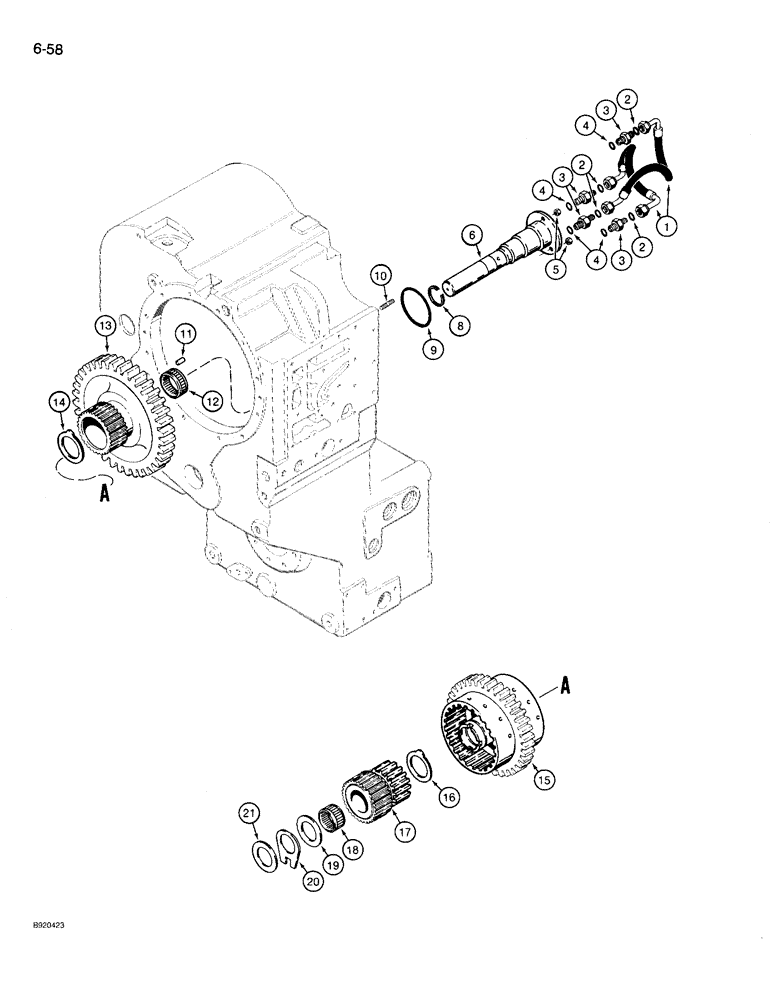

Запчасти Case 721 (6-58) - TRANSMISSION ASSEMBLY, THIRD AND FOURTH CLUTCHES, P.I.N. JAK0022758 & AFTER (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - see Figure 6-8 for correct transmission and parts list information, Includes: Ref. 1 - 21

1шт.

1

S300584

HOSE

- 516 mm long, third and fourth clutches

2шт.

2

S300587

O-RING,12.4mm ID x 1.78mm Width

- adapter, hose end 9 Replaced S300586) O-RING - ADAPTER, HOSE SIDE.

4шт.

3

S301961

ADAPTER

- hose

4шт.

4

S300586

O-RING,2.4mm Thk x 13.3mm ID, 70 Duro

- adapter, transmission end (Replaced S300587) 0-RING - ADAPTER, TRANS. SIDE.

4шт.

5

825-1408

NUT,M8, Cl 8

2шт.

6

E136117

AXLE

- third and fourth clutches

1шт.

8

E135145

RING,35.2mm ID x 38mm OD x 2mm Thk

- piston, axle shaft

3шт.

9

S300460

O-RING,3mm Thk x 49mm ID

- axle

1шт.

10

E135084

STUD

- 8 mm - 1.25 x 18 mm

2шт.

11

E135158

BEARING, ROLLER, CYL,Needle, 15.6mm OD x 31mm L

NEEDLE - bearing, 15.6 mm OD x 31 mm

12шт.

12

E135152

NEEDLE BEARING CAGE,45mm ID x 53mm OD x 27.8mm W

BEARING - roller, 45 mm ID x 53 mm OD x 27.8 mm

1шт.

13

E135275

GEAR

- third

1шт.

14

E135121

WASHER, THRUST

WASHER - thrust, tabbed

1шт.

15

NSS

NOT SOLD SEPARAT

PACK - clutch, third and fourth, see Figure 6-60 for components

1шт.

16

E135122

WASHER, THRUST

WASHER - thrust, tabbed

1шт.

17

E135263

GEAR

- fourth

1шт.

18

E135147

NEEDLE BEARING CAGE,35mm ID x 50.1mm OD x 30.4mm W

BEARING - roller, 35 mm ID x 50.1 mm OD x 30.4 mm

1шт.

19

E135120

WASHER

- thrust, 35 mm ID x 70 mm OD x 1.5 mm

1шт.

20

106918A1

THRUST WASHER

WASHER - thrust, notched

1шт.

21

E135097

SHIM,35.1mm ID x 70mm OD x 0.2mm Thk

(35.1 mm ID x 70 mm OD) 0.2mm Thk

1шт.

21

E135098

SHIM,0.4mm Thk

(35.1 mm ID x 70 mm OD) 0.4mm Thk

1шт.

21

E135099

SHIM,0.6mm Thk

(35.1 mm ID x 70 mm OD) 0.6mm Thk

1шт.

21

E135100

SHIM,35.1mm ID x 70mm OD x 0.8mm Thk

(35.1 mm ID x 70 mm OD) 0.8mm Thk

1шт.

21

E135101

SHIM,1.0mm Thk

(35.1 mm ID x 70 mm OD) 1.0mm Thk

1шт.

21

E135102

SHIM,1.2mm Thk

(35.1 mm ID x 70 mm OD) 1.2mm Thk

1шт.

21

E135103

SHIM,1.4mm Thk

(35.1 mm ID x 70 mm OD) 1.4mm Thk

1шт.

21

E135104

SHIM,1.6mm Thk

(35.1 mm ID x 70 mm OD) 1.6mm Thk

1шт.

21

E135105

SHIM,1.8mm Thk

(35.1 mm ID x 70 mm OD) 1.8mm Thk

1шт.

21

E135106

SHIM,2.0mm Thk

(35.1 mm ID x 70 mm OD) 2.0mm Thk

1шт.

21

E135107

SHIM,2.2mm Thk

(35.1 mm ID x 70 mm OD) 2.2mm Thk

1шт.

21

E135108

SHIM,2.4mm Thk

(35.1 mm ID x 70 mm OD) 2.4mm Thk

1шт.

21

E135109

SHIM,2.6mm Thk

(35.1 mm ID x 70 mm OD) 2.6mm Thk

1шт.

21

E135110

SHIM,2.8mm Thk

(35.1 mm ID x 70 mm OD) 2.8mm Thk

1шт.
