(6-56) - TRANSMISSION ASSEMBLY, REVERSE AND SECOND CLUTCH PACK, P.I.N JAK0022758

Запчасти Case 721 (6-56) - TRANSMISSION ASSEMBLY, REVERSE AND SECOND CLUTCH PACK, P.I.N JAK0022758 (06) - POWER TRAIN

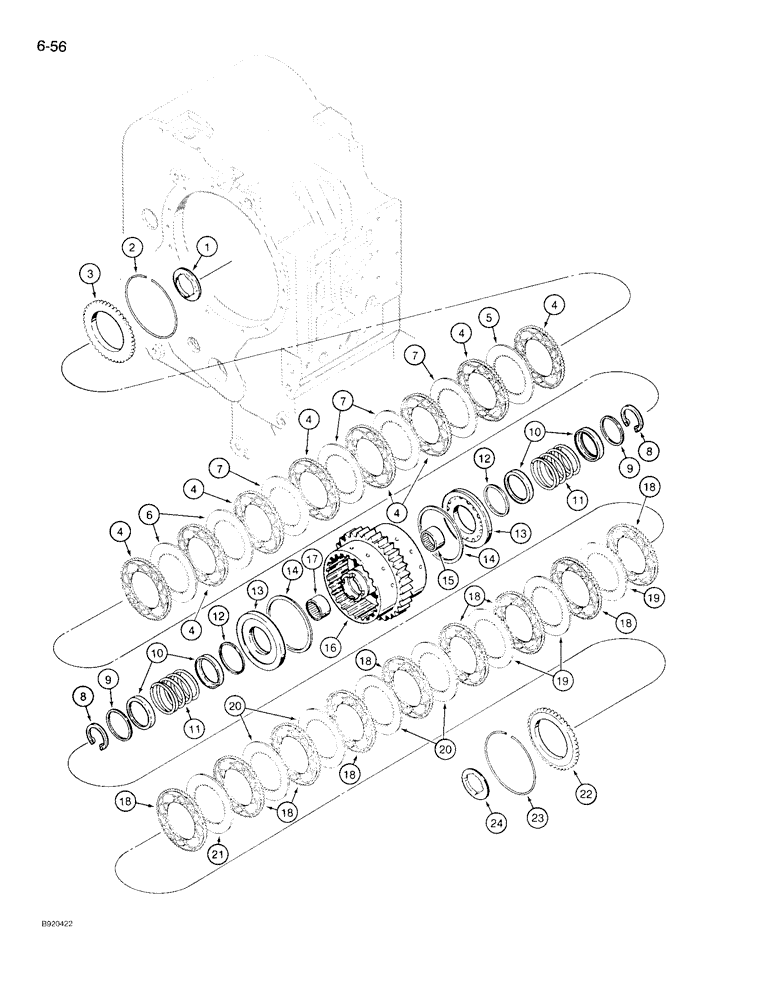

Схема запчастей Case 721 - (6-56) - TRANSMISSION ASSEMBLY, REVERSE AND SECOND CLUTCH PACK, P.I.N JAK0022758 (06) - POWER TRAIN
13
20
10
13
10
9
4
19
4
5
18
18
7
1
9
22
18
14
4
23
18
4
11
19
6
4
18
18
8
14
21
8
3
12
16
15
2
12
18
4
20
11
7
7
17
24
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - see Figure 6-8 for correct transmission and parts list information, Includes: Ref. 1 - 24

1шт.

NSS

NOT SOLD SEPARAT

PACK - clutch, reverse and second clutches, Includes: Ref. 1 - 24

1шт.

1

E135218

THRUST RING

PLATE - thrust

1шт.

2

E135125

RING, SNAP

RING - retaining, internal

1шт.

3

E135261

NOTCHED DISK

PLATE - pressure, second gear end

1шт.

4

E135005

CLUTCH PLATE,109mm ID x 177.5mm OD x 2mm Thk

DISC - clutch, fibre

8шт.

5

E135271

NOTCHED DISK

DISC - 2.0 mm thick, clutch, if used

1шт.

5

E135272

NOTCHED DISK

DISC - 2.5 mm thick, steel, clutch, if used

1шт.

6

E135272

NOTCHED DISK

DISC - 2.5 mm thick, steel, clutch

2шт.

7

E135271

NOTCHED DISK

DISC - 2.0 mm thick, steel, clutch

4шт.

8

E135019

CIRCLIP

RING - snap, external

2шт.

9

E135221

GUIDE BUSHING,58.3mm ID x 65mm OD x 2.5mm L

RING - guide

2шт.

10

E135220

GUIDE RING

GUIDE - spring

4шт.

11

E135131

SPRING

- clutch

2шт.

12

106876A1

SEALING RING,60mm ID x 2.5mm Thk

RING - seal, piston ID

2шт.

13

S301950

PISTON

- clutch

2шт.

14

199079A1

SEALING RING

RING - seal, piston OD (Replaced E135140)for L129912 Transmission at S/N 28462

2шт.

15

E135045

BEARING, NEEDLE,Needle, 40mm ID x 47mm OD x 26mm W

BEARING - needle, 40 mm ID x 47 mm OD x 26 mm

1шт.

16

183210A1

PINION CARRIER

HOUSING - reverse and second clutch (Replaced 109450A1)

1шт.

17

E135043

NEEDLE BEARING,Needle, 35mm ID x 42mm OD x 26mm W

BEARING - needle, 35 mm ID x 42 mm OD x 26 mm

1шт.

18

E135005

CLUTCH PLATE,109mm ID x 177.5mm OD x 2mm Thk

DISC - clutch, fibre

9шт.

19

E135272

NOTCHED DISK

DISC - 2.5 mm thick, steel, clutch

3шт.

20

E135271

NOTCHED DISK

DISC - 2.0 mm thick, steel, clutch

4шт.

21

E135271

NOTCHED DISK

DISC - 2.0 mm thick, steel, clutch, if used

1шт.

21

E135272

NOTCHED DISK

DISC - 2.5 mm thick, steel, clutch, if used

1шт.

22

E135261

NOTCHED DISK

PLATE - pressure, reverse gear end

1шт.

23

E135125

RING, SNAP

RING - retaining, internal

1шт.

24

E135218

THRUST RING

PLATE - thrust

1шт.

Выбрано товаров: 28
