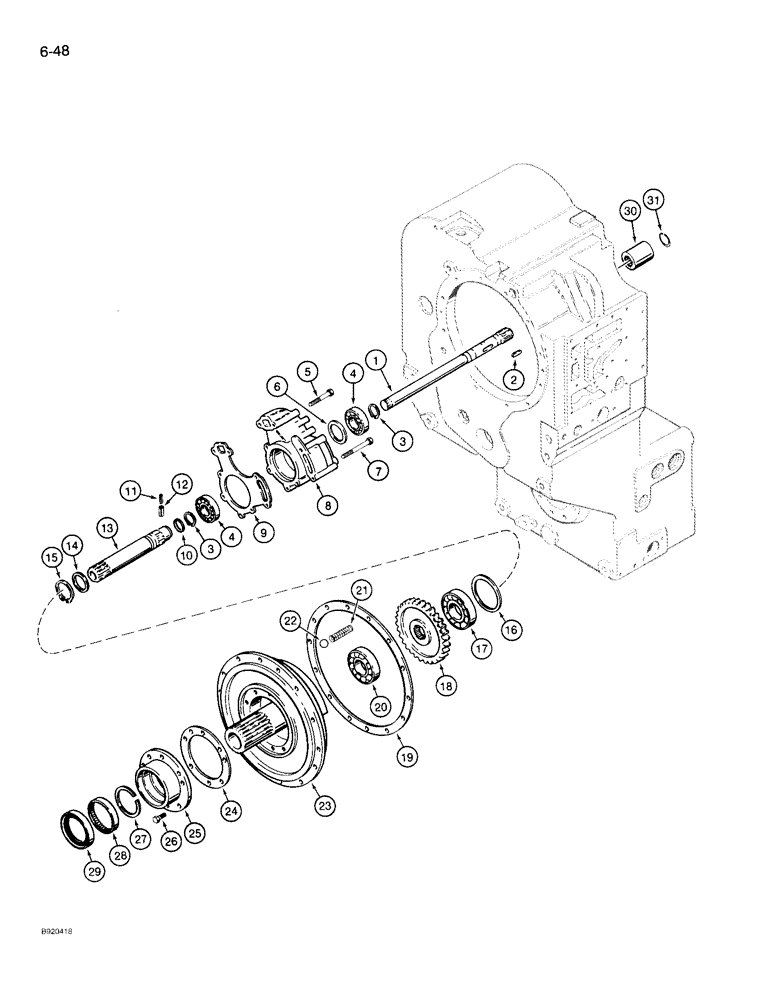

Запчасти Case 721 (6-48) - TRANSMISSION ASSEMBLY, INPUT GEAR, PUMP, AND OUTPUT SHAFT, P.I.N. JAK0022758 & AFTER (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - see Figure 6-8 for correct transmission and parts list information, Includes: Ref. 1 - 31

1шт.

1

106805A1

SHAFT

- pump output

1шт.

2

E136101

KEYWAY

KEY - shaft

1шт.

3

933086R1

SNAP RING,M30, Ext

2шт.

4

S300449

BEARING, BALL,30 mm ID x 62 mm OD x 16 mm

BEARING - ball, pump

2шт.

5

827-8085

BOLT,Hex, M8 x 1.25 x 85mm, Cl 10.9

- hex, 8 - 1.25 x 85 mm, Class 10.9

4шт.

6

E136102

BLOCK

SHIM - bearing, 1.0 mm thick

1шт.

6

E136103

BLOCK

SHIM - bearing, 0.9 mm thick

1шт.

6

E136104

BLOCK

SHIM - bearing, 0.8 mm thick

1шт.

6

E136105

BLOCK

SHIM - bearing, 0.7 mm thick

1шт.

6

E136106

SHIM

SHIM - bearing, 0.6 mm thick

1шт.

6

E136107

BLOCK

SHIM - bearing, 0.5 mm thick

1шт.

6

E136108

BLOCK

SHIM - bearing, 0.4 mm thick

1шт.

6

E136109

BLOCK

SHIM - bearing, 0.3 mm thick

1шт.

6

E136110

BLOCK

SHIM - bearing, 0.2 mm thick

1шт.

6

E136111

BLOCK

SHIM - bearing, 0.1 mm thick

1шт.

7

813-8115

BOLT,Hex, M8 x 1.25 x 115mm, Cl 8.8

- hex, 8 - 1.25 x 115 mm

4шт.

8

E136100

PUMP

- transmission

1шт.

9

S301947

GASKET

GASKET - pump

1шт.

10

E135036

O-RING,Square, 2mm Thk x 30mm ID

SEAL - square section, x 2 30 mm ID

1шт.

11

E135026

PIN,1.5mm OD x 5mm L, Slotted

- roll, 1.5 OD x 5 mm

1шт.

12

E135028

PIN, SPLIT (COTTER)

PIN - roll, 2.5 OD x 5 mm

1шт.

13

S301945

SHAFT

- input, pump

1шт.

14

E135144

RING, SNAP

RING - piston, 41.8 mm ID x 45 mm OD x 3 mm

1шт.

15

A48760

SNAP RING,M40, Ext

RING - snap, external, 40 mm x 1.75

1шт.

16

E135179

SHIM,70mm ID x 89mm OD x 0.3mm Thk

Bearing 0.3mm Thk

1шт.

16

E135180

SHIM,0.5mm Thk

Bearing 0.5mm Thk

1шт.

16

E135178

SHIM,70mm ID x 89mm OD x 0.6mm Thk

Bearing 0.6mm Thk

1шт.

16

E135177

SHIM,0.7mm Thk

Bearing 0.7mm Thk

1шт.

16

E135176

SHIM,70mm ID x 89mm OD x 0.8mm Thk

Bearing 0.8mm Thk

1шт.

16

E135175

SHIM,70mm ID x 89mm OD x 0.9mm Thk

Bearing 0.9mm Thk

1шт.

16

E135174

SHIM,70mm ID x 89mm OD x 1mm Thk

Bearing 1.0mm Thk

1шт.

16

E135173

SHIM,1.1mm Thk

Bearing 1.1mm Thk

1шт.

16

E135172

SHIM,70mm ID x 89mm OD x 1.2mm Thk

Bearing 1.2mm Thk

1шт.

16

S300446

SHIM,1.3mm Thk

Bearing 1.3mm Thk

1шт.

16

E135170

SHIM,70mm ID x 89mm OD x 1.4mm Thk

Bearing 1.4mm Thk

1шт.

17

S300445

BEARING, BALL,40 mm ID x 90 mm OD x 23 mm

BEARING - ball

1шт.

18

E135251

GEAR

- input

1шт.

19

S301946

GASKET

GASKET - oil feed flange

1шт.

20

S300447

ROLLER BEARING,45 mm ID x 85 mm OD x 19 mm

BEARING - roller

1шт.

21

E135136

SPRING

- ball check

1шт.

22

E135051

BALL

- check, 20 mm

1шт.

23

E135252

FLANGE

- oil feed

1шт.

24

S301514

GASKET

- hub

1шт.

25

E135202

HUB

- feed flange

1шт.

26

826-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

- hex, 8 - 1.25 x 30 mm, Class 10.9

8шт.

27

E135143

RING,Locking, 65.4mm ID x 70mm OD x 3.5mm Thk

- piston, 70 OD x 2.3 thick x 3.5 mm

1шт.

28

E135146

NEEDLE ROLLER,Needle, 75mm ID x 83mm OD x 16mm W

SLEEVE - needle

1шт.

29

S300448

SEAL

- oil

1шт.

30

106837A1

COUPLING

- drive

1шт.

31

106838A1

CIRCLIP

RING - snap, internal, 28 mm x 1.5 thick

1шт.
