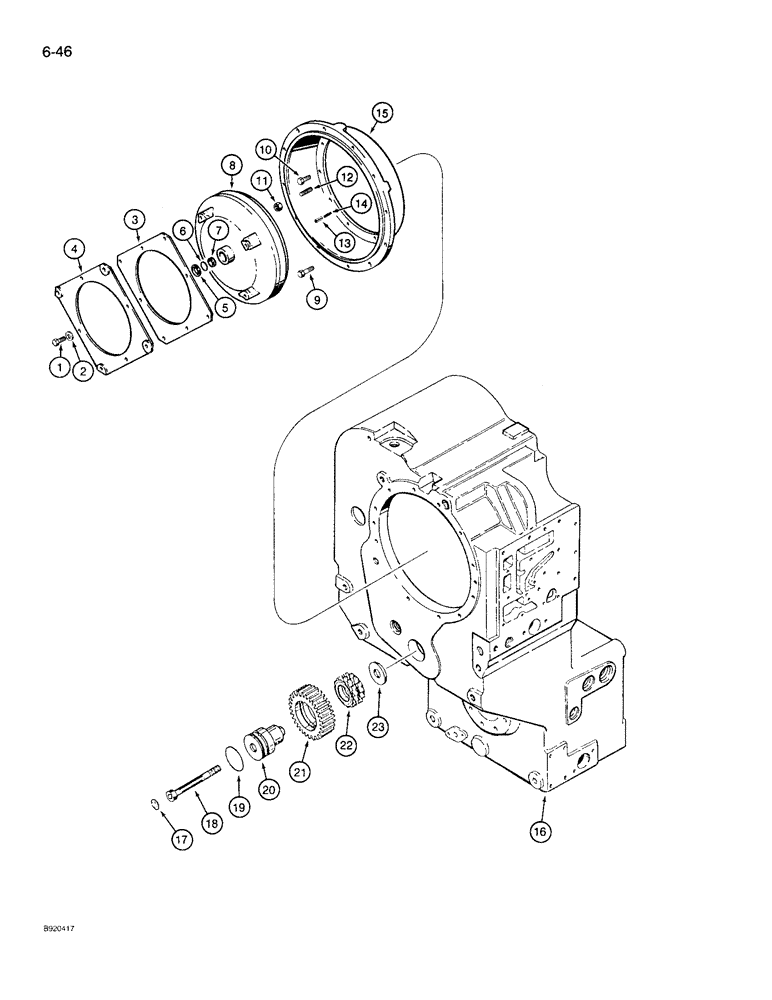

Запчасти Case 721 (6-46) - TRANSMISSION ASSEMBLY, IDLER GEAR, CONVERTER AND COVER, P.I.N. JAK0022758 & AFTER (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - see Figure 6-8 for correct transmission and parts list information, Includes: Ref. 1 - 23

1шт.

1

111981A1

BOLT

- hex, 10 - 1.5 x 20 mm, Class 10.9 (Replaced 626-10020) (18 mm Bolt. the 20 mm bolt would not torque properly)

4шт.

2

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

4шт.

3

S301944

PLATE

- flex, plain

1шт.

4

E135238

PLATE

- flex, stepped

1шт.

5

R16289

SNAP RING,1.06", Int, #106

Ring, Snap, , converter 1.06", Int, #106

1шт.

6

E135035

O-RING,25 mm ID

SEAL - x 3, O-ring 25 mm ID

1шт.

7

E135167

WASHER

- sealing

1шт.

8

107780A1

CONVERTER

- transmission

1шт.

8

107780A1R

REMAN-TORQUE CONVERT

Remanufactured, N.A. Only

1шт.

8

107780A1C

CORE-TORQUE CONVERTR

Return Number, N.A. Only

1шт.

9

826-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

- hex, 10 - 1.5 x 50 mm, class 10.9

2шт.

10

628-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

11шт.

11

825-1010

NUT,M10, Cl 8

- hex, 10 mm - 1.5

1шт.

12

E135083

STUD

- 10 - 1.5 x 30 mm

1шт.

13

E135027

PIN, SPLIT (COTTER)

PIN - roll, 10 mm OD x 28 mm

2шт.

14

E135025

PIN

- roll, 6 mm OD x 28 mm

2шт.

15

E135283

COVER

HOUSING - converter

1шт.

16

106839A1

HOUSING

- transmission

1шт.

17

106874A1

BLOCK

PLUG - 25 mm, expansion

1шт.

18

106872A1

HEX SOC SCREW

- hex socket, 12 - 1.75 x 100 mm, Class 10.9

1шт.

19

S300455

O-RING,3mm Thk x 57mm ID

- stub axle

1шт.

20

106869A1

AXLE

- stub, idler gear

1шт.

21

106871A1

PINION

GEAR - idler

1шт.

22

S300458

SET

KIT - needle bearing

1шт.

23

106870A1

THRUST WASHER

- thrust

1шт.
