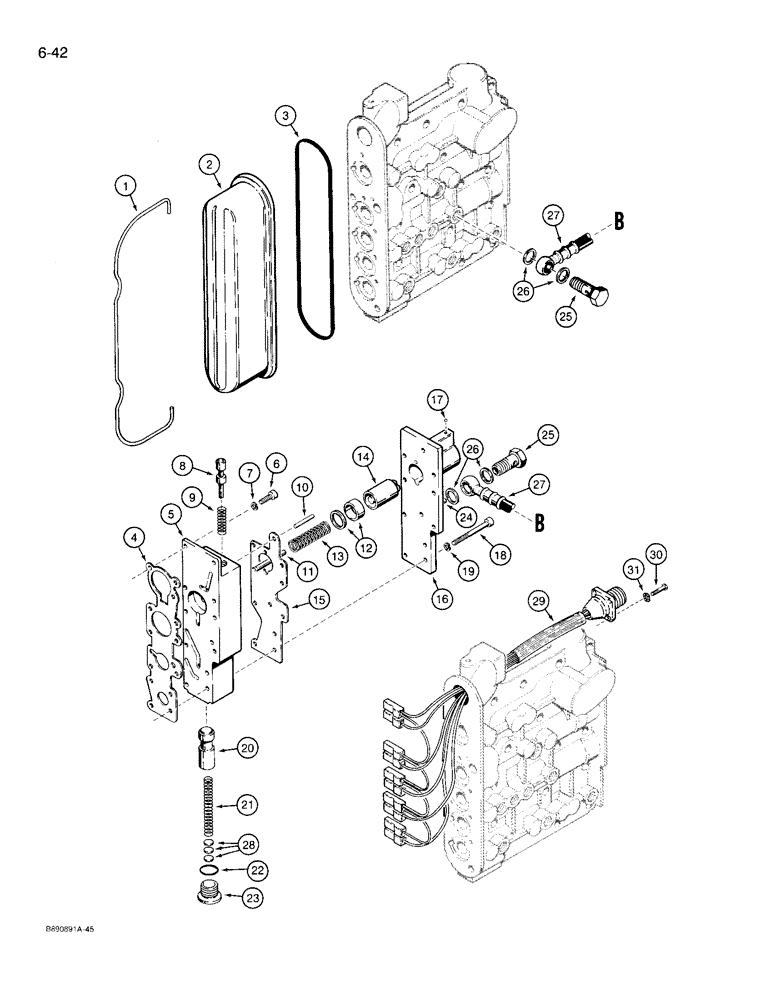

Запчасти Case 721 (6-42) - TRANSMISSION ASSEMBLY, CONTROL VALVE, PRIOR TO P.I.N JAK0022758 (06) - POWER TRAIN

S300492

VALVE

ASSEMBLY - transmission control, see Figures 6-38 and 6-40 for additional components, Includes: Ref. 1 - 31

1шт.

1

E135183

CLAMP

- wire, solenoid cover

1шт.

2

E135190

PROTECTIVE COVER

COVER - solenoid

1шт.

3

E135034

O-RING,5.7mm Thk x 164.2mm ID

SEAL - solenoid cover

1шт.

Part of seal and gasket kit, P/N S300588 and Figure 6-2 -6-42 and 7-2

1шт.

4

S300545

GASKET

- section, intermediate valve

1шт.

Part of seal and gasket kit, P/N S300588 and Figure 6-2 -6-42 and 7-2

1шт.

5

S300556

LARGE PLATE

SECTION - valve, intermediate

1шт.

6

S300557

SCREW

BOLT - hex, 5 mm - 0.8 x 16 mm

2шт.

7

892-1005

LOCK WASHER

WASHER - lock, 5 mm

2шт.

8

E135000

VALVE POPPET

SPOOL - relief

1шт.

9

E135139

SPRING

- relief spool, 9.45 mm OD x 29.9 mm

1шт.

10

S300558

DOWEL

PIN - dowel, 4 mm OD x 25 mm

1шт.

11

S300563

NEEDLE

ROLLER - needle

1шт.

12

S300564

SHIM

- 2.0 mm thick, if used

1шт.

12

S300565

SHIM

- 1.0 mm thick, if used

1шт.

12

S300566

BUSHING

SHIM - 7.0 mm thick, if used

1шт.

13

E135133

SPRING

- piston

1шт.

14

S300562

PISTON

- valve

1шт.

15

S300559

GASKET

- cover

1шт.

Part of seal and gasket kit, P/N S300588 and Figure 6-2 -6-42 and 7-2

1шт.

16

S300560

COVER

- valve

1шт.

17

S300561

BALL

- cover

1шт.

18

E135073

BOLT

- hex, 5 mm - 0.8 x 50 mm

9шт.

19

892-1005

LOCK WASHER

WASHER - lock, 5 mm

9шт.

20

S300573

PISTON

SPOOL - valve, intermediate

1шт.

21

N14721

SPRING

- valve

1шт.

22

S300495

O-RING,2mm Thk x 15mm ID

- plug

1шт.

Part of seal and gasket kit, P/N S300588 and Figure 6-2 -6-42 and 7-2

1шт.

23

934164R1

PLUG,Hex Soc, M18 x 1.5

- hex, 18 mm - 1.5

1шт.

24

E135212

DIAPHRAGM

ORIFICE - hex socket headless, 5 mm - 0.8 x 6 mm x 0.7

1шт.

25

E135088

BANJO BOLT

CONNECTOR - hydraulic, hex head

2шт.

26

A52231

SEALING RING

RING - seal, plug

4шт.

Part of seal and gasket kit, P/N S300588 and Figure 6-2 -6-42 and 7-2

1шт.

27

S300572

HOSE

- valve

1шт.

28

NSS

NOT SOLD SEPARAT

SHIM - intermediate valve spool

1шт.

29

S300555

HARNESS

- transmission control valve

1шт.

30

E135287

SCREW,Pan Slotted, M14 x 12mm

- cap, 4 mm x 12 mm

4шт.

31

E135286

WASHER

- wave

4шт.

S300588

SEAL PACKAGE

KIT - seal and gasket, Includes Refs. 3, 4, 15, 22 and 26 Figures 6-2 - 6-42 and 7-2

1шт.
