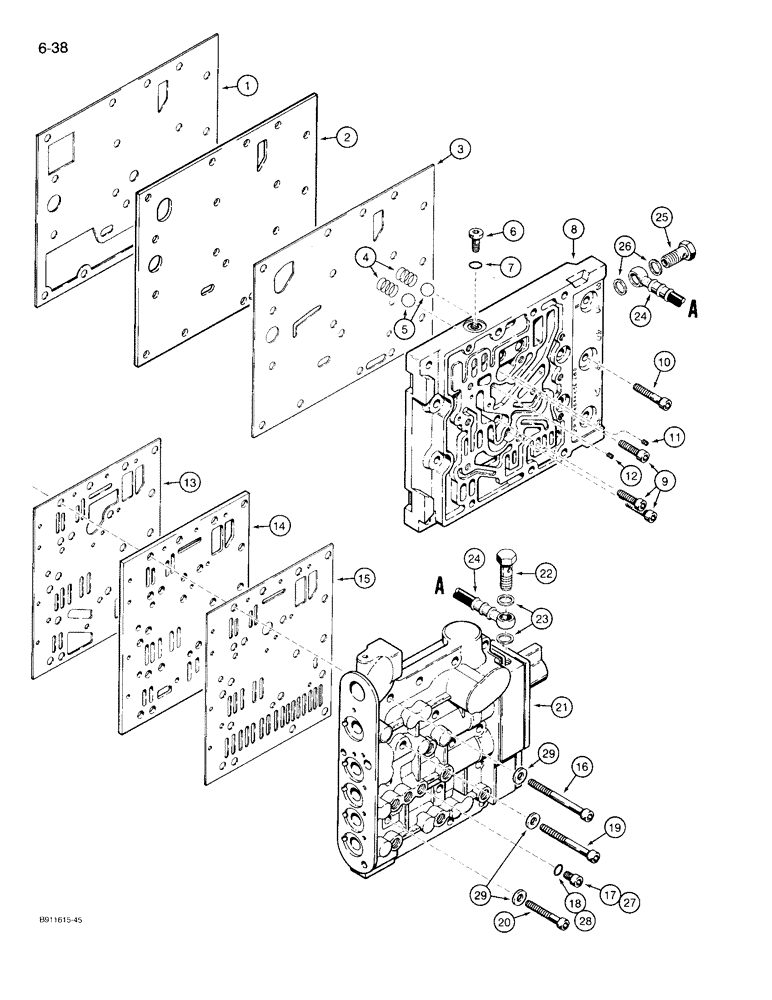

Запчасти Case 721 (6-38) - TRANSMISSION ASSEMBLY, VALVE PLATES AND HYDRAULICS, PRIOR TO JAK0022758 (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - see Figure 6-8 for correct transmission and parts list information, Includes: Ref. 1 - 29

1шт.

1

188281A1

GASKET

- plate, at transmission housing (Replaced S300482)

1шт.

Part of seal and gasket kit, P/N S300588 and Figure 6-2 -6-42 and 7-2

1шт.

2

S300483

LARGE PLATE

PLATE - valve, transmission housing to channel plate

1шт.

3

S300484

GASKET

- valve plate to channel plate

1шт.

Part of seal and gasket kit, P/N S300588 and Figure 6-2 -6-42 and 7-2

1шт.

4

E135132

SPRING

- ball check

2шт.

5

E135050

BALL

- check, 16 mm OD

2шт.

6

A52230

PLUG

- hex socket, 10 mm - 1

1шт.

7

S300491

O-RING,8mm ID x 1.5mm Width

- plug

1шт.

Part of seal and gasket kit, P/N S300588 and Figure 6-2 -6-42 and 7-2

1шт.

8

S300485

PLATE

- hydraulic, Serial Range: channel,-valve

1шт.

9

864-8030

HEX SOC SCREW,M8 x 30mm, Cl 8.8

3шт.

10

864-8040

HEX SOC SCREW,M8 x 40mm, Cl 8.8

BOLT - hex socket, 8 mm - 1.25 x 40 mm

9шт.

11

N14709

SET SCREW,M5 x 6mm

- set, hex socket head, 5 mm x 6 mm

1шт.

12

E135207

RESTRICTOR

PLUG - orifice, hex socket headless

1шт.

13

S300487

GASKET

- at channel, Serial Range: plate-valve

1шт.

Part of seal and gasket kit, P/N S300588 and Figure 6-2 -6-42 and 7-2

1шт.

14

S300488

LARGE PLATE

PLATE - valve, channel plate to control valve

1шт.

15

S300489

GASKET

- at control valve to channel plate

1шт.

Part of seal and gasket kit, P/N S300588 and Figure 6-2 -6-42 and 7-2

1шт.

16

864-8080

HEX SOC SCREW,M8 x 80mm, Cl 8.8

BOLT - hex socket, 8 mm - 1.25 x 80 mm

6шт.

17

A52230

PLUG

- hex socket, 10 mm - 1

1шт.

18

S300491

O-RING,8mm ID x 1.5mm Width

- plug

1шт.

Part of seal and gasket kit, P/N S300588 and Figure 6-2 -6-42 and 7-2

1шт.

19

864-8070

HEX SOC SCREW,M8 x 70mm, Cl 8.8

BOLT - hex socket, 8 mm - 1.25 x 70 mm

1шт.

20

864-8050

HEX SOC SCREW,M8 x 50mm, Cl 8.8

BOLT - hex socket, 8 mm - 1.25 x 50 mm

9шт.

21

S300492

VALVE

ASSEMBLY - transmission control, see Figures 6-40 and 6-42 for additional components, Includes: Ref. 22 - 29

1шт.

22

E135090

BOLT

CONNECTOR - hydraulic, hex head, at control valve

1шт.

23

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

Connector M12 x 15.5 x 1.5

2шт.

Part of seal and gasket kit, P/N S300588 and Figure 6-2 -6-42 and 7-2

1шт.

24

S300574

HOSE

- hydraulic

1шт.

25

E135088

BANJO BOLT

CONNECTOR - hydraulic, hex head

1шт.

26

A52231

SEALING RING

RING - seal, connector

2шт.

Part of seal and gasket kit, P/N S300588 and Figure 6-2 -6-42 and 7-2

1шт.

27

A52230

PLUG

- hex socket, 10 mm - 1

6шт.

28

S300491

O-RING,8mm ID x 1.5mm Width

- plug

6шт.

Part of seal and gasket kit, P/N S300588 and Figure 6-2 -6-42 and 7-2

1шт.

29

934033R1

WASHER,M8 x 15 x 2

- flat, special

16шт.

S300588

SEAL PACKAGE

KIT - seal and gasket, Includes Refs. 1, 3, 7, 13, 15, 18, 23, 26 and 28 Figures 6-2 - 6-42 and 7-2

1шт.
