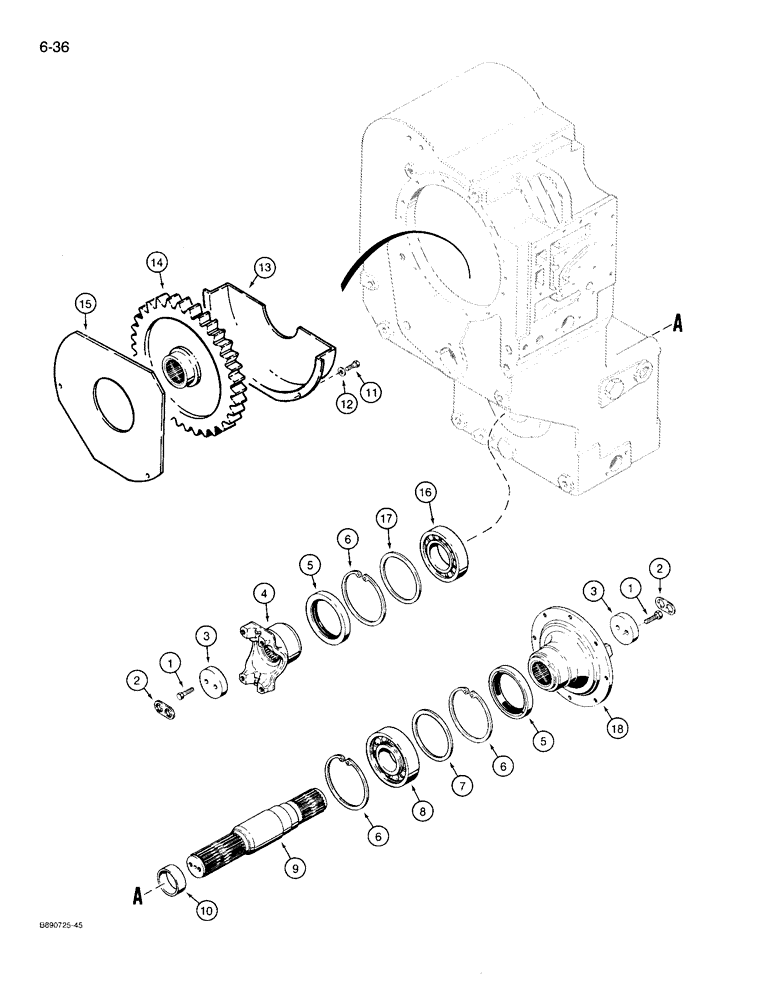

Запчасти Case 721 (6-36) - TRANSMISSION ASSEMBLY, OUTPUT SHAFT AND GEAR, PRIOR TO P.I.N JAK0022758 (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - see Figure 6-8 for correct transmission and parts list information, Includes: Ref. 1 - 18

1шт.

1

626-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

- hex, 10 - 1.5 x 30 mm, class 10.9

4шт.

2

E135165

PLATE

PLATE - locking

2шт.

3

E135181

WASHER

RETAINER - flange

2шт.

4

S300768

SHIN

FLANGE - output, rear

1шт.

5

E135151

OIL SEAL

- oil, flange

2шт.

Part of seal and gasket kit, P/N S300588 and Figure 6-2 -6-42 and 7-2

1шт.

6

S300472

CIRCLIP

RING - snap, internal

3шт.

7

E135260

NOTCHED DISK

SHIM - 0.2 mm thick, bearing

1шт.

7

S300473

SHIM,0.3mm Thk

Bearing 0.3mm Thk

1шт.

7

S300474

SHIM,0.5mm Thk

Bearing 0.5mm Thk

1шт.

7

E135096

SHIM,100mm ID x 119.8mm OD x 1.5mm Thk

Bearing 1.5mm Thk

1шт.

7

E135095

SHIM,1.6mm Thk

Bearing 1.6mm Thk

1шт.

7

E135094

SHIM,100mm ID x 119.8mm OD x 1.7mm Thk

Bearing 1.7mm Thk

1шт.

7

E135093

SHIM,100mm ID x 119.8mm OD x 1.8mm Thk

Bearing 1.8mm Thk

1шт.

8

L31494

BALL BEARING

- ball

1шт.

9

E135255

SHAFT

- output

1шт.

10

E135112

BUSHING

- output shaft

1шт.

11

613-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, 8 - 1.25 x 16 mm

2шт.

12

895-10008

WASHER,M8 x 16 x 1.6

- flat, 9 x 17 x 1.6 mm

2шт.

13

S300451

COVER

- output gear

1шт.

14

E135256

PINION

GEAR - output

1шт.

15

E135245

PLATE

- output gear

1шт.

16

S300471

BEARING, ROLLER,65 mm ID x 120 mm OD x 23 mm

BEARING - roller

1шт.

17

E135164

RACE

- bearing

1шт.

18

S300580

SHIN

FLANGE - output, parking brake, front, see Figure 7-2 for transmission mounted parking brake

1шт.

transmission mounted parking brake

1шт.

S300588

SEAL PACKAGE

KIT - seal and gasket, Includes Ref. 5 Figures 6-2 and 6-42 and 7-2

1шт.
