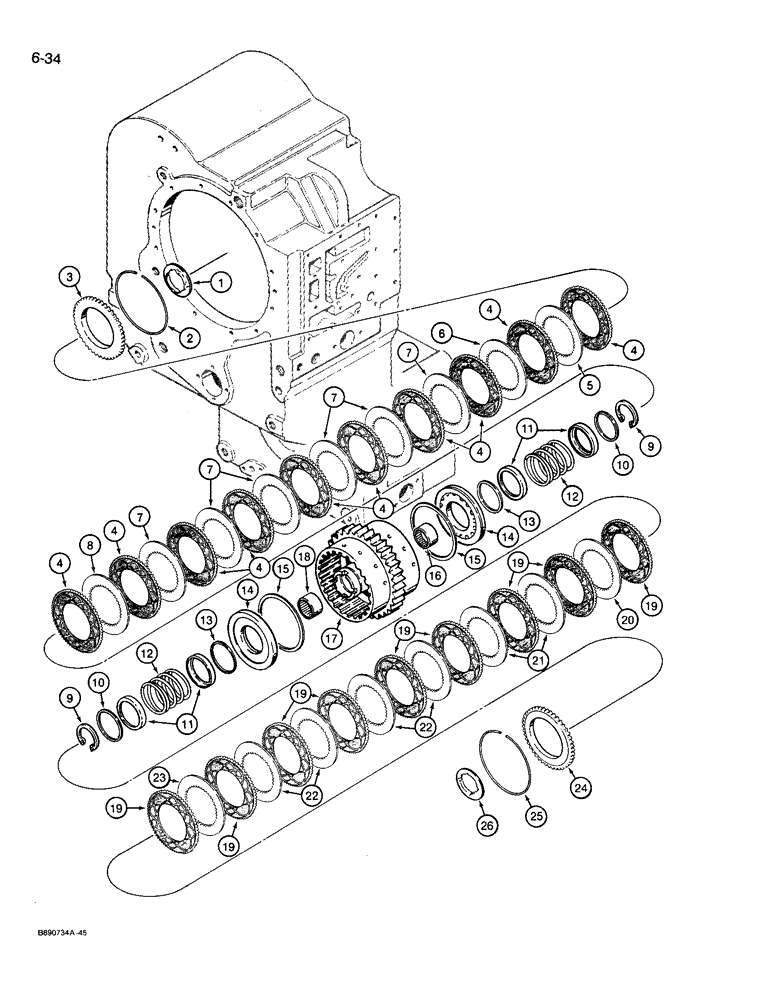

Запчасти Case 721 (6-34) - TRANSMISSION ASSEMBLY, THIRD AND FOURTH CLUTCH PACK, PRIOR TO P.I.N. JAK0022758 (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - see Figure 6-8 for correct transmission and parts list information, Includes: Ref. 1 - 26

1шт.

NSS

NOT SOLD SEPARAT

PACK - clutch, third and fourth clutches

1шт.

1

E135218

THRUST RING

WASHER - thrust

1шт.

2

E135124

RING, SNAP

RING - retaining, internal

1шт.

3

E135222

NOTCHED DISK

PLATE - pressure, third gear end

1шт.

4

E135004

CLUTCH PLATE,137.5mm OD x 2mm Thk

DISC - clutch, fibre

10шт.

5

E135224

NOTCHED DISK

DISC - 1.5 mm thick, clutch, if used

1шт.

5

E135226

NOTCHED DISK

DISC - 2.0 mm thick, clutch, if used

1шт.

5

E135225

NOTCHED DISK

DISC - 2.5 mm thick, steel, clutch, if used

1шт.

6

E135224

NOTCHED DISK

DISC - 1.5 mm thick, clutch

1шт.

7

E135226

NOTCHED DISK

DISC - 2.0 mm thick, clutch

6шт.

8

E135225

NOTCHED DISK

DISC - 2.5 mm thick, steel, clutch

1шт.

9

E135219

SEALING RING

RING - snap, external

2шт.

10

E135221

GUIDE BUSHING,58.3mm ID x 65mm OD x 2.5mm L

RING - guide

2шт.

11

E135220

GUIDE RING

GUIDE - spring

4шт.

12

E135131

SPRING

- clutch

2шт.

13

E135141

SEALING RING

RING - seal, piston ID

2шт.

Part of seal and gasket kit, P/N S300588 and Figure 6-2 -6-42 and 7-2

1шт.

14

E135217

PISTON

- clutch, Serial Range: -JAK0022534

2шт.

14

S301540

PISTON

- clutch, Serial Range: JAK0022534-JAK0022757

2шт.

15

E135142

SEALING RING

RING - seal, piston OD

2шт.

Was replaced by 199070A1 effective with L129912 transmission at S/N break 28462.

1шт.

Part of seal and gasket kit, P/N S300588 and Figure 6-2 -6-42 and 7-2

1шт.

16

E135044

BEARING, NEEDLE

BEARING - needle, 40 mm ID x 47 mm 0D x 20 mm

1шт.

17

E135232

GEAR

HOUSING - third and fourth clutches, Serial Range: -JAK0022534

1шт.

17

106922A1

CYLINDER END CAP

HOUSING - third and fourth clutches, Serial Range: JAK0022534-JAK0022757

1шт.

18

E135153

NEEDLE BEARING,Needle, 35mm ID x 42mm OD x 20mm W

BEARING - needle, 35 mm ID x 42 mm OD x 20 mm

1шт.

19

E135004

CLUTCH PLATE,137.5mm OD x 2mm Thk

DISC - clutch, fibre

9шт.

20

E135225

NOTCHED DISK

DISC - 2.5 mm thick, steel, clutch

1шт.

21

E135226

NOTCHED DISK

DISC - 2.0 mm thick, clutch

2шт.

22

E135224

NOTCHED DISK

DISC - 1.5 mm thick, clutch

4шт.

23

E135224

NOTCHED DISK

DISC - 1.5 mm thick, clutch, if used

1шт.

23

E135226

NOTCHED DISK

DISC - 2.0 mm thick, clutch, if used

1шт.

23

E135225

NOTCHED DISK

DISC - 2.5 mm thick, steel, clutch, if used

1шт.

24

E135222

NOTCHED DISK

PLATE - pressure, fourth gear end

1шт.

25

E135124

RING, SNAP

RING - retaining, internal

1шт.

26

E135218

THRUST RING

WASHER - thrust

1шт.

S300588

SEAL PACKAGE

KIT - seal and gasket, Includes Refs. 13 and 15 Figures 6-2 - 6-42 and 7-2

1шт.
