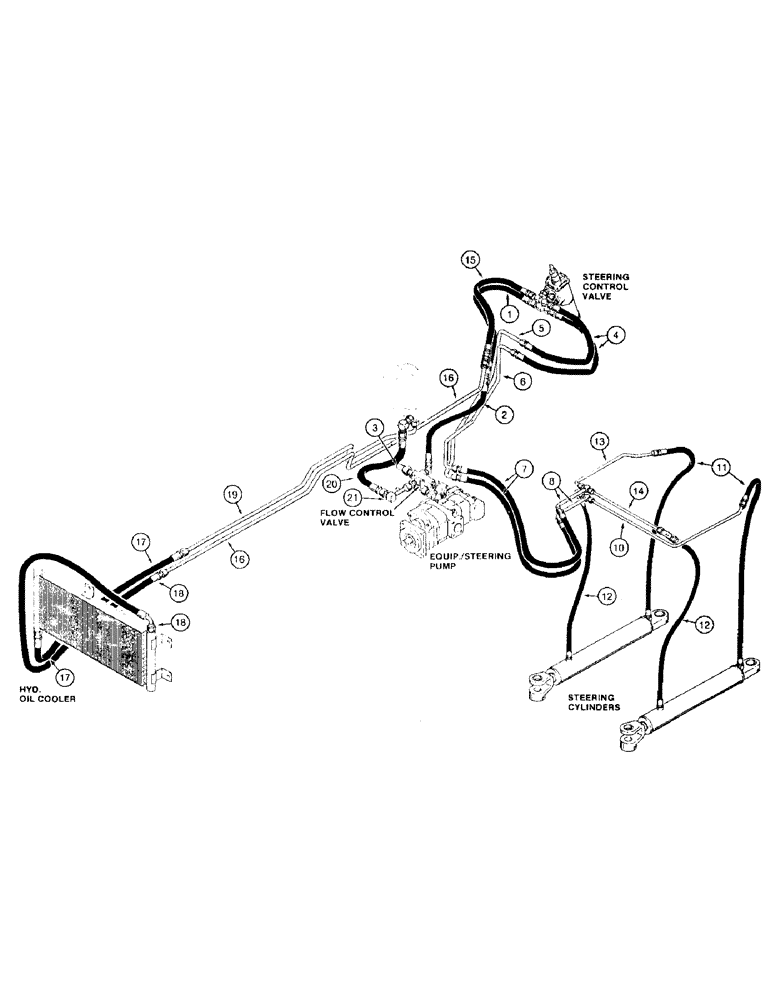

Запчасти Case 721 (1-14) - PICTORIAL INDEX, STEERING AND COOLING HYDRAULIC CIRCUIT, P.I.N. JAK0022432 & AFTER (00) - PICTORIAL INDEX

1

Steering supply hose, steering control valve to hose at flow control valve, Page 5-13

1шт.

2

Steering supply hose, hose at steering control valve to flow control valve, Page 5-13

1шт.

3

Tube, flow control valve to pump, Page 5-13

1шт.

4

Hose, from right-hand upper and lower ports on control valve to tubes, Page 5-17

1шт.

5

Left-hand steering tube, from hose at right-hand upper port on control valve to hose, Page 5-17

1шт.

6

Right-hand steering tube, from hose at right-hand lower port on control valve to hose, Page 5-17

1шт.

7

Hose, from right and left-hand steering tubes to tubes with tees, Page 5-17

1шт.

8

Tube with tee, from hoses to tubes leading to steering cylinders, Page 5-17

1шт.

10

Steering tube, right-hand, from tube with tee to hose at rod end of cylinder, Page 5-17

1шт.

11

Hose, from tubes to closed end of cylinder, Page 5-17

1шт.

12

Hose, from tubes to rod end of cylinder, Page 5-17

1шт.

13

Steering tube, left-hand, from tube with tee to closed end of cylinder, Page 5-17

1шт.

14

Steering tube, right-hand, from tube with tee to closed end of cylinder, Page 5-17

1шт.

15

Return hose from upper left-hand port on steering control valve to tube at hose to oil cooler, Page 5-21

1шт.

16

Return tube, from return hose at steering control valve to hose at oil cooler, Page 5-21

1шт.

17

Supply hose, from oil cooler to tube to hydraulic reservoir, Page 5-21

1шт.

18

Return hose, from return tube to oil cooler, Page 5-21

1шт.

19

Supply tube, from supply hose at oil cooler to hydraulic reservoir, Page 5-21

1шт.

20

Supply hose, from hydraulic reservoir to tube at flow control valve, Page 5-21

1шт.

21

Supply tube, from supply hose at hydraulic reservoir to flow control valve, Page 5-21

1шт.
