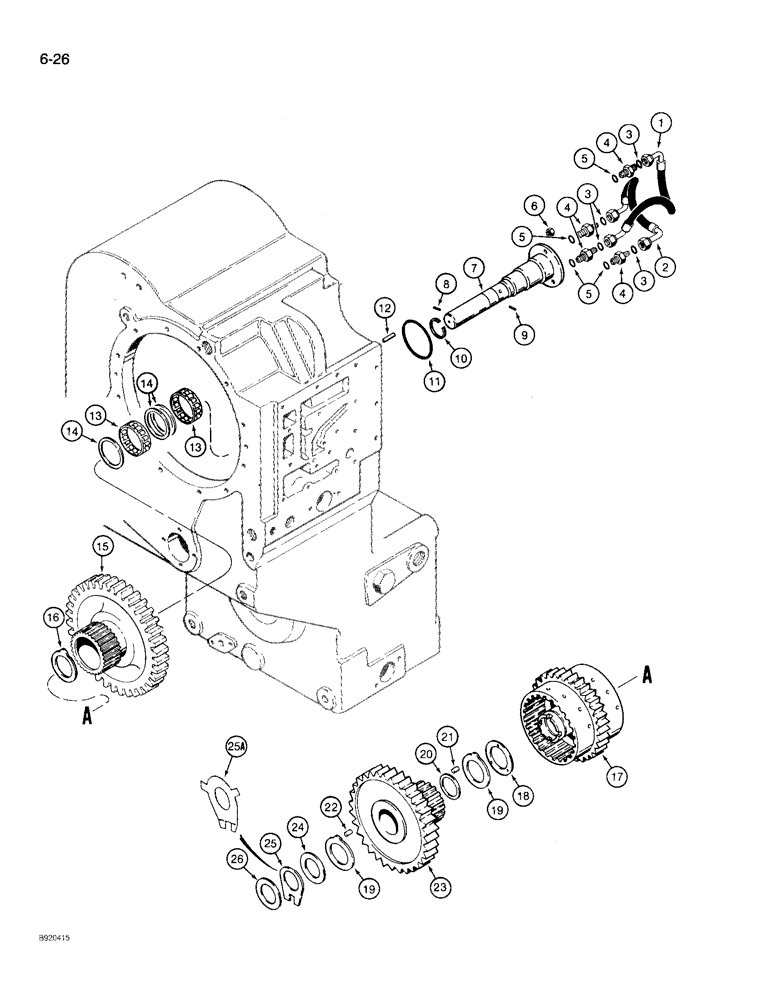

Запчасти Case 721 (6-26) - TRANSMISSION ASSEMBLY, REVERSE AND SECOND CLUTCHES, PRIOR TO P.I.N. JAK0022758 (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - see Figure 6-8 for correct transmission and parts list information, Includes: Ref. 1 - 26

1шт.

1

S300584

HOSE

- 516 mm long, second clutch

1шт.

2

S300583

HOSE

- 620 mm long, reverse clutch

1шт.

3

S300587

O-RING,12.4mm ID x 1.78mm Width

- adapter, hose end (Replaced S300586) O-RING - ADAPTER, HOSE SIDE.

4шт.

Part of seal and gasket kit, P/N S300588 and Figure 6-2 -6-42 and 7-2

1шт.

4

S300585

FITTING

ADAPTER - hose, Serial Range: -JAK0022534

4шт.

4

S301961

ADAPTER

- hose, Serial Range: JAK0022534-JAK0022757

4шт.

5

S300586

O-RING,2.4mm Thk x 13.3mm ID, 70 Duro

- adapter, transmission end (Replaced S300587) 0-RING - ADAPTER, TRANS. SIDE.

4шт.

Part of seal and gasket kit, P/N S300588 and Figure 6-2 -6-42 and 7-2

1шт.

6

825-1408

NUT,M8, Cl 8

3шт.

S300468

AXLE

ASSEMBLY - reverse and second clutches, Includes: Ref. 7 - 9, Serial Range: -JAK0022534

1шт.

184558A1

SHAFT

ASSEMBLY - reverse and second clutches, Replaces S301953, Includes: Ref. 7 - 9, Serial Range: JAK0022534-JAK0022757

1шт.

7

NSS

NOT SOLD SEPARAT

AXLE - reverse and second clutches

1шт.

8

E135023

DOWEL

PIN - roll, 2.5 mm OD x 10 mm

7шт.

9

E135022

DOWEL

PIN - roll, 1.5 mm OD x 10 mm

2шт.

10

E135145

RING,35.2mm ID x 38mm OD x 2mm Thk

- piston, axle shaft

3шт.

11

S300460

O-RING,3mm Thk x 49mm ID

- axle

1шт.

Part of seal and gasket kit, P/N S300588 and Figure 6-2 -6-42 and 7-2

1шт.

12

E135084

STUD

- 8 mm - 1.25 x 18 mm

3шт.

13

E135154

ROLLER CAGE BEARING,45mm ID x 75mm OD x 56.6mm W

BEARING - roller, two piece

1шт.

14

E135002

PISTON RING,69.6mm ID x 75.8mm OD x 3mm Thk

RING - retaining, internal, bearing

3шт.

15

S300466

GEAR

- second

1шт.

16

E135121

WASHER, THRUST

WASHER - thrust, tabbed

1шт.

17

NSS

NOT SOLD SEPARAT

PACK - clutch, reverse and second, parts list Figure 6-28

1шт.

18

E135123

WASHER, THRUST

WASHER - thrust, 35 ID x 65 OD x 1.5

1шт.

19

E135267

WASHER, THRUST

WASHER - thrust, tabbed

2шт.

20

E135268

WASHER

- 48 ID x 55 OD x 0.8 mm

1шт.

S300462

ROLLER

KIT - bearing, Includes: Ref. 21 and 22

1шт.

21

NSS

NOT SOLD SEPARAT

NEEDLE - bearing, 10 OD x 17 mm long

14шт.

22

NSS

NOT SOLD SEPARAT

NEEDLE - bearing, 10 OD x 20 mm long

14шт.

23

E135269

GEAR

- reverse

1шт.

24

E135120

WASHER

- thrust, 35 ID x 70 OD x 1.5 mm

1шт.

25

E135203

WASHER, THRUST

WASHER - thrust, notched, Serial Range: -JAK0022534

1шт.

25a

S301949

WASHER

- thrust, notched, Serial Range: JAK0022534-JAK0022757

1шт.

26

E135097

SHIM,35.1mm ID x 70mm OD x 0.2mm Thk

(35.1 mm ID x 70 mm OD) 0.2mm Thk

1шт.

26

E135098

SHIM,0.4mm Thk

(35.1 mm ID x 70 mm OD) 0.4mm Thk

1шт.

26

E135099

SHIM,0.6mm Thk

(35.1 mm ID x 70 mm OD) 0.6mm Thk

1шт.

26

E135100

SHIM,35.1mm ID x 70mm OD x 0.8mm Thk

(35.1 mm ID x 70 mm OD) 0.8mm Thk

1шт.

26

E135101

SHIM,1.0mm Thk

(35.1 mm ID x 70 mm OD) 1.0mm Thk

1шт.

26

E135102

SHIM,1.2mm Thk

(35.1 mm ID x 70 mm OD) 1.2mm Thk

1шт.

26

E135103

SHIM,1.4mm Thk

(35.1 mm ID x 70 mm OD) 1.4mm Thk

1шт.

26

E135104

SHIM,1.6mm Thk

(35.1 mm ID x 70 mm OD) 1.6mm Thk

1шт.

26

E135105

SHIM,1.8mm Thk

(35.1 mm ID x 70 mm OD) 1.8mm Thk

1шт.

26

E135106

SHIM,2.0mm Thk

(35.1 mm ID x 70 mm OD) 2.0mm Thk

1шт.

26

E135107

SHIM,2.2mm Thk

(35.1 mm ID x 70 mm OD) 2.2mm Thk

1шт.

26

E135108

SHIM,2.4mm Thk

(35.1 mm ID x 70 mm OD) 2.4mm Thk

1шт.

26

E135109

SHIM,2.6mm Thk

(35.1 mm ID x 70 mm OD) 2.6mm Thk

1шт.

26

E135110

SHIM,2.8mm Thk

(35.1 mm ID x 70 mm OD) 2.8mm Thk

1шт.

S300588

SEAL PACKAGE

KIT - seal and gasket, Includes Refs. 3, 5 and 11 Figures 6-2 - 6-42 and 7-2

1шт.
