Запчасти Case 721 (6-24) - TRANSMISSION ASSEMBLY, FORWARD AND LOW CLUTCH PACK, PRIOR TO JAK0022758 (06) - POWER TRAIN

REF

INSTRUCTION

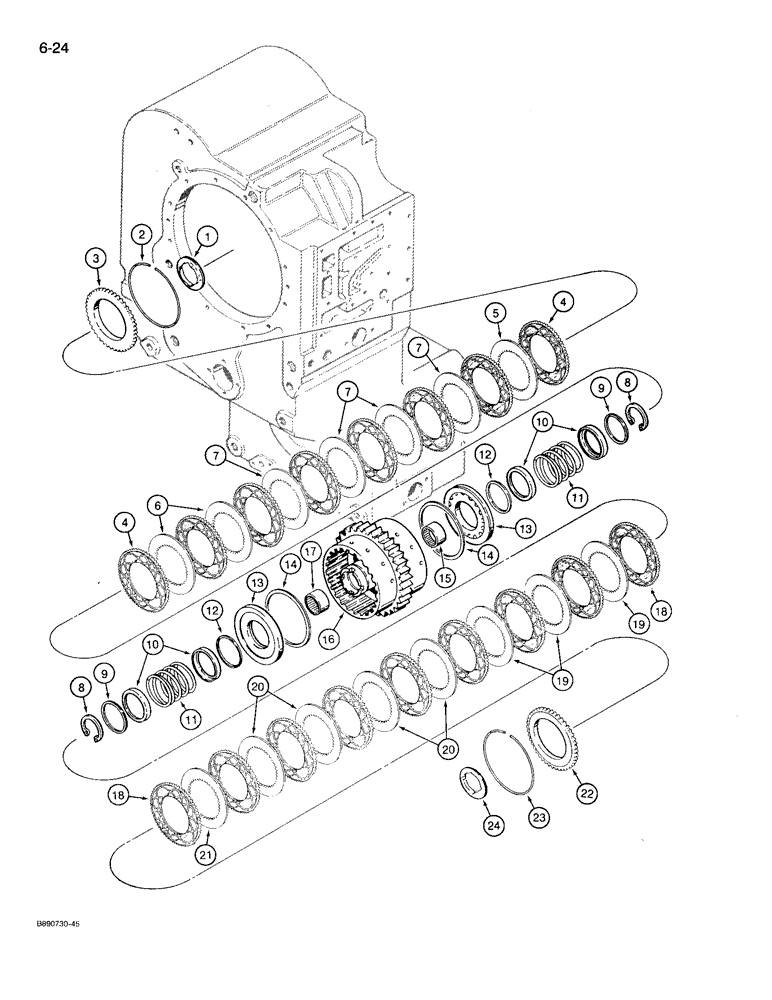

TRANSMISSION ASSEMBLY - see Figure 6-8 for correct transmission and parts list information, Includes: Ref. 1 - 24

1шт.

NSS

NOT SOLD SEPARAT

PACK - clutch, forward and low clutches

1шт.

1

E135227

THRUST RING

WASHER - thrust

1шт.

2

E135125

RING, SNAP

RING - retaining, internal

1шт.

3

E135261

NOTCHED DISK

PLATE - pressure, low gear end

1шт.

4

E135005

CLUTCH PLATE,109mm ID x 177.5mm OD x 2mm Thk

DISC - clutch, fibre

8шт.

5

E135271

NOTCHED DISK

DISC - 2.0 mm thick, clutch, if used

1шт.

5

E135272

NOTCHED DISK

DISC - 2.5 mm thick, clutch, if used

1шт.

6

E135272

NOTCHED DISK

PLATE - pressure

2шт.

7

E135271

NOTCHED DISK

DISC - 2.0 mm thick, steel, clutch

4шт.

8

E135019

CIRCLIP

RING - snap, external

2шт.

9

E135221

GUIDE BUSHING,58.3mm ID x 65mm OD x 2.5mm L

RING - guide

2шт.

10

E135220

GUIDE RING

GUIDE - spring

4шт.

11

E135131

SPRING

- clutch

2шт.

12

E135141

SEALING RING

RING - seal, piston ID

2шт.

Part of seal and gasket kit, P/N S300588 and Figure 6-2 -6-42 and 7-2

1шт.

13

N14711

PISTON

- clutch, Serial Range: -JAK0022534

2шт.

13

S301950

PISTON

- clutch, Serial Range: JAK0022534-JAK0022757

2шт.

14

E135140

SEALING RING

RING - seal, piston OD

2шт.

Was replaced by 199079A1, effective with L129912 transmission, S/N break 28462.

1шт.

Part of seal and gasket kit, P/N S300588 and Figure 6-2 -6-42 and 7-2

1шт.

15

E135045

BEARING, NEEDLE,Needle, 40mm ID x 47mm OD x 26mm W

BEARING - needle, 40 mm ID x 47 mm OD x 26 mm

1шт.

16

E135234

GEAR

HOUSING - forward and low clutch, Serial Range: -JAK0022534

1шт.

16

183209A1

PINION CARRIER

HOUSING - forward and low clutch (Replaced 109368A1), Serial Range: JAK0022534-JAK0022757

1шт.

17

E135043

NEEDLE BEARING,Needle, 35mm ID x 42mm OD x 26mm W

BEARING - needle, 35 mm ID x 42 mm OD x 26 mm

1шт.

18

E135005

CLUTCH PLATE,109mm ID x 177.5mm OD x 2mm Thk

DISC - clutch, fibre

9шт.

19

E135272

NOTCHED DISK

DISC - 2.5 mm thick, steel, clutch

3шт.

20

E135271

NOTCHED DISK

DISC - 2.0 mm thick, steel, clutch

4шт.

21

E135271

NOTCHED DISK

DISC - 2.0 mm thick, steel, clutch, if used

1шт.

21

E135272

NOTCHED DISK

DISC - 2.5 mm thick, steel, clutch, if used

1шт.

22

E135261

NOTCHED DISK

PLATE - pressure, forward gear end

1шт.

23

E135125

RING, SNAP

RING - retaining, internal

1шт.

24

E135218

THRUST RING

WASHER - thrust

1шт.

S300588

SEAL PACKAGE

KIT - seal and gasket, Includes Refs. 12 and 14 Figures 6-2 - 6-42 and 7-2

1шт.
