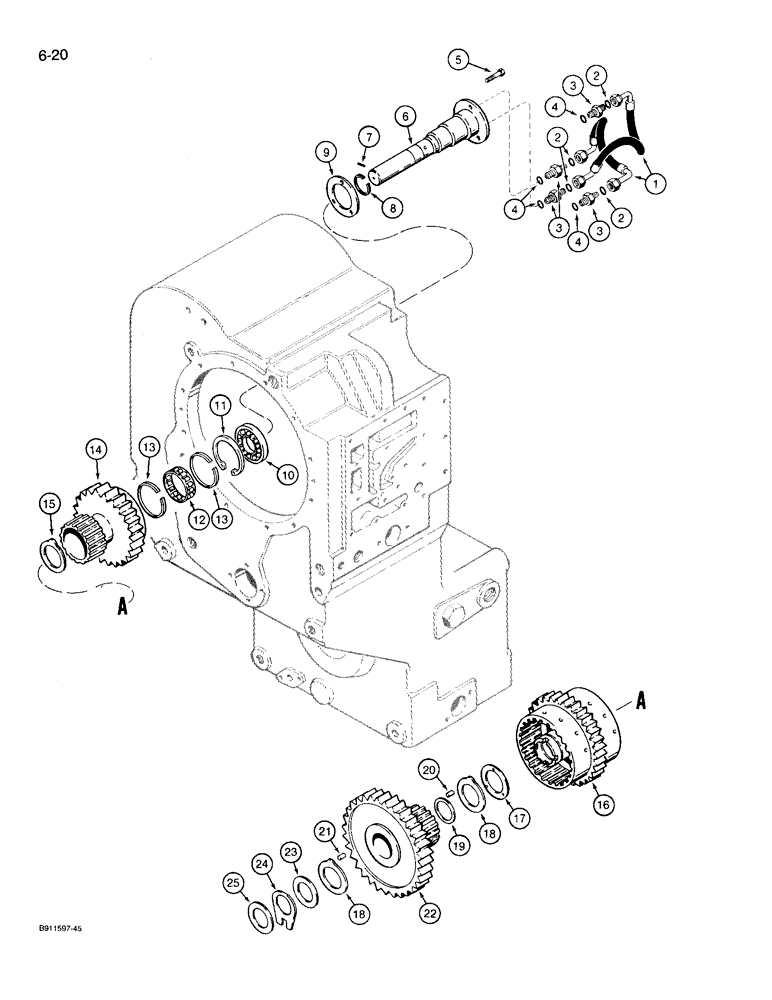

Запчасти Case 721 (6-20) - TRANSMISSION ASSEMBLY, FORWARD AND LOW CLUTCHES, PRIOR TO P.I.N. JAK0022534 (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - see Figure 6-8 for correct transmission and parts list information, Includes: Ref. 1 - 25

1шт.

1

S300582

HOSE

- 974 mm long, forward and low clutch

2шт.

2

S300586

O-RING,2.4mm Thk x 13.3mm ID, 70 Duro

- adapter, hose end

4шт.

Part of seal and gasket kit, P/N S300588 and Figure 6-2 -6-42 and 7-2

1шт.

3

S300587

O-RING,12.4mm ID x 1.78mm Width

ADAPTER - hose(Replaced S300585) O-RING - ADAPTER, HOSE SIDE.

4шт.

4

S300586

O-RING,2.4mm Thk x 13.3mm ID, 70 Duro

- adapter, transmission end(Replaced S300587)0-RING - ADAPTER, TRANS. SIDE.

4шт.

Part of seal and gasket kit, P/N S300588 and Figure 6-2 -6-42 and 7-2

1шт.

5

613-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm

3шт.

E135241

KIT

AXLE ASSEMBLY - forward and low clutches, Includes: Ref. 6 and 7

1шт.

6

NSS

NOT SOLD SEPARAT

AXLE - forward and low clutches

1шт.

7

E135023

DOWEL

PIN - roll, 2.5 mm OD x 10 mm

5шт.

8

E135145

RING,35.2mm ID x 38mm OD x 2mm Thk

- piston, axle shaft

3шт.

9

E135223

GASKET

- axle

1шт.

Part of seal and gasket kit, P/N S300588 and Figure 6-2 -6-42 and 7-2

1шт.

10

L33515

BALL BEARING

BEARING - ball, 45 mm ID x 75 mm OD x 16 mm

1шт.

11

K24302

RING, SNAP

RING - snap, internal

1шт.

12

E135148

ROLLER CAGE BEARING,45mm ID x 75mm OD x 28mm W

BEARING - roller

1шт.

13

E135002

PISTON RING,69.6mm ID x 75.8mm OD x 3mm Thk

RING - retaining, internal, bearing

2шт.

14

E135270

GEAR

- low

1шт.

15

E135117

WASHER, THRUST

WASHER - thrust, tabbed

1шт.

16

NSS

NOT SOLD SEPARAT

PACK - clutch, low and forward, see Figure 6-24 for components

1шт.

17

E135123

WASHER, THRUST

WASHER - thrust, 35 mm ID x 65 mm OD x 1.5 mm

1шт.

18

E135267

WASHER, THRUST

WASHER - thrust, tabbed

2шт.

19

E135268

WASHER

- 48 mm ID x 54.7 mm OD x 0.8 mm

1шт.

S300462

ROLLER

KIT - bearing, Includes: Ref. 20 and 21

14шт.

20

NSS

NOT SOLD SEPARAT

NEEDLE - bearing, 10 mm OD x 17 mm long

1шт.

21

NSS

NOT SOLD SEPARAT

NEEDLE - bearing, 10 mm OD x 20 mm long

1шт.

22

E135269

GEAR

- forward

1шт.

23

E135120

WASHER

- thrust, 35 mm ID x 70 mm OD x 1.5 mm

1шт.

24

E135203

WASHER, THRUST

WASHER - thrust, notched

1шт.

25

E135097

SHIM,35.1mm ID x 70mm OD x 0.2mm Thk

(35.1 mm ID x 70 mm OD) 0.2mm Thk

1шт.

25

E135098

SHIM,0.4mm Thk

(35.1 mm ID x 70 mm OD) 0.4mm Thk

1шт.

25

E135099

SHIM,0.6mm Thk

(35.1 mm ID x 70 mm OD) 0.6mm Thk

1шт.

25

E135100

SHIM,35.1mm ID x 70mm OD x 0.8mm Thk

(35.1 mm ID x 70 mm OD) 0.8mm Thk

1шт.

25

E135101

SHIM,1.0mm Thk

(35.1 mm ID x 70 mm OD) 1.0mm Thk

1шт.

25

E135102

SHIM,1.2mm Thk

(35.1 mm ID x 70 mm OD) 1.2mm Thk

1шт.

25

E135103

SHIM,1.4mm Thk

(35.1 mm ID x 70 mm OD) 1.4mm Thk

1шт.

25

E135104

SHIM,1.6mm Thk

(35.1 mm ID x 70 mm OD) 1.6mm Thk

1шт.

25

E135105

SHIM,1.8mm Thk

(35.1 mm ID x 70 mm OD) 1.8mm Thk

1шт.

25

E135106

SHIM,2.0mm Thk

(35.1 mm ID x 70 mm OD) 2.0mm Thk

1шт.

25

E135107

SHIM,2.2mm Thk

(35.1 mm ID x 70 mm OD) 2.2mm Thk

1шт.

25

E135108

SHIM,2.4mm Thk

(35.1 mm ID x 70 mm OD) 2.4mm Thk

1шт.

25

E135109

SHIM,2.6mm Thk

(35.1 mm ID x 70 mm OD) 2.6mm Thk

1шт.

25

E135110

SHIM,2.8mm Thk

(35.1 mm ID x 70 mm OD) 2.8mm Thk

1шт.

S300588

SEAL PACKAGE

KIT - seal and gasket, Includes Refs. 2, 4 and 9 Figures 6-2 - 6-42 and 7-2

1шт.
