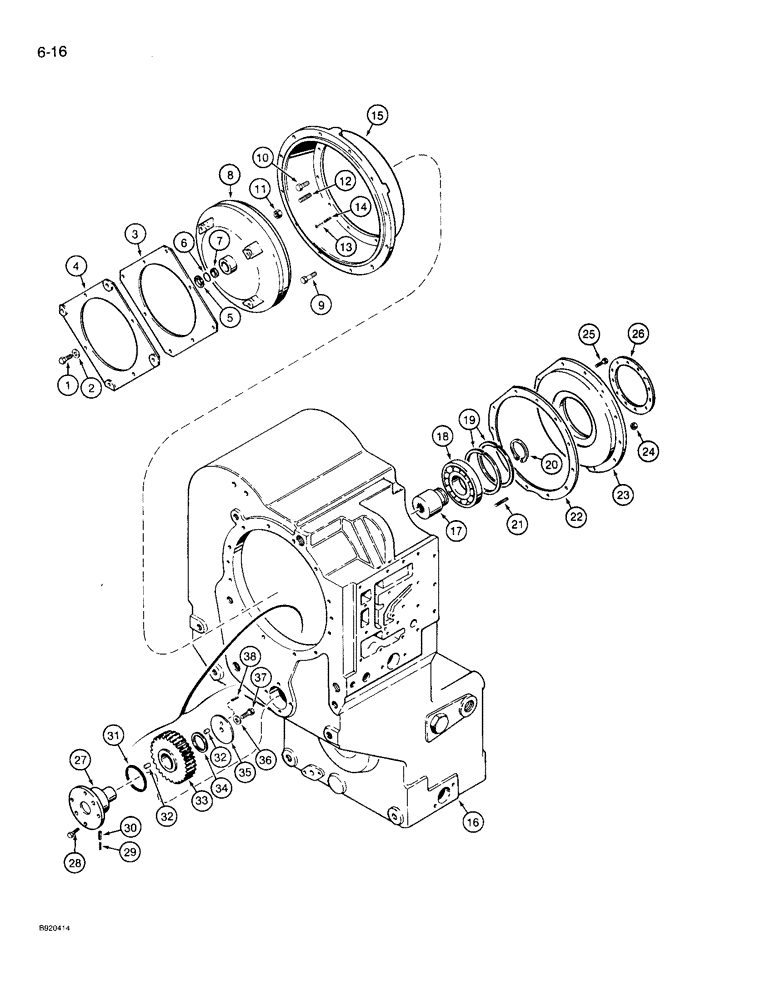

Запчасти Case 721 (6-16) - TRANSMISSION ASSEMBLY, IDLER GEAR, CONVERTER & COVER, PRIOR TO P.I.N. JAK0022758 (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - see Figure 6-8 for correct transmission and parts list information, Includes: Ref. 1 - 38

1шт.

1

111981A1

BOLT

- hex, 10 - 1.5 x 20 mm, Class 10.9 (Replaced 626-10020) Bolt, 18 mm long. The 20 mm bolt it replaced was too long, and would not torque properly.

4шт.

2

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

4шт.

3

E135237

PLATE

- flex, plain, Serial Range: -JAK0022534

1шт.

3

S301944

PLATE

- flex, plain, Serial Range: JAK0022534-JAK0022757

1шт.

4

E135238

PLATE

- flex, stepped

1шт.

5

R16289

SNAP RING,1.06", Int, #106

Ring, Snap, , converter 1.06", Int, #106

1шт.

6

E135035

O-RING,25 mm ID

SEAL - x 3, O-ring 25 mm ID

1шт.

Part of seal and gasket kit, P/N S300588 and Figure 6-2 -6-42 and 7-2

1шт.

7

E135167

WASHER

- sealing

1шт.

8

107780A1

CONVERTER

- transmission (Replaced S300591)

1шт.

Must also change out spacer on 6-10 Ref. 33. If they have the original flywheel and the new torque converter use shim L128868. If they have a new flywheel and old torque converter use spacer L128876. Original flywheel and original torque converter use L128777.

1шт.

8

107780A1R

REMAN-TORQUE CONVERT

Remanufactured, N.A. Only

1шт.

8

107780A1C

CORE-TORQUE CONVERTR

Return Number, N.A. Only

1шт.

9

826-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

- hex, 10 - 1.5 x 50 mm, class 10.9

2шт.

10

826-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

- hex, 10 - 1.5 x 35 mm, class 10.9

11шт.

11

825-1010

NUT,M10, Cl 8

- hex, 10 mm - 1.5

1шт.

12

E135083

STUD

- 10 - 1.5 x 30 mm

1шт.

13

E135027

PIN, SPLIT (COTTER)

PIN - roll, 10 mm OD x 28 mm

2шт.

14

E135025

PIN

- roll, 6 mm OD x 28 mm

2шт.

15

E135283

COVER

HOUSING - converter

1шт.

16

E135249

HOUSING

- transmission

1шт.

17

E135278

DRIVE

CONNECTOR - shaft

1шт.

18

E135046

BALL BEARING

BEARING - cover

1шт.

19

E135018

RING, SNAP

RING - snap, internal, 85 mm x 1.7 thick

2шт.

20

933283R1

SNAP RING,M45, Ext

RING - snap, external, 45 mm x 1.75 thick

1шт.

21

E135084

STUD

- 8 - 1.25 x 18 mm

1шт.

22

E135279

GASKET

- cover

1шт.

Part of seal and gasket kit, P/N S300588 and Figure 6-2 -6-42 and 7-2

1шт.

23

E135281

PLATE

COVER - flange, pump

1шт.

24

825-1408

NUT,M8, Cl 8

1шт.

25

613-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm

10шт.

26

N14710

SEALING RING

- cover, outer, if used

1шт.

Part of seal and gasket kit, P/N S300588 and Figure 6-2 -6-42 and 7-2

1шт.

27

S300454

AXLE

- Stub, Idler gear

1шт.

28

613-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm

4шт.

29

E135022

DOWEL

PIN - roll, 1.5 mm OD x 10 mm

1шт.

30

E135023

DOWEL

PIN - roll, 2.5 mm OD x 10 mm

1шт.

31

S300455

O-RING,3mm Thk x 57mm ID

- stub axle

1шт.

Part of seal and gasket kit, P/N S300588 and Figure 6-2 -6-42 and 7-2

1шт.

32

S300458

SET

KIT - bearing rollers

1шт.

33

S300578

PINION

GEAR - idler

1шт.

34

E135003

PISTON RING

RING - idler gear

1шт.

35

S300456

BEARING WASHER

COVER - bearing

1шт.

36

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

1шт.

37

826-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, 10 - 1.5 x 20 mm, Class 10.9

1шт.

38

E135024

DOWEL

PIN - roll, 4 mm OD x 10 mm

1шт.

S300588

SEAL PACKAGE

KIT - seal and gasket, Includes: Refs. 6, 22, 26 and 31 Figures 6-2 - 6-42 and 7-2

1шт.
