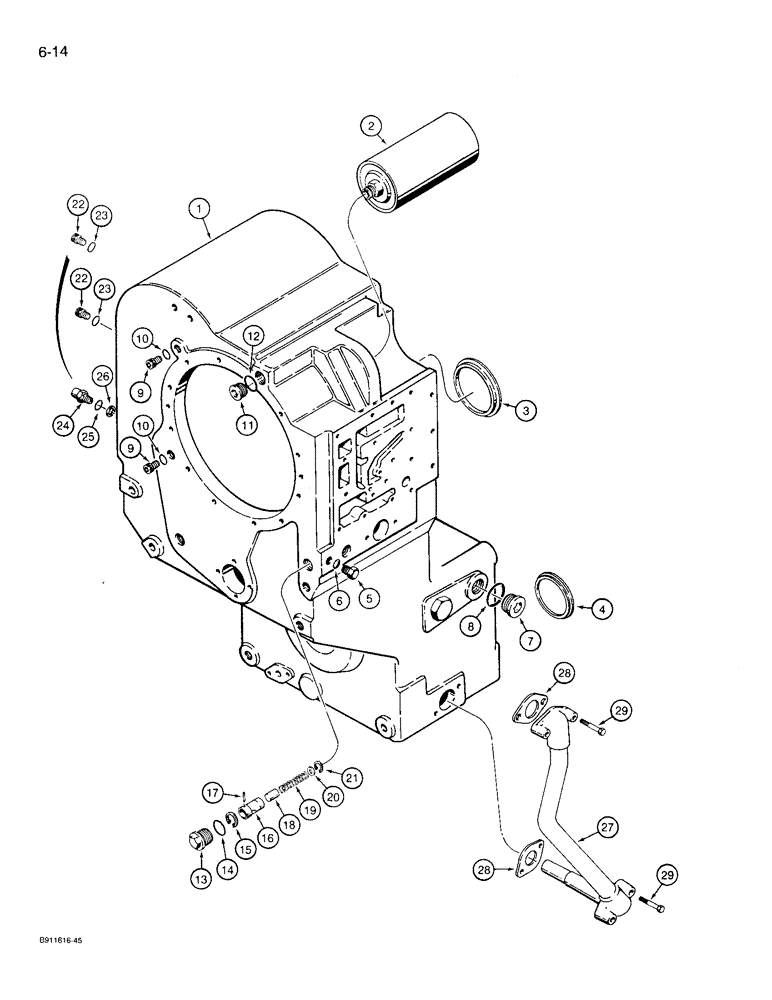

Запчасти Case 721 (6-14) - TRANSMISSION ASSEMBLY, HOUSING, PRIOR TO P.I.N. JAK0022758 (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - see Figure 6-8 for correct transmission and parts list information, Includes: Ref. 1 - 29

1шт.

1

E135249

HOUSING

- transmission

1шт.

2

E135159

FILTER

- transmission oil, Serial Range: -JAK0022534

1шт.

2

S301612

FILTER

- transmission oil, Start Serial: JAK0022534

1шт.

3

E135201

SEAL

- 106 mm, expansion

1шт.

4

E135169

PLUG

- 80 mm, expansion

2шт.

5

E135079

PLUG

- hex, 14 mm x 1.5

1шт.

6

1968430C1

O-RING

- plug

1шт.

Part of seal and gasket kit, P/N S300588 and Figure 6-2 -6-42 and 7-2

1шт.

7

905476R1

PLUG

- hex socket, 36 mm x 1.5, pipe

1шт.

8

81284C1

O-RING,2.2mm Thk x 33mm ID

- plug

1шт.

Part of seal and gasket kit, P/N S300588 and Figure 6-2 -6-42 and 7-2

1шт.

9

E135075

PLUG

- hex socket, 14 mm x 1.5

2шт.

10

1968430C1

O-RING

- plug

2шт.

Part of seal and gasket kit, P/N S300588 and Figure 6-2 -6-42 and 7-2

1шт.

11

A52148

PLUG

- hex socket, 30 mm x 1.5

1шт.

12

A52368

SEAL

O-RING - plug

1шт.

Part of seal and gasket kit, P/N S300588 and Figure 6-2 -6-42 and 7-2

1шт.

13

E135082

PLUG

- hex head, 30 mm x 1.5

1шт.

14

A52368

SEAL

O-RING - plug

1шт.

Part of seal and gasket kit, P/N S300588 and Figure 6-2 -6-42 and 7-2

1шт.

15

A37550

SNAP RING,1.00", Int, #100

RING - snap, internal, 28 mm x 1.2

1шт.

16

E135200

SPACER

SLEEVE - valve, converter pressure

1шт.

17

E135126

DOWEL,4mm OD x 27.5mm L

PIN - dowel, 4 mm x 27.5

1шт.

18

E135166

VALVE POPPET

PISTON - converter pressure valve

1шт.

19

E135134

SPRING

- converter pressure valve

1шт.

20

E135092

WASHER

- spring stop, 10 mm ID x 19.9 OD x 2.5

1шт.

21

E135020

CIRCLIP

RING - snap, internal, 20 mm x 1.5

1шт.

22

934651R1

PLUG,Hex Soc, M18 x 1.5

1-2шт.

23

S300495

O-RING,2mm Thk x 15mm ID

- plug

1-2шт.

Part of seal and gasket kit, P/N S300588 and Figure 6-2 -6-42 and 7-2

1шт.

24

S300494

SENDER UNIT

SENDER - torque converter oil temperature, if used

1шт.

Is the Speed Sensor, not the Torque Converter Oil Temp Sender

1шт.

25

S300496

SEALING RING

- sender, if used

1шт.

Part of seal and gasket kit, P/N S300588 and Figure 6-2 -6-42 and 7-2

1шт.

26

S300497

SHIM,1.5mm Thk

Sender, if used 1.5mm Thk

1шт.

26

S300498

SHIM,1.4mm Thk

Sender, if used 1.4mm Thk

1шт.

26

S300499

SHIM,1.2mm Thk

Sender, if used 1.2mm Thk

1шт.

26

S300500

SHIM,1mm Thk

Sender, if used 1mm Thk

1шт.

26

S300501

SHIM,2mm Thk

Sender, if used 2mm Thk

1шт.

26

S300502

SHIM,0.5mm Thk

Sender, if used 0.5mm Thk

1шт.

26

S300503

SHIM,0.3mm Thk

Sender, if used 0.3mm Thk

1шт.

26

S300504

SHIM,0.2mm Thk

Sender, if used 0.2mm Thk

1шт.

27

E135235

HYD TUBE,480, 161 mm L

TUBE - suction, Serial Range: -JAK0022534

1шт.

27

S301958

TUBE

- suction, Start Serial: JAK0022534

1шт.

28

E135282

GASKET

- suction tube, Serial Range: -JAK0022534

2шт.

28

S301959

GASKET

GASKET - suction tube, Start Serial: JAK0022534

2шт.

29

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

4шт.

S300588

SEAL PACKAGE

KIT - seal and gasket, Includes Refs. 6, 8, 10, 12, 14, 23 and 25 on Figures 6-2 - 6-42 and 7-2

1шт.
