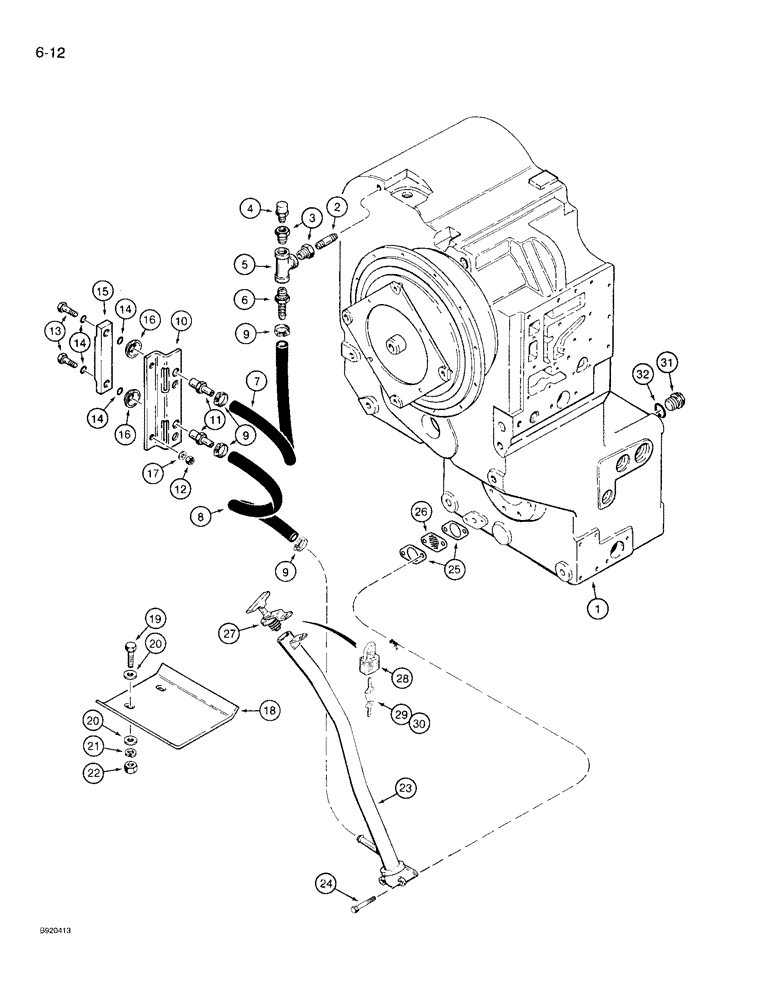

Запчасти Case 721 (6-12) - TRANSMISSION FILL TUBE MOUNTING AND SIGHT GAUGE, P.I.N. JAK0022758 & AFTER (06) - POWER TRAIN

1

L129912

TRANSMISSION

TRANSMISSION ASSEMBLY - includes Refs. 1 and 2 on Figure 6-6, Ref. 4 on this Figure, and all Refs. on Figures 6-44 - 6-68, Start Serial: JAK0022758

1шт.

1

LR129912

REMAN-TRANSMISSION

Remanufactured Transmission; 721, PIN JAK0022758 & after, Model Number 4WG180, Stock Number 4644 004 219

1шт.

1

LC129912

CORE-TRANSMISSION

Return Number

1шт.

2

221-103

FITTING

NIPPLE - straight, 1/8 PT x 1 inch

1шт.

3

221-85

REDUCER,Hex, 3/8" x 1/8" NPT

REDUCER - pipe, 3/8 male x 1/8 inch female

1-2шт.

4

N14704

BREATHER

BREATHER - sight gauge, included with transmission

1шт.

5

221-423

TEE,3/8" NPT

TEE - pipe, 3/8 inch, if used

1шт.

6

217-123

FITTING,1/2" Hose Barb x 3/8" Male NPTF

ADAPTER - straight, 1/2 barb end x 3/8 inch PT

1шт.

7

L125876

HOSE,12.7 mm ID x 880.00 mm, SAE 100R6

Sight Gauge Upper

1шт.

8

L60364

HOSE

HOSE - 1/2 ID x 12 inch long, sight gauge, lower

1шт.

9

214-251

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP - hose, No. 6, worm drive, type F

4шт.

10

L125837

SUPPORT

BRACKET - mounting, sight gauge

1шт.

11

L125836

FITTING

ADAPTER - straight, special

2шт.

12

131-217

LOCK NUT

NUT - hex, self-locking, 3/8 inch NC, grade 8

2шт.

L116247

GAUGE

GAUGE ASSEMBLY - sight, transmission oil, Includes: Ref. 13 - 15

1шт.

13

N13213

BOLT

BOLT - special, sight gauge

2шт.

14

N8537

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

O-RING - seal, sight gauge

4шт.

15

NSS

NOT SOLD SEPARAT

GAUGE - sight, order L116247 sight gauge assembly

1шт.

16

131-141

PUSH-ON NUT,.74", Push-on

NUT, .74", Push-on

2шт.

17

495-21044

WASHER,3/8"

WASHER, (flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

18

L129940

GUARD ASSY.

GUARD - transmission fill tube

1шт.

19

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

BOLT, Hex, 1/2"-13 x 1 3/4", G5

2шт.

20

495-21056

WASHER,1/2"

WASHER - flat, 9/16 x 1-3/8 x 3/32 inch

4шт.

21

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

22

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

23

L129957

TUBE,31.75 mm OD

TUBE - fill, transmission

1шт.

24

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

BOLT, , If used Hex, M8 x 50, 10.9

2шт.

25

S300507

GASKET

GASKET - fill tube

2шт.

26

E135229

FILTER SCREEN

SCREEN - fill tube

1шт.

27

L126498

PLUG

CAP - fill tube

1шт.

28

D93753

PADLOCK

PADLOCK - includes keys, if used, Includes: Ref. 29 and 30

1шт.

29

D93751

SET OF 2 KEYS

KEY - for Yale padlock, if used

1шт.

30

R29555

KEY

KEY - for Master padlock only, if used

1шт.

31

E135081

PLUG

PLUG - hex, 26 mm x 1.5, included with transmission

1шт.

32

3133948R1

O-RING,2mm Thk x 23mm ID

O-RING - plug, included with transmission

1шт.
