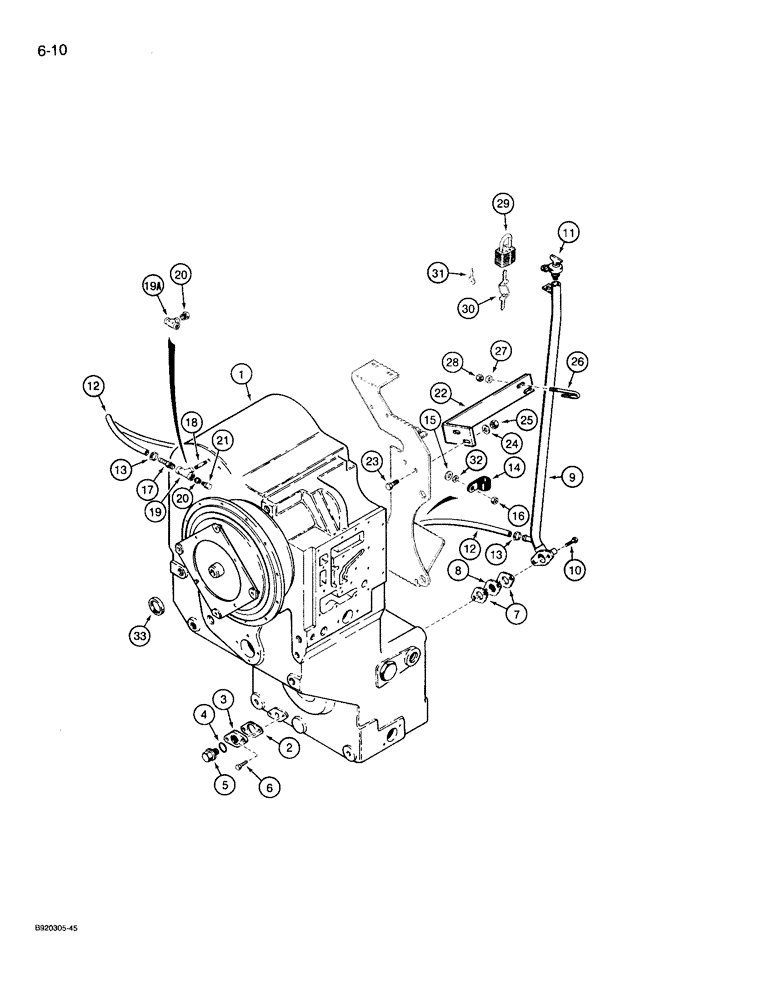

Запчасти Case 721 (6-10) - TRANSMISSION FILL TUBE MOUNTING AND SIGHT GAUGE, PRIOR TO P.I.N. JAK0022758 (06) - POWER TRAIN

1

L127201

TRANSMISSION

TRANSMISSION ASSEMBLY - includes Refs. 1 - 4 on Figures 6-2 and 6-4, Refs. 2 - 6 and 21 on this Figure and all Refs. on Figures 6-14 - 6-42 and 7-2, Serial Range: -JAK0022534

1шт.

1

LR127201

REMAN-TRANSMISSION

Remanufactured Transmission,721, Prior to PIN JAK0022534, Model Number 4WG180, Stock Number 4644 004 207

1шт.

1

LC127201

CORE-TRANSMISSION

Return Number

1шт.

1

L129353

TRANSMISSION

TRANSMISSION ASSEMBLY - includes Refs. 1 - 4 on Figures 6-2 and 6-4, Refs. 12 - 16 and 31 on this Figure, and all Refs. on Figures 6-14 - 6-42 and 7-2, Serial Range: JAK0022534-JAK0022757

1шт.

1

LR129353

REMAN-TRANSMISSION

Remanufactured Transmission, 721, Between PIN JAK0022534 & JAK0022757, Model Number 4WG180, Stock Number 4644 004 220

1шт.

1

LC129353

CORE-TRANSMISSION

Return Number

1шт.

2

S300507

GASKET

GASKET - cover plate, included with transmission

1шт.

Part of seal and gasket kit, P/N S300588 and Figure 6-2 -6-42 and 7-2

1шт.

3

S300509

COVER

PLATE - cover, included with transmission

1шт.

4

717183R1

O-RING,2mm Thk x 19mm ID, 70 Duro

O-RING - plug, included with transmission

1шт.

Part of seal and gasket kit, P/N S300588 and Figure 6-2 -6-42 and 7-2

1шт.

5

E135080

PLUG

PLUG - hex, cover plate, included with transmission

1шт.

6

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

BOLT - hex, 8 - 1.25 x 16 mm, included with transmission

2шт.

7

S300507

GASKET

GASKET - fill tube

2шт.

8

E135229

FILTER SCREEN

SCREEN - fill tube

1шт.

9

L127394

TUBE,31.75 mm OD

TUBE - fill, transmission

1шт.

10

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

BOLT, Hex, M8 x 50, 10.9

2шт.

11

L126498

PLUG

CAP - fill tube

1шт.

12

L127400

HOSE

HOSE - 12.7 x 19.1 x 1590 mm long, plastic, sight gauge

1шт.

13

214-251

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP - hose, No. 6, worm drive, type F

2шт.

14

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

CLAMP - medium closed, 3/4 inch diameter

4шт.

15

S95569

WASHER

WASHER - flat, 9/16 x 1-3/8 x 1/8 inch, hardened

4шт.

16

131-217

LOCK NUT

NUT - hex, self-locking, 3/8 inch NC, grade 8

4шт.

17

217-123

FITTING,1/2" Hose Barb x 3/8" Male NPTF

ADAPTER - straight, 1/2 barb end x 3/8 inch PT

1шт.

18

221-103

FITTING

NIPPLE - straight, 1/8 x 1 inch

1шт.

19

221-434

TEE,3/8" NPT x 1/8 NPT Br

TEE - pipe, 3/8 x 3/8 x 1/8 inch, if used

1шт.

19a

221-423

TEE,3/8" NPT

TEE - pipe, 3/8 inch, if used

1шт.

20

221-85

REDUCER,Hex, 3/8" x 1/8" NPT

REDUCER - pipe, 3/8 male x 1/8 inch female

1-2шт.

21

N14704

BREATHER

BREATHER - sight gauge, included with transmission

1шт.

22

L127371

SUPPORT

BRACKET - fill tube, attaches to parking brake cable bracket

1шт.

23

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

BOLT - hex, 3/8 NC x 1-1/2 inch

2шт.

24

496-21041

WASHER,13/32" x 13/16" x .089", HDN

WASHER, 13/32" x 13/16" x .089", HDN

2шт.

25

131-217

LOCK NUT

NUT - hex, self-locking, 3/8 inch NC, grade 8

2шт.

26

L58066

BOLT

U-BOLT - fill tube

1шт.

27

496-41034

WASHER,.344" x 1" x .098", HDN

WASHER, .344" x 1" x .098", HDN

2шт.

28

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.

29

D93753

PADLOCK

PADLOCK - includes keys, if used, Includes: Ref. 30 and 31

1шт.

30

D93751

SET OF 2 KEYS

KEY - for Yale padlock only, if used

1шт.

31

R29555

KEY

KEY - for Master padlock only, if used

1шт.

32

495-21044

WASHER,3/8"

WASHER, (flat, 7/16 x 1 x 5/64 inch), if used 3/8"

4шт.

33

L128777

SPACER

SPACER - flex plate, L127201 transmission

1шт.

Must be changed when changing torque converter. If they have the original flywheel and the new torque converter sub to L128868. If they have a new flywheel and old torque converter sub to L128876. Original flywheel and original torque converter use L128777 as noted.

1шт.

S300588

SEAL PACKAGE

KIT - seal and gasket, Includes Refs. 2 and 4 Figure 6-4 - 6-42 and 7-2

1шт.
