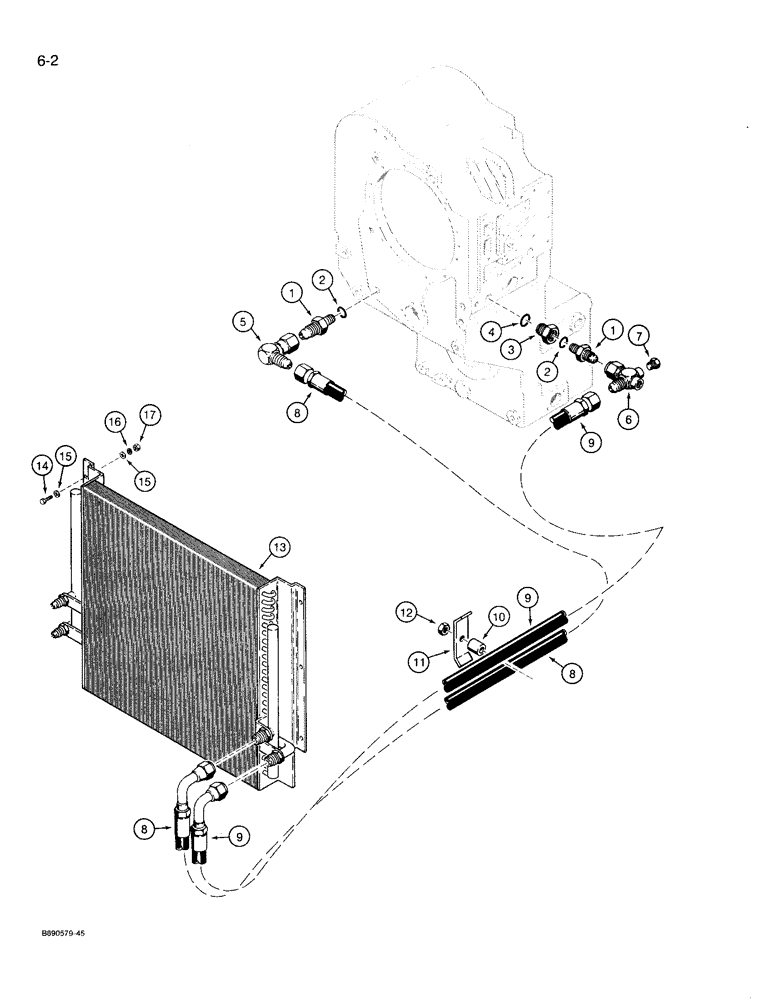

Запчасти Case 721 (6-02) - TRANSMISSION HYDRAULIC CIRCUIT, WITH RECTANGULAR (AIR COOLED) OIL COOLER, PRIOR TO P.I.N. JAK0022432 (06) - POWER TRAIN

1

S300453

FITTING

ADAPTER - hydraulic, included with L127201 transmission

2шт.

2

S300450

O-RING,23.3mm ID x 2.4mm Width

- reducer, included with L127201 transmission

2шт.

Part of seal and gasket kit, P/N S300588 and Figure 6-2 -6-42 and 7-2

1шт.

3

S300452

RESTRICTOR

REDUCER - hydraulic, included with L127201 transmission

1шт.

4

81284C1

O-RING,2.2mm Thk x 33mm ID

- adapter, included with L127201 transmission

1шт.

Part of seal and gasket kit, P/N S300588 and Figure 6-2 -6-42 and 7-2

1шт.

5

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 deg, 1-5/16-12 inch flare x swivel flare

1шт.

6

L125441

FITTING

CROSS - hydraulic

1шт.

7

221-844

PLUG,Hex Soc, 1/2"-14

- hex socket, 1/2 inch PT

1шт.

8

L127574

HOSE ASSY.

2 flow 2540 mm long, Serial Range: cooler-transmission

1шт.

9

L127401

HOSE ASSY.

HOSE - 2300 mm long, Serial Range: transmission-cooler

1шт.

10

E62230

SPACER

- hose, clamp to rear chassis

3шт.

11

R34049

CLAMP

- hose to rear chassis

3шт.

12

131-217

LOCK NUT

NUT - hex, self-locking, 3/8 inch NC, grade 8

3шт.

13

A184382

COOLER ASSY.

COOLER - transmission oil, air cooled

1шт.

14

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

6шт.

15

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

12шт.

16

492-11038

LOCK WASHER,3/8"

6шт.

17

425-106

NUT,3/8"-16, Cl 5

6шт.

S300588

SEAL PACKAGE

KIT gasket, Includes: Refs. 2 and 4 and Fig. 6-2 - 6-42 and 7-2

1шт.
