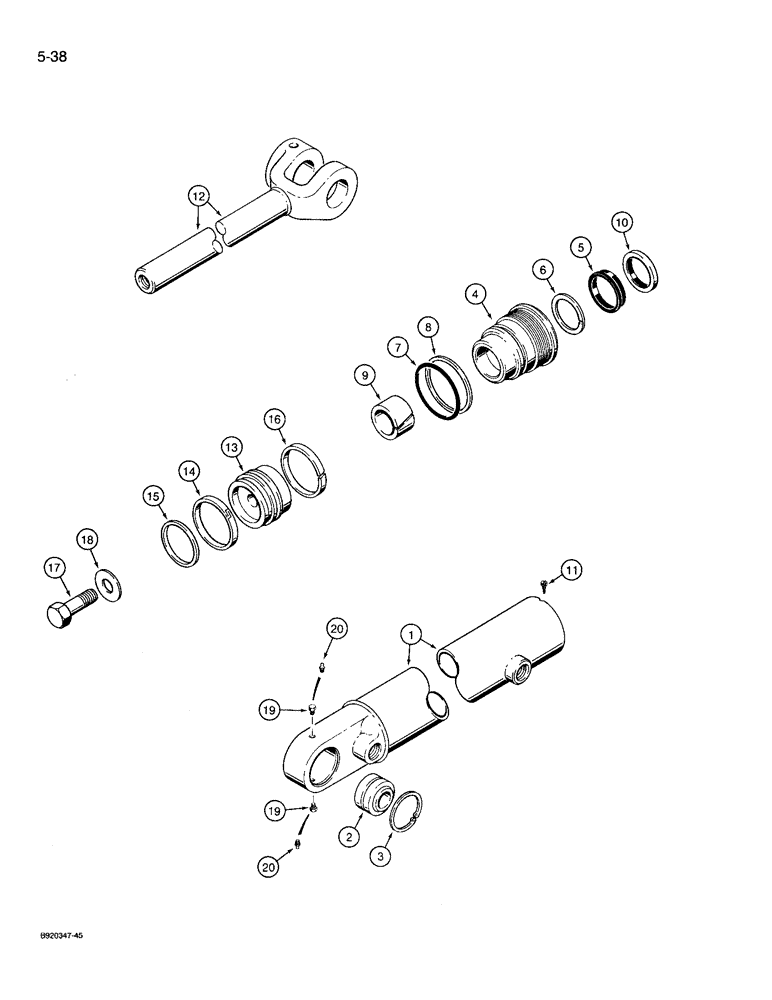

Запчасти Case 721 (5-38) - STEERING CYLINDER (05) - STEERING

1976862C1

STEERING CYLINDER

CYLINDER ASSEMBLY - 3 inch (76 mm) ID x 17-1/2 inch (443 mm) stroke, steering, see Figure 5-14 or 5-16 for mounting, Includes: Ref. 1 - 19

2шт.

84311413R

REMAN-HYD CYLINDER

721, Reman for New P/N 1976862C1

2шт.

84311413C

CORE-HYD CYLINDER

Return Number

1шт.

1

G110477

TUBE,76.1 mm ID x 674.2 mm L

- cylinder, Includes: Ref. 2 and 3

1шт.

2

L12570

BUSHING

- self-aligning

1шт.

3

L12571

SNAP RING,#218, 2.321", Int, Spiral

RING - snap, bushing

2шт.

G109885

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

G107922

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

U-CUP SEAL - piston rod, wide

1шт.

Part of seal kit P/N G110049

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes. The rod and piston in 1345991C1 have 2-1/2 inch joint threads and may not be serviced individually. To service either the rod or the piston in 1345991C1 order Ref. 13, 1343555C1 rod and item 18, 1980351C2 piston. All of the other item numbers will service both cylinders.

1шт.

5

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

U-CUP SEAL - piston rod, service option - extreme heat or cold

1шт.

6

G109094

SEAL,44.07mm ID x 57.33mm OD x 3.05mm Thk

- piston rod, narrow

1шт.

Part of seal kit P/N G110049

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes. The rod and piston in 1345991C1 have 2-1/2 inch joint threads and may not be serviced individually. To service either the rod or the piston in 1345991C1 order Ref. 13, 1343555C1 rod and item 18, 1980351C2 piston. All of the other item numbers will service both cylinders.

1шт.

7

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.

Part of seal kit P/N G110049

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes. The rod and piston in 1345991C1 have 2-1/2 inch joint threads and may not be serviced individually. To service either the rod or the piston in 1345991C1 order Ref. 13, 1343555C1 rod and item 18, 1980351C2 piston. All of the other item numbers will service both cylinders.

1шт.

8

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

- backup, gland O-ring

1шт.

Part of seal kit P/N G110049

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes. The rod and piston in 1345991C1 have 2-1/2 inch joint threads and may not be serviced individually. To service either the rod or the piston in 1345991C1 order Ref. 13, 1343555C1 rod and item 18, 1980351C2 piston. All of the other item numbers will service both cylinders.

1шт.

9

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

- center

1шт.

Part of seal kit P/N G110049

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes. The rod and piston in 1345991C1 have 2-1/2 inch joint threads and may not be serviced individually. To service either the rod or the piston in 1345991C1 order Ref. 13, 1343555C1 rod and item 18, 1980351C2 piston. All of the other item numbers will service both cylinders.

1шт.

10

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - rod, outer

1шт.

Part of seal kit P/N G110049

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes. The rod and piston in 1345991C1 have 2-1/2 inch joint threads and may not be serviced individually. To service either the rod or the piston in 1345991C1 order Ref. 13, 1343555C1 rod and item 18, 1980351C2 piston. All of the other item numbers will service both cylinders.

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

12

1976863C1

PISTON ROD

44.5 mm (1-3/4 in)

1шт.

13

G107277

PISTON

- cylinder

1шт.

14

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

Part of seal kit P/N G110049

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes. The rod and piston in 1345991C1 have 2-1/2 inch joint threads and may not be serviced individually. To service either the rod or the piston in 1345991C1 order Ref. 13, 1343555C1 rod and item 18, 1980351C2 piston. All of the other item numbers will service both cylinders.

1шт.

15

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING - piston

1шт.

Part of seal kit P/N G110049

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes. The rod and piston in 1345991C1 have 2-1/2 inch joint threads and may not be serviced individually. To service either the rod or the piston in 1345991C1 order Ref. 13, 1343555C1 rod and item 18, 1980351C2 piston. All of the other item numbers will service both cylinders.

1шт.

16

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear

1шт.

Part of seal kit P/N G110049

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes. The rod and piston in 1345991C1 have 2-1/2 inch joint threads and may not be serviced individually. To service either the rod or the piston in 1345991C1 order Ref. 13, 1343555C1 rod and item 18, 1980351C2 piston. All of the other item numbers will service both cylinders.

1шт.

17

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex, 3/4 NF x 2-1/2 inch, grade 8

1шт.

18

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

- hardened

1шт.

19

221-1661

PLUG

- hex, 1/8 inch PT, replace with Ref. 20, 219-1 fitting

2шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, extra short, 1/8 inch PT, not supplied with cylinder, order separately

2шт.

G110049

KIT

- seal, Includes Refs. 5, 6, 7, 8, 9, 10, 14, 15 and 16

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes. The rod and piston in 1345991C1 have 2-1/2 inch joint threads and may not be serviced individually. To service either the rod or the piston in 1345991C1 order Ref. 13, 1343555C1 rod and item 18, 1980351C2 piston. All of the other item numbers will service both cylinders.

1шт.
