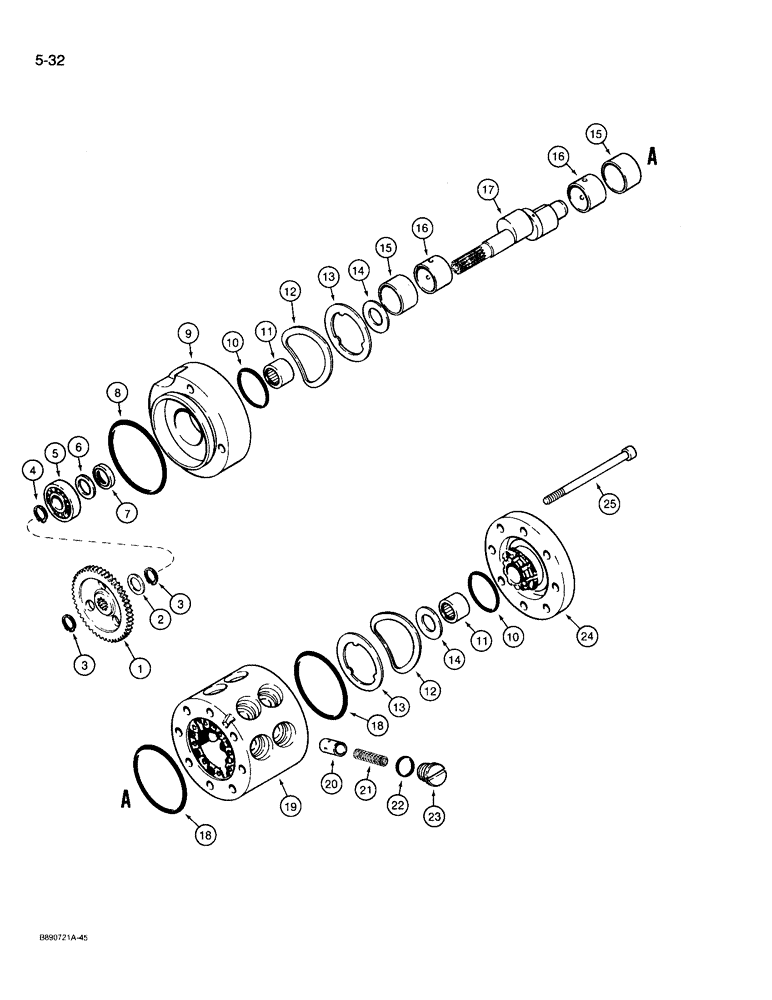

Запчасти Case 721 (5-32) - AUXILIARY STEERING PUMP (05) - STEERING

L117961

PUMP, HYDRAULIC

PUMP ASSEMBLY - auxiliary steering, ground drive, see Figure 5-24 for mounting, Includes: Ref. 1 - 25

1шт.

1

S300675

GEAR

- spur

1шт.

2

S300787

DISC

- adjusting, gear, 20 x 28 x 0.2 mm

1шт.

2

S300785

DISC

- adjusting, gear, 20 x 28 x 0.3 mm

1шт.

2

S300784

DISC

- adjusting, gear, 20 x 28 x 0.5 mm

1шт.

2

S300786

SHIM,20mm ID x 28mm OD x 1mm Thk

DISC - adjusting, gear, 20 x 28 x 1 mm

1шт.

3

S300677

CIRCLIP

RING - snap, spur gear

2шт.

4

S300653

CIRCLIP

RING - snap

1шт.

5

S300654

BEARING, BALL

BEARING - ball

1шт.

6

S300655

WASHER

RING - backup

1шт.

7

S300656

SEAL

SEAL - shaft

1шт.

Part of seal kit P/N S300680

1шт.

8

S300657

O-RING,101mm ID x 3mm Width

- 101 mm x 3 mm wide, 70 duro

1шт.

Part of seal kit P/N S300680

1шт.

9

S300658

FLANGE

COVER - port end

1шт.

10

S300659

O-RING,53mm ID x 2mm Width

- 53 mm x 2 mm wide, 90 duro

2шт.

Part of seal kit P/N S300680

1шт.

11

S300660

BEARING, NEEDLE,22 mm ID x 30 mm OD x 20 mm

BEARING - needle

2шт.

12

S300661

RUBBER WASHER

WASHER - wave

2шт.

13

S300662

WASHER

- spring

2шт.

14

S300663

WASHER

- flat

2шт.

15

S300664

SLEEVE

- bushing

2шт.

16

S300665

SLEEVE

BUSHING - shaft

2шт.

17

S300666

CRANKSHAFT

SHAFT - pump

1шт.

18

S300667

O-RING,86mm ID x 3mm Width

- 86 mm x 3 mm wide, 90 duro

2шт.

Part of seal kit P/N S300680

1шт.

19

S300668

BODY

HOUSING - pump

1шт.

20

S300669

PISTON

- pump

16шт.

21

S300670

COMPRESSION SPRING

SPRING - compression, piston

16шт.

22

S300671

O-RING,22mm ID x 2.5mm Width

- 22 mm x 2.5 mm wide, 90 duro

16шт.

Part of seal kit P/N S300680

1шт.

23

S300672

PLUG

- slotted

16шт.

24

S300673

FLANGE

COVER - drive shaft end

1шт.

25

S300674

SCREW

BOLT - Ferry head

1шт.

S300680

SEAL KIT

KIT - seal, Includes Refs. 7, 8, 10,18 and 22

1шт.
