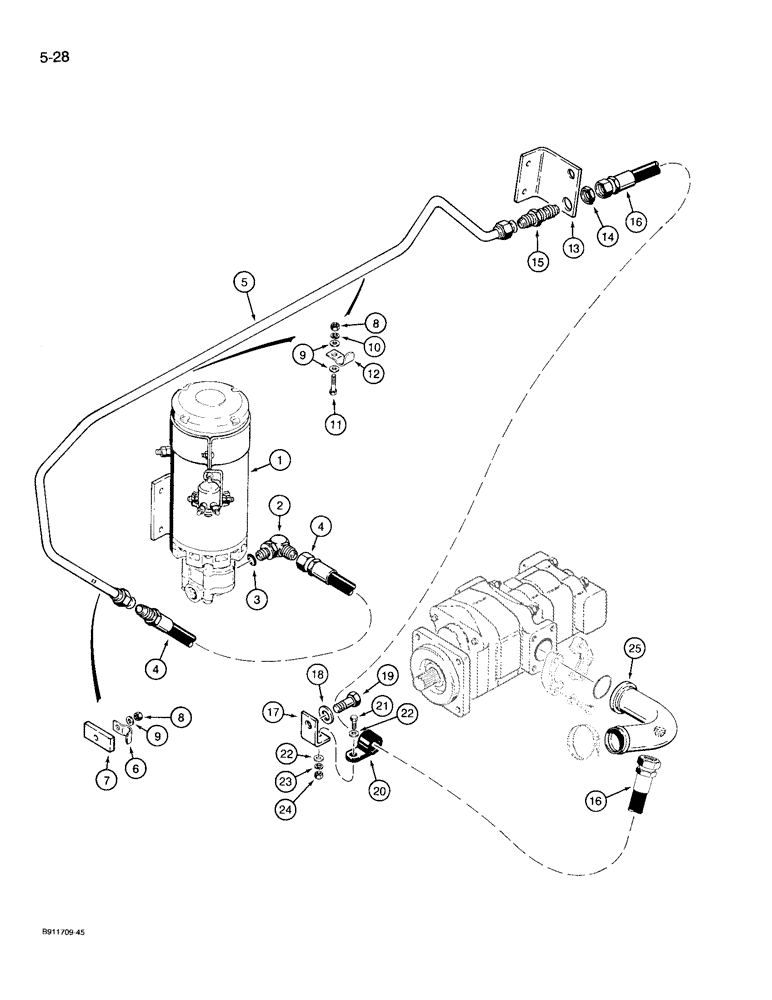

Запчасти Case 721 (5-28) - AUXILIARY STEERING HYDRAULIC CIRCUIT, AUXILIARY STEERING PUMP TO HYD STEERING PUMP INLET SECTION (05) - STEERING

1

L116118

PUMP, HYDRAULIC

PUMP ASSEMBLY - auxiliary steering, parts list Figure 5-30

1шт.

2

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 1-1/16-12 flare x 7/8-14 inch adj O-ring, Includes: Ref. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

L129964

HOSE ASSY.

HOSE - 610 mm long, suction, auxiliary steering pump to suction tube

1шт.

5

L129954

TUBE,19.04 mm OD

- suction, auxiliary steering pump to hydraulic pump inlet

1шт.

6

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- P, 3/4 inch diameter, suction tube, see Figure 5-26, Ref. 27, for pressure tube clamp

1шт.

7

L119350

SPACER

- clamp, to rear frame

1шт.

8

425-106

NUT,3/8"-16, Cl 5

3шт.

9

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

5шт.

10

492-11038

LOCK WASHER,3/8"

2шт.

11

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

12

D41165

CLAMP,19mm ID, 10.5mm Bolt Hole, J Type

- suction tube

2шт.

13

L129949

BRACKET

- tube mounting, front

1шт.

14

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, lock, bulkhead, 1-1/16 inch NF

1шт.

15

218-676

FITTING,Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

FIT STL BULKHD .75MJ .75MJ

1шт.

16

L128506

HOSE ASSY.

HOSE - 1105 mm long, suction, to hydraulic pump inlet tube

1шт.

17

101634A1

SUPPORT

BRACKET - mounting, suction hose

1шт.

18

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

- flat, 22 x 37 x 4 mm

1шт.

19

614-20040

BOLT,Hex, M20 x 2.5 x 40mm, Cl 8.8, Full Thd

- hex, 20 - 2.5 x 40 mm

1шт.

20

R14098

CLAMP,1 1/4", Insul, 5/16" Bolt

- suction hose

1шт.

21

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

1шт.

22

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

23

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

24

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

25

L125583

TUBE

- inlet, hydraulic pump shown on Figure 8-4, Ref. 10, use on models with auxiliary steering

1шт.
