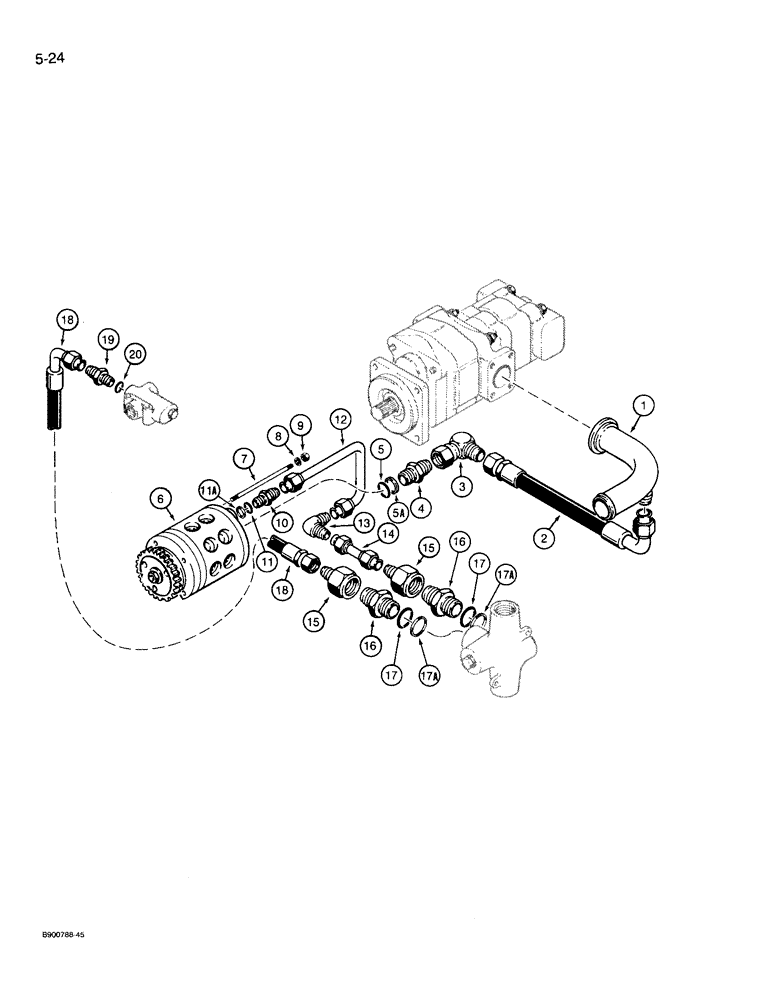

Запчасти Case 721 (5-24) - AUXILIARY STEERING HYDRAULIC CIRCUIT, AUXILIARY STEERING PUMP TO FLOW CONTROL VALVE (05) - STEERING

1

L125583

TUBE

- inlet, steering pump, use on models with auxiliary steering

1шт.

2

L125585

HOSE

- 440 mm long, steering pump to auxiliary pump

1шт.

3

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 deg, 1-5/16-12 inch flare x swivel flare

1шт.

4

L123803

FITTING

ADAPTER - 1-5/16-12 flare x 33 mm str thread, Includes: Ref. 5 and 5A

1шт.

5

238-6122

O-RING,0.103" Thk x 1.11" ID, -122, Cl 6, 90 Duro

1шт.

5a

S301045

OIL SEAL

RING - backup, O-ring

1шт.

6

L117961

PUMP, HYDRAULIC

PUMP - auxiliary, ground drive, parts list Figure 5-32

1шт.

7

L125628

STUD

- 8 x 180 mm long, auxiliary pump

4шт.

8

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

9

825-1408

NUT,M8, Cl 8

- hex, 8 mm - 1.25, Grade 10

4шт.

10

L123801

FITTING

ADAPTER - 1-1/16-12 flare x 22 mm str thread, Includes: Ref. 11 and 11A

1шт.

11

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

11a

S301044

OIL SEAL

RING - backup, O-ring

1шт.

12

L125614

PIPE,19.04 mm OD x 213, 131 mm L

TUBE - auxiliary pump to stand by valve, at pump

1шт.

13

218-476

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC

- 90 degree, 1-1/16-12 flare

1шт.

14

L125778

TUBE,19.04 mm OD x 128 mm L

- auxiliary pump to stand by valve, at valve

1шт.

15

218-727

REDUCER,37 Degree, 1 5/8"-12, Fem x 1 1/16"-12 Male

ADAPTER - reducing, 1-5/8-12 str thr x 1-1/16-12 inch flare, Includes: Ref. 17 and 17A

2шт.

16

L125575

FITTING

ADAPTER - 1-5/8-12 inch flare x 42 mm str thread, Includes: Ref. 17 and 17A

2шт.

17

238-6128

O-RING,0.103" Thk x 1.487" ID, -128, Cl 6, 90 Duro

1шт.

17a

S301047

BACK-UP RING,1.728" ID x 1.961" OD x 0.8"

RING - backup, O-ring

1шт.

18

L127368

HOSE

- 700 mm long, stand by valve to flow control valve

1шт.

19

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR, HYD., , Adapter, Straight, Includes: Ref. 20 1 1/16"-12, 37º x 7/8"-14, O-Ring

1шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.
