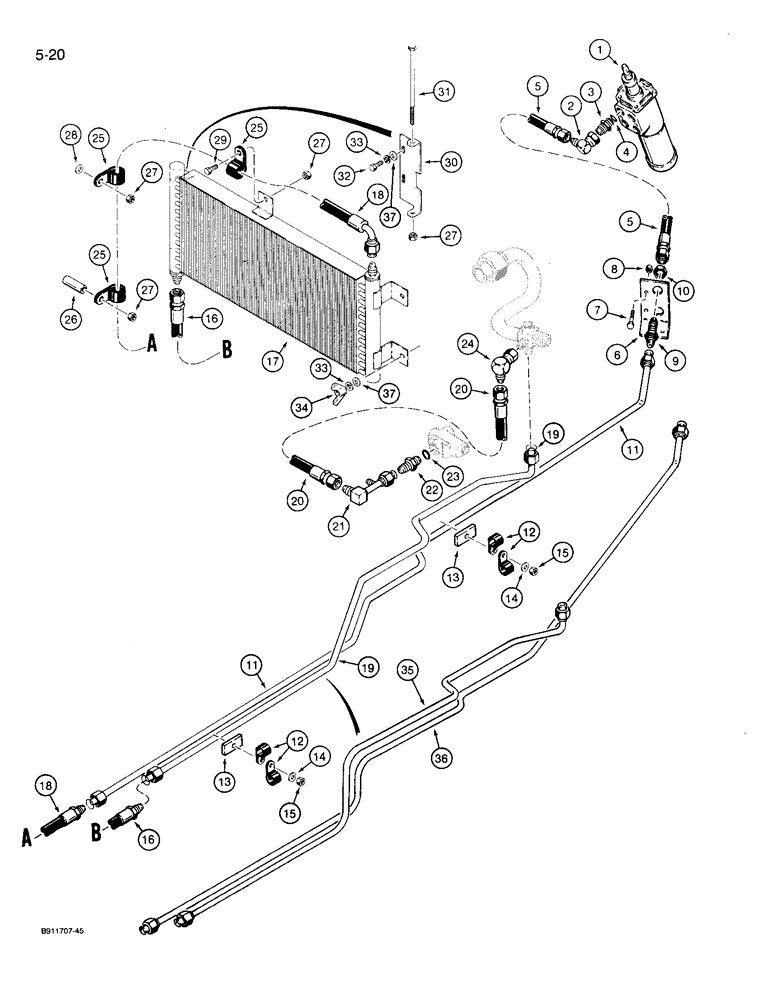

Запчасти Case 721 (5-20) - STEERING HYDRAULIC CIRCUIT, RETURN LINE AND COOLER, P.I.N. JAK0022432 & AFTER (05) - STEERING

1

REF

INSTRUCTION

VALVE ASSEMBLY - control, steering, for correct assembly and components, see Figures 5-6 - 5-10

1шт.

2

218-5378

ELBOW,90 Degree, 7/8"-14, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 deg, 7/8-14 flare x 3/4-16 inch swivel flare

1шт.

3

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 4

1шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

5

L124237

HOSE

- 600 mm long, return, at control valve

1шт.

6

L119131

SUPPORT

BRACKET - mounting, hose

1шт.

7

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

8

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

2шт.

9

218-675

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

FIT STL BULKHD .625MJ .625MJ

1шт.

10

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, Blkhd, 7/8"-14

1шт.

11

L128107

TUBE,19.04 mm OD

- return, hose at steering control valve to hose at oil cooler, Serial Range: JAK0022432-JAK0022758

1шт.

12

T50103

CLAMP

- hydraulic oil tubes to rear frame

4шт.

13

L119350

SPACER

- clamp

2шт.

14

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

15

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

2шт.

16

L128077

HOSE ASSY.

HOSE - 1000 mm, supply, at oil cooler

1шт.

17

L127883

OIL COOLER

COOLER - oil, hydraulic

1шт.

18

L128078

HOSE ASSY.

HOSE - 2142 mm long, return, at oil cooler

1шт.

19

L128105

TUBE,19.04 mm OD

- hose at oil cooler to tube to filter, Serial Range: JAK0022432-JAK0022758

1шт.

20

L127370

HOSE

- 550 mm long, filter tube to tube at flow control valve

1шт.

21

L127310

PIPE,19.04 mm OD x 80 mm L

TUBE - supply, at flow control valve

1шт.

22

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR, HYD., , Adapter, Straight, Includes: Ref. 23 1 1/16"-12, 37º x 7/8"-14, O-Ring

1шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

24

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 degree swivel, 7/8-14 inch flare x swivel flare

1шт.

25

R56681

CLAMP

- P-type, hose

3шт.

26

L59005

SPACER

- lower clamp

1шт.

27

131-217

LOCK NUT

NUT - hex, self-locking, 3/8 inch NC, grade 8

4шт.

28

S95569

WASHER

- flat, 9/16 x 1-3/8 x 9/64 inch, hardened

1шт.

29

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

30

L128083

SUPPORT

BRACKET - hinge, oil cooler

1шт.

31

115-218

BOLT,Hex, 3/8" - 16 x 10", Gr 2

1шт.

32

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

33

492-11038

LOCK WASHER,3/8"

4шт.

34

L128214

THUMB SCREW

SCREW - thumb, 3/8 NC x 1 inch, special, Serial Range: -JAK0022758

2шт.

35

L129938

TUBE

TUBE - hose at oil cooler to tube to filter, Serial Range: -JAK0022758

1шт.

36

L129936

TUBE,19.04 mm OD

- return, hose at steering control valve to hose at oil cooler

1шт.

37

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.
