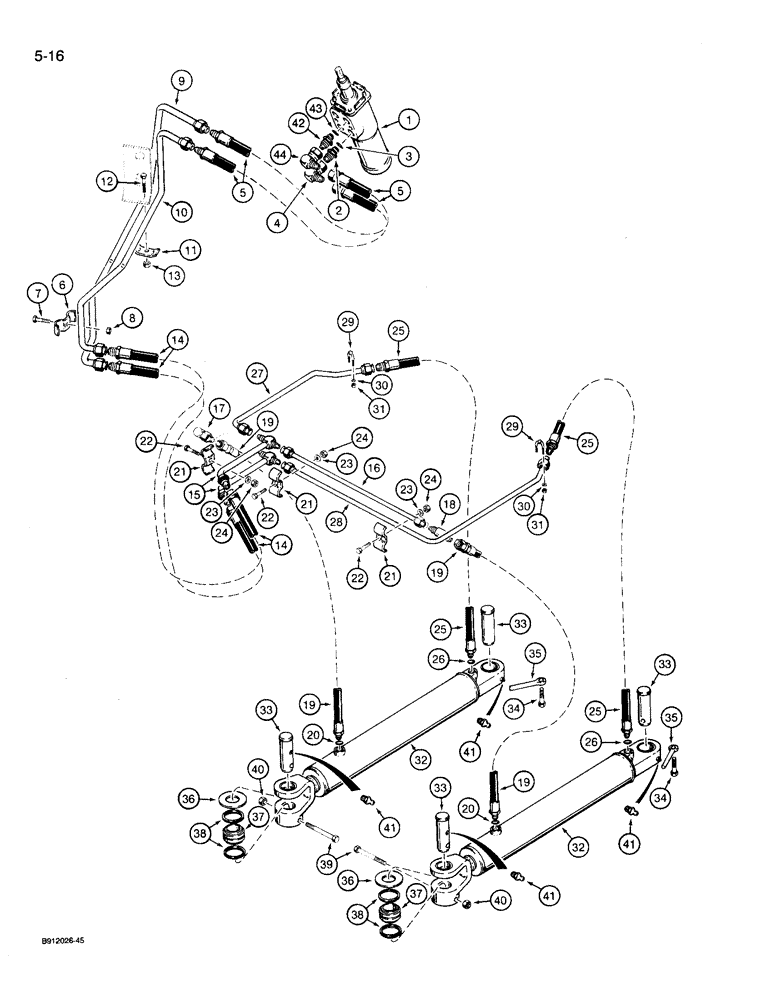

Запчасти Case 721 (5-16) - STEERING HYDRAULIC CIRCUIT, STEERING CONTROL VALVE TO CYLINDERS, P.I.N. JAK0022432 & AFTER (05) - STEERING

1

REF

INSTRUCTION

VALVE ASSEMBLY - control, steering, for correct assembly and components, see Figure 5-6 through 5-10

1шт.

2

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., straight, 7/8-14 flare x 3/4-16 inch O-ring boss, Incl. Ref. 3

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 degree swivel, 7/8-14 inch flare x swivel

1шт.

5

L124234

HOSE

- 650 mm long, control, Serial Range: valve-tube

2шт.

6

S45067

CLAMP

- tube

1шт.

7

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

1шт.

8

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

1шт.

9

L127350

PIPE,15.87 mm OD

TUBE - steering, left-hand, from hose at control valve lower port

1шт.

10

L127348

PIPE,15.87 mm OD x 491, 299 mm L

TUBE - steering, right-hand, from hose at control valve upper port

1шт.

11

A13622

PLATE, LOCKING

CLAMP - tube

1шт.

12

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

1шт.

13

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

1шт.

14

L124234

HOSE

- 650 mm long, Serial Range: tube-tube

2шт.

15

L118907

PIPE ASSY.,15.87 mm OD

TUBE - steering, with tee

2шт.

16

L127794

PIPE,12.7 mm OD x 520 mm L

TUBE - steering, crossover

1шт.

17

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel flare

1шт.

18

218-474

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male JIC

1шт.

19

L127792

HOSE

- 586 mm long, tube to cylinder, rod end, Includes: Ref. 20

2шт.

21

L72801

HOSE CLAMP

CLAMP - tube

3шт.

22

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

3шт.

23

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

3шт.

24

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

3шт.

25

L124236

HOSE

- 700 mm long, tube to cylinder, closed end, Includes: Ref. 26

2шт.

27

L118924

PIPE,12.7 mm OD

TUBE - steering, upper left-hand, to closed end of cylinder

1шт.

28

L128335

PIPE,12.7 mm OD x 552, 496 mm L

TUBE - steering, lower right-hand, to closed end of cylinder

1шт.

29

L78949

U-BOLT

- 5/16 inch NC

2шт.

30

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

4шт.

31

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

4шт.

32

1976862C1

STEERING CYLINDER

CYLINDER ASSEMBLY - steering, parts list Figure 5-38

2шт.

84311413R

REMAN-HYD CYLINDER

721 P.I.N. JAK0022432 & AFTER; Reman for New P/N '1976862C1

2шт.

84311413C

CORE-HYD CYLINDER

Return Number

1шт.

33

L126418

PIN,38mm OD x 111mm L

- cylinder mounting

4шт.

34

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

2шт.

35

R17756

ROD,12.7mm OD x 109.54mm L

- retaining, mounting pin

2шт.

36

S109722

WASHER,38.1mm ID x 76.2mm OD x 3.17mm Thk

- flat, 1-1/2 x 3 x 1/8 inch, nylon

2шт.

37

G109152

SPHERICAL BEARING,34.92mm ID x 55.56mm OD x 30.15mm W

- self-aligning

2шт.

38

L12571

SNAP RING,#218, 2.321", Int, Spiral

RING - retaining, bushing

4шт.

39

326-864

BOLT,Hex, 1/2" - 13 x 4", Gr 8

2шт.

40

131-1402

THIN NUT,1/2"-13, GB, Thin

NUT, LOCK, 1/2"-13, GB, Thin

2шт.

41

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch, two replace existing plugs on closed end of cylinders

4шт.

42

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 43

1шт.

43

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

44

218-5378

ELBOW,90 Degree, 7/8"-14, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 deg, 7/8-14 flare x 3/4-16 inch swivel flare

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

26

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
