Запчасти Case 621 (6-14) - TRANSMISSION ASSEMBLY, FORWARD AND LOW CLUTCHES, P.I.N. JAK0021701 THRU JAK0027511 (06) - POWER TRAIN

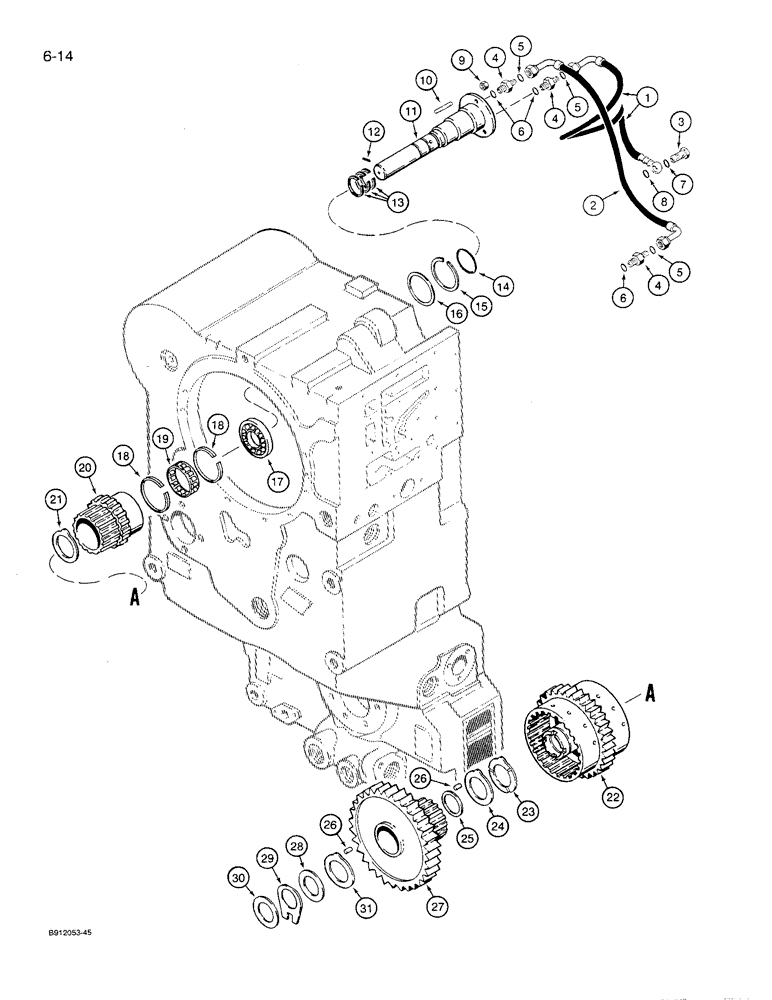

Схема запчастей Case 621 - (6-14) - TRANSMISSION ASSEMBLY, FORWARD AND LOW CLUTCHES, P.I.N. JAK0021701 THRU JAK0027511 (06) - POWER TRAIN
5
6
7
29
1
3
5
14
13
4
26
18
11
20
10
27
30
25
28
24
5
26
17
2
19
15
4
4
21
18
16
6
12
31
22
9
23
6

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - see Figure 6-04 for correct assembly and parts list information, Includes: Ref. 1 - 31

1шт.

1

103704A1

HYDRAULIC HOSE,420.00 mm

- Low clutch 420.00 mm

1шт.

2

103700A1

HYDRAULIC HOSE,15.88mm ID x 355mm L

- 355 mm long, Forward Clutch

1шт.

3

S301962

BANJO BOLT

BOLT - hex hollow, low clutch, valve end

1шт.

4

S301961

ADAPTER

- straight

3шт.

5

S300587

O-RING,12.4mm ID x 1.78mm Width

- adapter, hose end (Replaces S300586) O-RING - ADAPTER, HOSE SIDE.

3шт.

6

S300586

O-RING,2.4mm Thk x 13.3mm ID, 70 Duro

- adapter, transmission end (Replaces S300587)0-RING - ADAPTER, TRANS. SIDE.

3шт.

7

S301617

O-RING,2mm Thk x 13mm ID

O-RING - adapter and hollow bolt, outer

1шт.

8

S301616

GASKET,2.5mm Thk x 18mm ID

O-RING - hollow bolt, inner

1шт.

9

825-1408

NUT,M8, Cl 8

3шт.

10

E135084

STUD

- 8 mm - 1.25 x 18 mm

3шт.

11

S301530

CENTER AXLE

AXLE ASSEMBLY - forward and low clutches, Includes: Ref. 12

1шт.

12

E135023

DOWEL

PIN - roll, 2.5 mm OD X 10 mm

4шт.

13

E135145

RING,35.2mm ID x 38mm OD x 2mm Thk

- piston, axle shaft

3шт.

14

S300460

O-RING,3mm Thk x 49mm ID

- axle

1шт.

15

K24302

RING, SNAP

RING - snap, internal

1шт.

16

S301544

SHIM,0.3mm Thk

(M60 ID x 75 OD) 0.3mm Thk

1шт.

16

S301545

SHIM,0.5mm Thk

(M60 ID x 75 OD) 0.5mm Thk

1шт.

16

S301546

SHIM,1mm Thk

(M60 ID x 75 OD) 1mm Thk

1шт.

16

103597A1

SHIM

- 60 mm ID x 75 mm OD x 1.2 mm thick

1шт.

16

S301547

SHIM,1.5mm Thk

(M60 ID x 75 OD) 1.5mm Thk

1шт.

16

S301548

SHIM,1.6mm Thk

(M60 ID x 75 OD) 1.6mm Thk

1шт.

17

L33515

BALL BEARING

BEARING - ball, 45 mm ID x 75 mm OD x 16 mm

1шт.

18

S301542

RING, SNAP

RING - retaining, internal, bearing

2шт.

19

S301541

ROLLER CAGE BEARING,45mm ID x 65mm OD x 28mm

BEARING - roller

1шт.

20

S301543

PINION

GEAR - low

1шт.

21

E135117

WASHER, THRUST

WASHER - thrust, tabbed, low gear

1шт.

22

NSS

NOT SOLD SEPARAT

PACK - clutch, low and forward, see Figure 6-48 for components

1шт.

23

E135122

WASHER, THRUST

WASHER - thrust

1шт.

24

S301531

WASHER

- thrust, tabbed, forward gear, internal

1шт.

25

S301534

SPACER

- roller bearing

1шт.

26

S301533

BEARING SET

KIT - roller bearing, set of two

1шт.

27

S301532

PINION

GEAR - forward

1шт.

28

E135120

WASHER

- thrust, 35 mm ID x 70 mm OD x 1.5 mm

1шт.

29

E135203

WASHER, THRUST

WASHER - thrust, notched

1шт.

30

E135097

SHIM,35.1mm ID x 70mm OD x 0.2mm Thk

(35.1 mm ID x 70 mm OD) 0.2mm Thk

1шт.

30

E135098

SHIM,0.4mm Thk

(35 mm ID x 70 mm OD) 0.4mm Thk

1шт.

30

E135099

SHIM,0.6mm Thk

(35 mm ID x 70 mm OD) 0.6mm Thk

1шт.

30

E135100

SHIM,35.1mm ID x 70mm OD x 0.8mm Thk

(35 mm ID x 70 mm OD) 0.8mm Thk

1шт.

30

E135101

SHIM,1.0mm Thk

(35 mm ID x 70 mm OD) 1.0mm Thk

1шт.

30

E135102

SHIM,1.2mm Thk

(35 mm ID x 70 mm OD) 1.2mm Thk

1шт.

30

E135103

SHIM,1.4mm Thk

(35 mm ID x 70 mm OD) 1.4mm Thk

1шт.

30

E135104

SHIM,1.6mm Thk

(35 mm ID x 70 mm OD) 1.6mm Thk

1шт.

30

E135105

SHIM,1.8mm Thk

(35 mm ID x 70 mm OD) 1.8mm Thk

1шт.

30

E135106

SHIM,2.0mm Thk

(35 mm ID x 70 mm OD) 2.0mm Thk

1шт.

30

E135107

SHIM,2.2mm Thk

(35 mm ID x 70 mm OD) 2.2mm Thk

1шт.

30

E135108

SHIM,2.4mm Thk

(35 mm ID x 70 mm OD) 2.4mm Thk

1шт.

30

E135109

SHIM,2.6mm Thk

(35 mm ID x 70 mm OD) 2.6mm Thk

1шт.

30

E135110

SHIM,2.8mm Thk

(35 mm ID x 70 mm OD) 2.8mm Thk

1шт.

31

103591A1

THRUST WASHER

- thrust, tabbed, forward gear, external

1шт.

Выбрано товаров: 50
