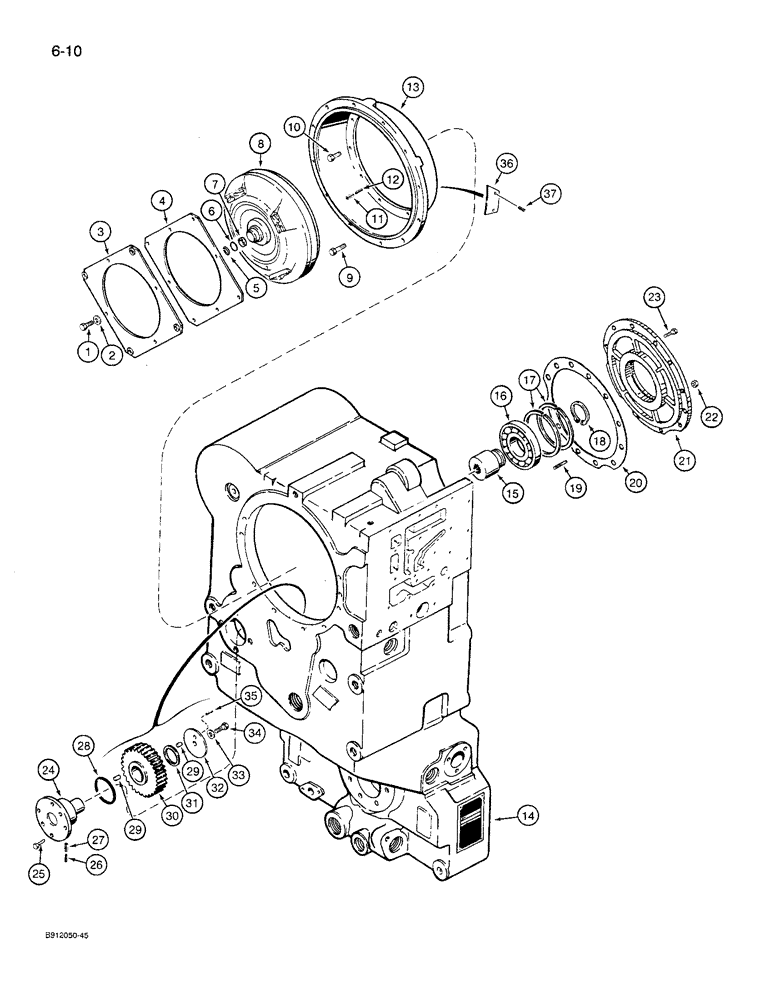

Запчасти Case 621 (6-10) - TRANSMISSION ASSEMBLY, IDLER GEAR, CONVERTER AND COVER, P.I.N. JAK0021701 THRU JAK0027511 (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - see Figure 6-04 for correct assembly and parts list information, Includes: Ref. 1 - 37

1шт.

1

111981A1

BOLT

- hex, 10 - 1.5 x 20 mm, class 10.9 (Replaces 826-10020)18mm Bolt.

4шт.

2

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

4шт.

3

S301486

DIAPHRAGM

PLATE - flex, converter, stepped

1шт.

S301486 plate has (4) round pads 11/2/98 DB

1шт.

4

S301485

DIAPHRAGM

PLATE - flex, converter, plain

1шт.

S301485 Plate has (4) triangular shaped pads

1шт.

5

S301489

RING, SNAP

RING - retaining, converter

1шт.

6

S301488

O-RING,3mm Thk x 18mm ID

- 25 mm ID x 3 mm, converter

1шт.

7

S301487

WASHER

- sealing, converter

1шт.

8

S301492

TORQ CONV IMPELLER

CONVERTER - transmission

1шт.

9

962-10030

HEX SOC SCREW,M10 x 30mm, Cl 10.9

BOLT - hex, 10 - 1.5 x 30 mm, class 10.9

3шт.

10

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

9шт.

11

E135027

PIN, SPLIT (COTTER)

PIN - roll, 10 mm OD x 28 mm

2шт.

12

E135025

PIN

- roll, 6 mm OD x 28 mm

2шт.

13

S301484

BELL HOUSING

HOUSING - converter

1шт.

14

S301520

HOUSING

- transmission

1шт.

15

S301589

DRIVE

CONNECTOR - shaft

1шт.

16

E135046

BALL BEARING

BEARING - cover

1шт.

17

E135018

RING, SNAP

RING - snap, internal, 85 mm x 1.7 thick

2шт.

18

933283R1

SNAP RING,M45, Ext

RING - snap, external, 45 mm x 1.75 thick

1шт.

19

E135084

STUD

- 8 mm - 1.25 x 18 mm

3шт.

20

S301591

GASKET

- cover

1шт.

21

S301590

COVER

- flange, pump

1шт.

22

825-1408

NUT,M8, Cl 8

3шт.

23

613-8018

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

- hex, 8 - 1.25 x 18 mm

9шт.

24

188317A1

PIN

AXLE - stub, idler gear (Replaces S301527)

1шт.

25

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

BOLT hex, full threads, 8 - 1.25 x 20 mm, class 10.9

4шт.

26

E135022

DOWEL

PIN - roll, 1.5 mm OD x 10 mm

1шт.

27

E135023

DOWEL

PIN - roll, 2.5 mm OD x 10 mm

1шт.

28

S300455

O-RING,3mm Thk x 57mm ID

- stub axle

1шт.

29

S301528

ROLLER BEARING,35 mm ID x 55 mm OD x 28 mm

KIT - needle bearing, set of two

1шт.

30

S301529

PINION

GEAR - idler

1шт.

31

E135003

PISTON RING

RING - idler gear

1шт.

32

S300456

BEARING WASHER

COVER - bearing

1шт.

33

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

1шт.

34

826-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, 10 - 1.5 x 20 mm, Class 10.9

1шт.

35

E135024

DOWEL

PIN - roll, 4 mm OD x 10 mm

1шт.

36

S301490

LARGE PLATE

PLATE - converter

1шт.

37

S301491

STUD

- grooved

2шт.
