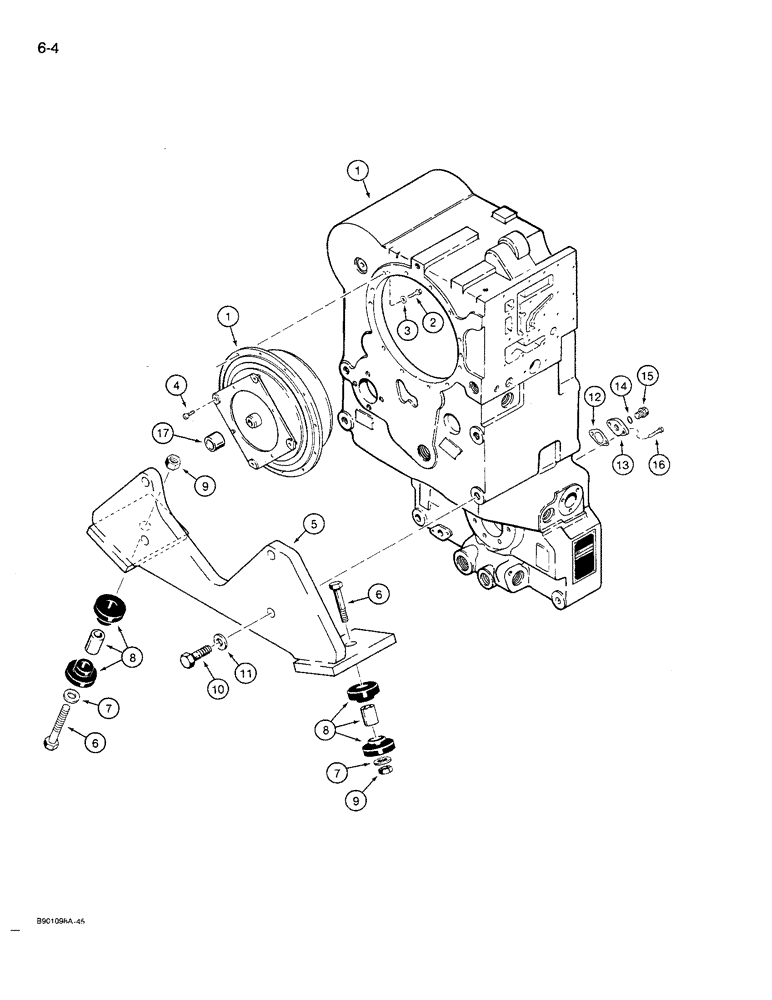

Запчасти Case 621 (6-04) - TRANSMISSION MOUNTING (06) - POWER TRAIN

1

L127731

TRANSMISSION

TRANSMISSION ASSEMBLY - includes items 2 and 3 on Figure 6-02, items 12 - 16 on this Figure, items 4 and 25 on Figure 6-06, and all items on Figures 6-08 - 6-26, 6-48 - 6-52, and 7-02 JAK0021701, Serial Range: -JAK0027511

1шт.

1

LR127731

REMAN-TRANSMISSION

Remanufactured Transmission 621, Between JAK0021701 & JAK0027511, Model Number 4WG150, Stock Number 4642 054 014

1шт.

1

LC127731

CORE-TRANSMISSION

Return Part Number

1шт.

1

L129926

TRANSMISSION

TRANSMISSION ASSEMBLY - not shown, includes items 2 and 3 on Figure 6-02, items 12 - 16 on this Figure, items 4 and 25 on Figure 6-07, and all items on Figures 6-28 - 6-52 JAK0027512 to

1шт.

1

LR129926

REMAN-TRANSMISSION

Remanufactured Transmission 621B, Prior to P.I.N. JEE0052701, Model Number 4WG150, Stock Number 4642 054 018

1шт.

1

LC129926

CORE-TRANSMISSION

Return Part Number

1шт.

2

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

BOLT - hex, 10 mm - 1.5 x 40 mm

12шт.

3

496-21041

WASHER,13/32" x 13/16" x .089", HDN

WASHER - flat, 13/32 x 13/16 x 3/32", hardened

12шт.

4

L128789

HEX SOC SCREW,M10 x 1.5 x 50mm, Cl 8.8, Nylon Pellet

BOLT - hex socket, special, flywheel to transmission mounting

4шт.

5

L128183

SUPPORT

BRACKET - transmission mounting

1шт.

6

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

BOLT - hex, 3/4 NC x 4-1/2 inch

2шт.

7

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

WASHER, , Flat 13/16" x 1 1/2" x .134", HDN

2шт.

8

L111929

SHOCK ABSORBER

MOUNT - transmission, three piece

2шт.

9

131-450

NUT,3/4"-10

NUT - heavy hex, self-locking, 3/4 inch NC

2шт.

10

826-20055

BOLT,Hex, M20 x 2.5 x 55mm, Cl 10.9, Full Thd

BOLT - hex, 20 - 2.5 x 55 mm, class 10.9

4шт.

11

L79179

WASHER

WASHER - flat, 13/16 x 1-15/32 x 5/32, hardened

4шт.

12

S300507

GASKET

GASKET - cover plate, included with transmission

1шт.

13

S300509

COVER

PLATE - cover, included with transmission

1шт.

14

717183R1

O-RING,2mm Thk x 19mm ID, 70 Duro

SEAL - cover plate, included with transmission

1шт.

15

E135080

PLUG

PLUG - hex, cover plate, included with transmission

1шт.

16

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

BOLT - hex, 8 - 1.25 x 16 mm, included with transmission

2шт.

17

L129822

SPACER

SPACER -, Serial Range: converter-flywheel

1шт.
