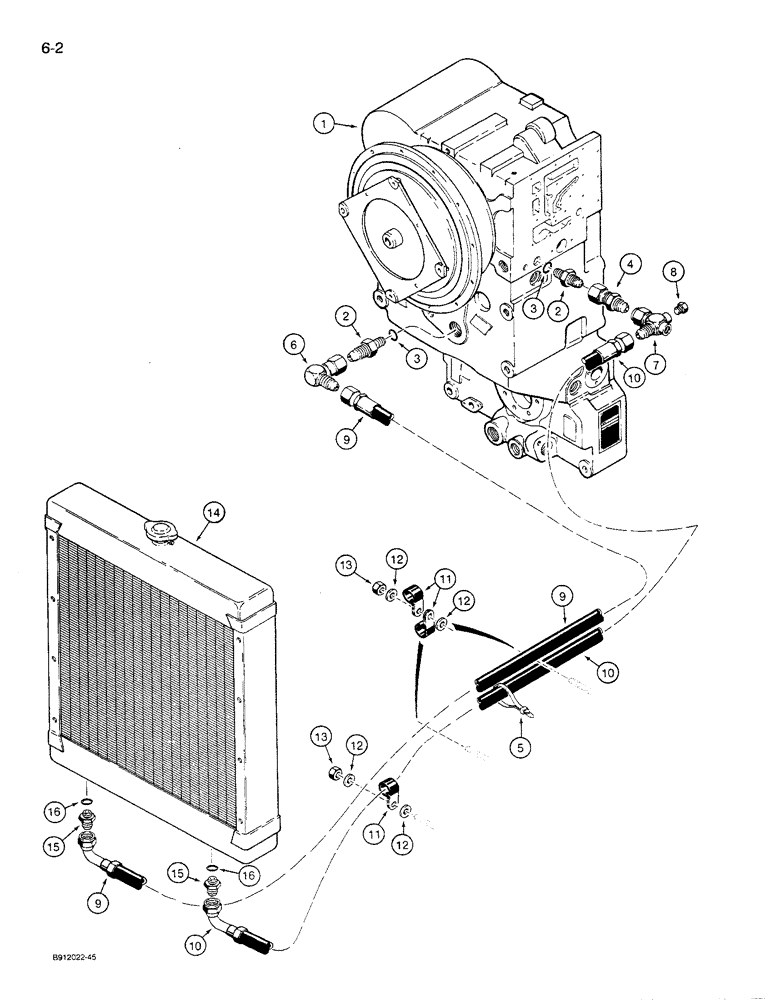

Запчасти Case 621 (6-02) - TRANSMISSION HYDRAULIC CIRCUIT (06) - POWER TRAIN

1

L127731

TRANSMISSION

TRANSMISSION ASSEMBLY - includes items 2 and 3 on this page, items 12 - 16 on Figure 6-04, items 4 and 25 on Figure 6-06, and all items on Figures 6-08 - 6-26, 6-48 - 6-52, and 7-02 JAK0021701, Serial Range: -JAK0027511

1шт.

See Figure 6-04 for the return number or remanufactured part number for L127731 transmission.

1шт.

1

LR127731

REMAN-TRANSMISSION

Remanufactured Transmission; 621, Between JAK0021701 & JAK0027511, Model Number 4WG150, Stock Number 4642 054 014

1шт.

1

LC127731

CORE-TRANSMISSION

Return Part Number

1шт.

1a

L129926

TRANSMISSION

TRANSMISSION ASSEMBLY - not shown, includes items 2 and 3 on this page, items 12 - 16 on Figure 6-04, items 4 and 25 on Figure 6-06, and all items on Figures 6-28 - 6-52 JAK0027512 to

1шт.

1a

LR129926

REMAN-TRANSMISSION

Remanufactured Transmission;621B, Prior to P.I.N. JEE0052701, Model Number 4WG150, Stock Number 4642 054 018

1шт.

1a

LC129926

CORE-TRANSMISSION

Return Part Number

1шт.

2

S300453

FITTING

ADAPTER - hydraulic, included with transmission

2шт.

3

S300450

O-RING,23.3mm ID x 2.4mm Width

O-RING - adapter, included with transmission

2шт.

4

L128814

TUBE,25.4 mm OD x 67 mm L

TUBE - transmission to cooler return hose, if used

1шт.

Ref #4 - Eliminated. Ref #7 now connects to Ref #2 04/22/96

1шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP STRAP - tie, 15 inch, nylon

1шт.

6

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

ELBOW - 90 degree, 1-5/16-12 inch flare x swivel flare

1шт.

7

L125441

FITTING

CROSS - hydraulic

1шт.

8

221-1664

PLUG

PLUG - hex, 1/2 inch PT

1шт.

9

L128598

HOSE

HOSE - 2465 mm long, Serial Range: cooler-transmission

1шт.

10

L128090

HOSE

HOSE - 1700 mm long, Serial Range: transmission-cooler

1шт.

11

S86530

CLAMP

CLAMP - hose, rear chassis

5шт.

12

495-21044

WASHER,3/8"

WASHER, (flat, 7/16 x 1 x 5/64 inch) 3/8"

6шт.

13

131-217

LOCK NUT

NUT - hex, self-locking, 3/8 inch NC, grade 8

3шт.

14

A190619

RADIATOR

RADIATOR - includes transmission oil cooler

1шт.

15

218-5046

HYD CONNECTOR,1-5/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, 1-5/16-12 flare x 7/8-14 inch O-ring, Includes: Ref. 16

2шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O-RING, 10-1, 90 Duro, .755" ID x .097" Thk

1шт.
