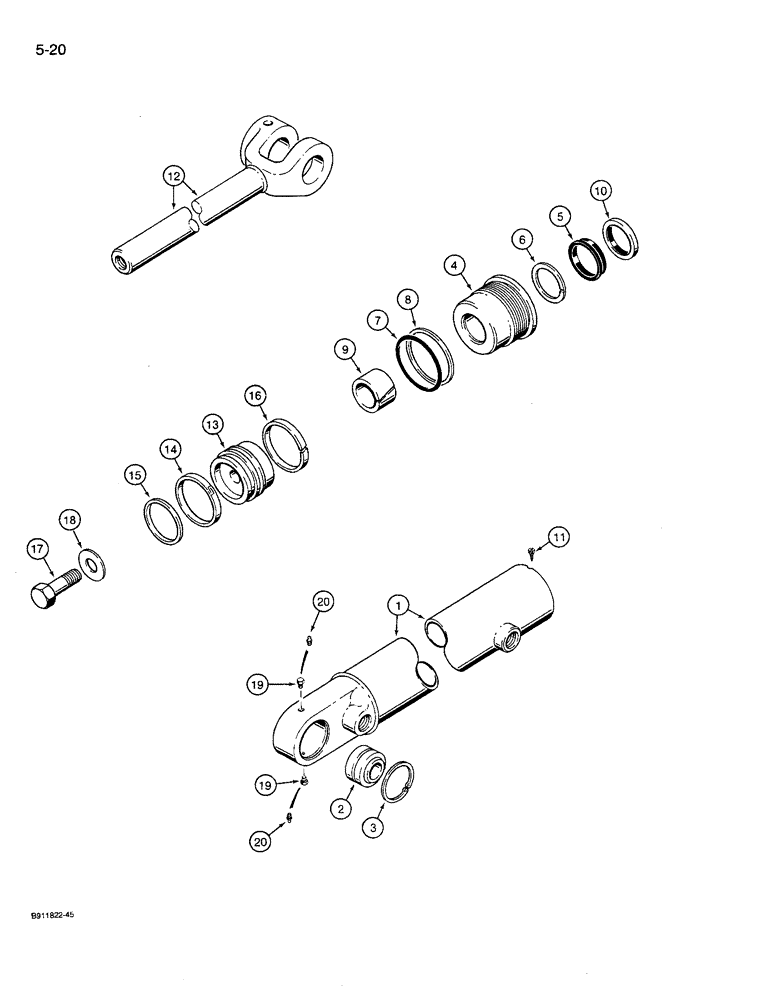

Запчасти Case 621 (5-20) - STEERING CYLINDER (05) - STEERING

1976862C1

STEERING CYLINDER

CYLINDER ASSEMBLY - 76 mm ID x 443 mm stroke, steering, Includes: Ref. 1 -19

2шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

84311413R

REMAN-HYD CYLINDER

621 (S/N JAK0021701 & AFTER) P.I.N. JAK0021701 AND AFTER ; Reman for New P/N '1976862C1

2шт.

84311413C

CORE-HYD CYLINDER

Return Number

1шт.

1

G110477

TUBE,76.1 mm ID x 674.2 mm L

- cylinder, Includes: Ref. 2 & 3

1шт.

2

L12570

BUSHING

- self-aligning

1шт.

3

L12571

SNAP RING,#218, 2.321", Int, Spiral

RING - snap, bushing

2шт.

G109885

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

G107922

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

U-CUP SEAL - piston rod, wide

1шт.

Part of P/N G110049 Seal Kit

1шт.

5

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

U-CUP SEAL - piston rod, service option - extreme heat or cold

1шт.

6

G109094

SEAL,44.07mm ID x 57.33mm OD x 3.05mm Thk

- piston rod, narrow

1шт.

Part of P/N G110049 Seal Kit

1шт.

7

22409R1

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

- 2-5/8 ID x 1/8 inch wide, 70 duro., nitrile

1шт.

Part of P/N G110049 Seal Kit

1шт.

8

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

- backup, gland O-ring

1шт.

Part of P/N G110049 Seal Kit

1шт.

9

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

- center

1шт.

Part of P/N G110049 Seal Kit

1шт.

10

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - rod, outer

1шт.

Part of P/N G110049 Seal Kit

1шт.

11

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - hex, slotted, self-tapping, No. 8 NC x 3/8 inch

1шт.

12

1976863C1

PISTON ROD

44.5 mm (1-3/4 in)

1шт.

13

G107277

PISTON

- cylinder

1шт.

14

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

Part of P/N G110049 Seal Kit

1шт.

15

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING - piston

1шт.

Part of P/N G110049 Seal Kit

1шт.

16

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear

1шт.

Part of P/N G110049 Seal Kit

1шт.

17

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex, 3/4 NF x 2-1/2 inch, grade 8

1шт.

18

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

- hardened

1шт.

19

221-1661

PLUG

- hex, 1/8 inch PT, replace with Ref. 20, 219-1 fitting

2шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, extra short, 1/8 inch PT, not supplied with cylinder, order separately

2шт.

G110049

KIT

- seal, Includes: Ref. 5 (P/N G107922), 6 - 10 and 14 - 16

1шт.
