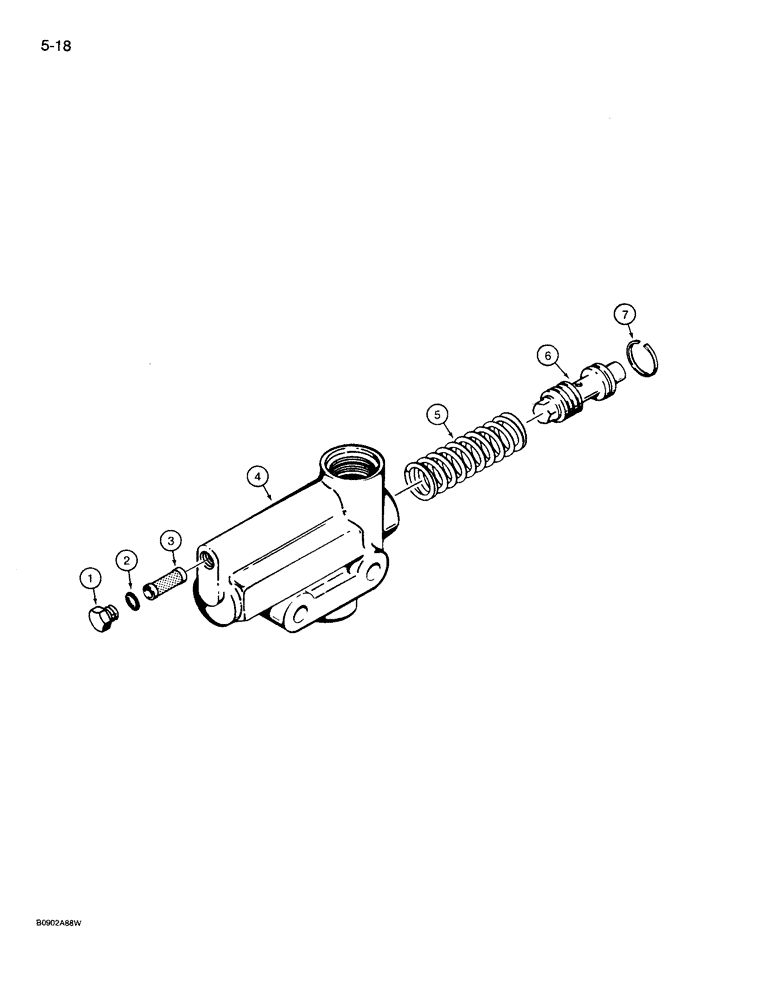

Запчасти Case 621 (5-18) - FLOW CONTROL VALVE, L48888 (05) - STEERING

L48888

FLOW DIVIDER

VALVE ASSEMBLY - hydraulic, flow control, see Figure 5-08 for mounting, Includes: Ref. 1 - 7

1шт.

1

218-5152

PLUG,Hex Hd, 3/8"-24 ORB

1шт.

2

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, plug

1шт.

3

L33959

FILTER, ENGINE OIL

SCREEN - filter

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

5

D46216

SPRING

- spool

1шт.

6

L35277

SPOOL

- flow control valve

1шт.

7

D46214

CIRCLIP

RING - retaining, spool

1шт.
